High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the high-pressure fuel pump tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install new components as needed.

Courtesy of FORD MOTOR COMPANY
Remove the RH front wheel and tire. Refer to: Wheel and Tire .
Remove the retainers and position aside the RH fender splash shield aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump cam lobe is at BDC.

Courtesy of FORD MOTOR COMPANY
Position the fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH front wheel and tire. Refer to: Wheel and Tire .
NOTE: Align the notch on the high-pressure fuel pump tappet with the groove in the high-pressure fuel pump drive unit bore.

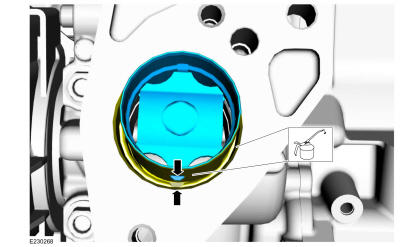

Apply clean engine oil to the high-pressure fuel pump drive unit bore and the drive lobe and the high-pressure fuel pump tappet. Install the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY
Install a new high-pressure fuel pump O-ring seal. Lubricate the new O-ring seal with clean engine oil.

Courtesy of FORD MOTOR COMPANY
NOTE: Install new high-pressure fuel pump bolts.

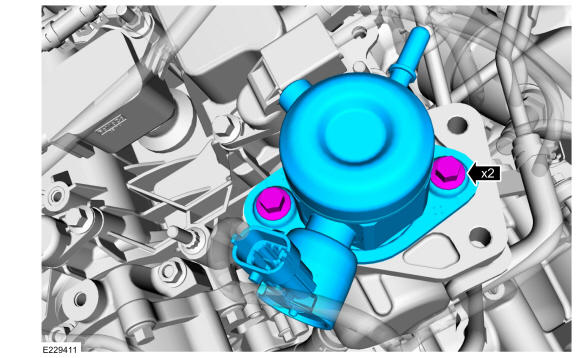

Install the high-pressure fuel pump and the new high-pressure fuel pump bolts. Alternately tighten each bolt 1/2 of a turn until seated and then tighten in the following 2 stages.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 55 °

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump bracket, then install and tighten the high-pressure fuel pump bracket bolts.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the harness retainers to the high-pressure fuel pump bracket.

Courtesy of FORD MOTOR COMPANY
Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new high-pressure fuel tube is installed.

Install the new high-pressure fuel tube and then tighten the high pressure fuel tube flare nuts only finger tight at this stage.

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel tube nut and bolt only tighten finger tight at this stage.

Courtesy of FORD MOTOR COMPANY
NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas below.

Courtesy of FORD MOTOR COMPANY

Tighten the high pressure fuel tube flare nuts in the following 2 stages.

Torque:

Stage 1: 133 lb.in (15 Nm)

Stage 2: 30 °

Courtesy of FORD MOTOR COMPANY
1. Tighten the high-pressure fuel tube nut.
  Torque: 150 lb.in (17 Nm)
2. Tighten the high-pressure fuel tube bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the evaporative emission canister purge valve, then install and tighten the evaporative emission canister purge valve bracket nuts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

Install the high-pressure fuel pump noise insulator.

Courtesy of FORD MOTOR COMPANY
Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Attach the brake vacuum line retainer.

Courtesy of FORD MOTOR COMPANY
Install the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
Courtesy of FORD MOTOR COMPANY
Connect the battery. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
Install the cowl panel. Refer to: Cowl Panel .
