High-Pressure Fuel Pump Drive Unit: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .

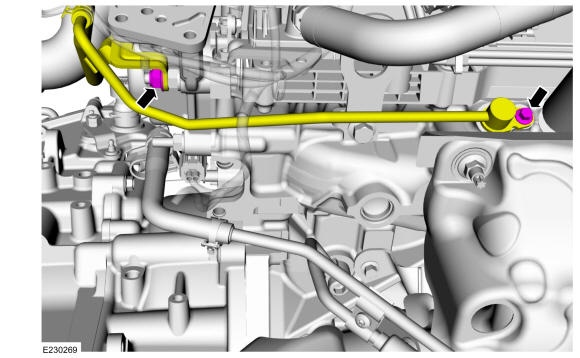

- Remove the coolant tube nut, the coolant tube bolt and then position the coolant tube out of the way.

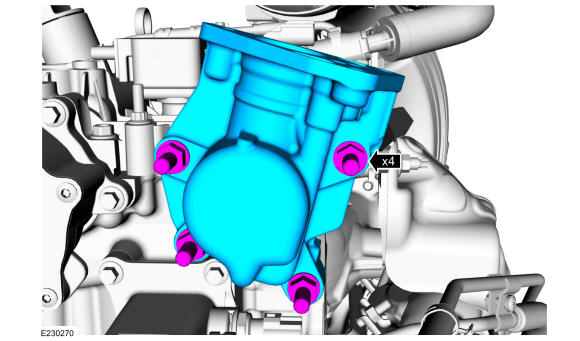

- Remove the high-pressure fuel pump drive unit studbolts and then remove the high-pressure fuel pump drive unit.
