Fuel Charging and Controls - Component Location
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

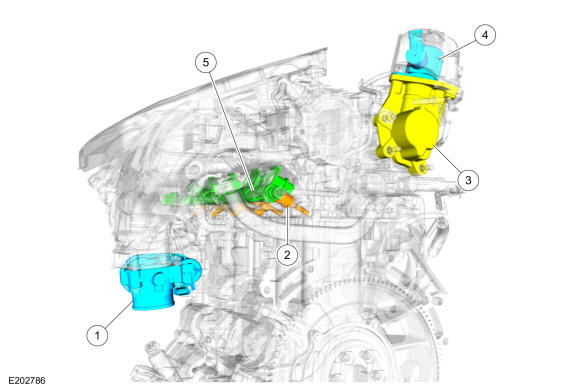

2.0L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Throttle Body (TB) |
| 2 |
Fuel injector |
| 3 |
High-pressure fuel pump drive unit |
| 4 |
High-pressure fuel pump |
| 5 |
Fuel rail |
FPDM
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FPDM
Comments:
The FPDM is located beneath the 2nd row right rear seat cushion, under the carpet. |
