Transfer Case Vent: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NUETRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
  2. Disconnect the PTU (Power Transfer Unit) vent hose and position it aside.
    GFD229451Courtesy of FORD MOTOR COMPANY

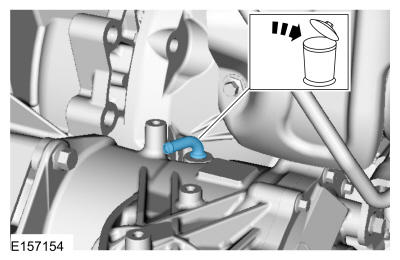

  3. Remove and discard the PTU vent.
GFD229452Courtesy of FORD MOTOR COMPANY
