Transfer Case Rear Seal: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

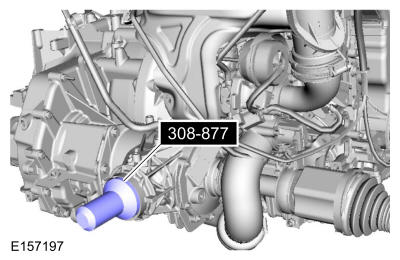

- Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

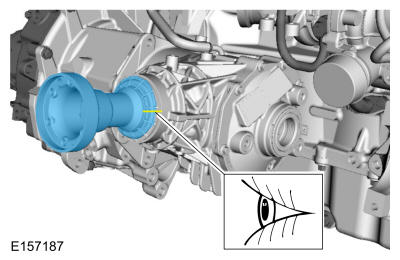

- Install the seal deflector on the output flange using a press.
-
NOTE: Refer to the rotational torque previously recorded with the Nm (lb-in) torque wrench. Tighten the pinion nut in small increments until it is within 0.3 Nm (3 lb-in) of the reference measurement.

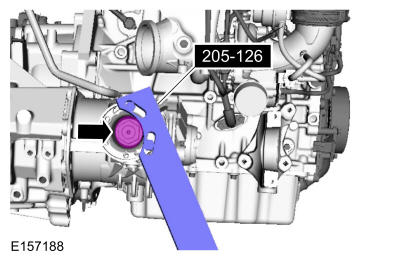

Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
- Refer to: Transfer Case .
