Transfer Case Input Shaft Seal LH: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

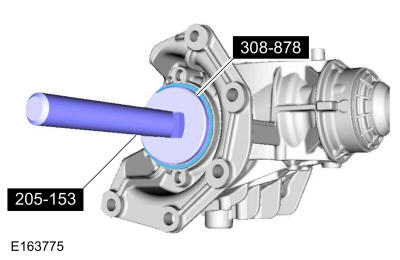

- Using the special tools, install a new LH input shaft seal. Use Special Service Tool: 308-878 Installer, Input Seal., 205-153 (T80T-4000-W) Handle.
- Install the input shaft.

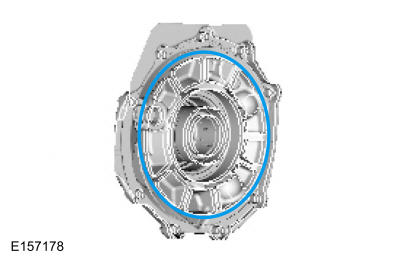

- Install a new PTU cover O-ring seal.

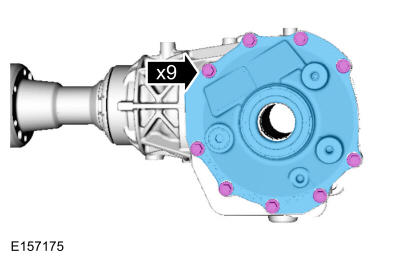

- Install the PTU cover and the new PTU cover bolts.
Torque:
Stage 1: 115 lb.in (13 Nm)
Stage 2: 45 °
NOTE: Hand start bolts for the first three threads to ensure cross-threading does not occur. - Install the PTU/transfer case. REFER to: Transfer Case .
