Intermediate Shaft Seal: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The seal is correctly installed if it is flush with the transfer case cover.

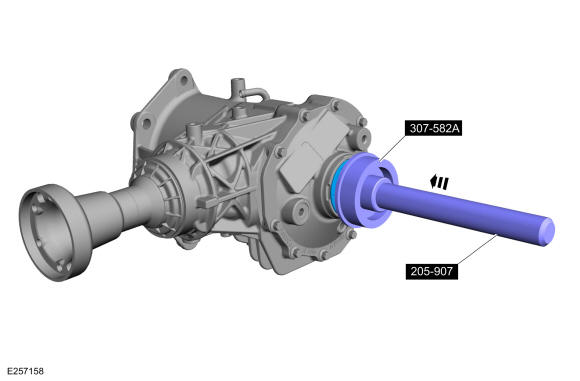

Using the special tools, install a new intermediate shaft seal. Use Special Service Tool: 307-582A Cover Axle Seal Installer., 205-907 Handle, 32 Driver.
- Install the RH halfshaft. REFER to: Front Halfshaft RH .
