Transfer Case Draining and Filling
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
Draining
- Follow the health and safety precautions. REFER to: Health and Safety Precautions .
- With the vehicle in N, position it on a hoist. REFER to: Jacking and Lifting - Overview .
- If equipped. Remove the retainers and the underbody shield.

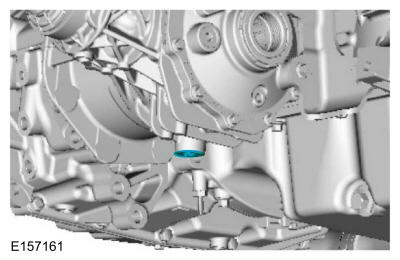

- Remove the PTU drain plug.
- Install the PTU drain plug.
Torque: 33 lb.ft (45 Nm)
Filling
- Remove the PTU fill plug.
- Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
- Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)
- If equipped. Install the underbody shield.
