Evaporative Emission Canister: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Vehicles with FWD. Refer to: Battery Disconnect and Connect .
  3. Vehicles with AWD. Refer to: Fuel Tank .

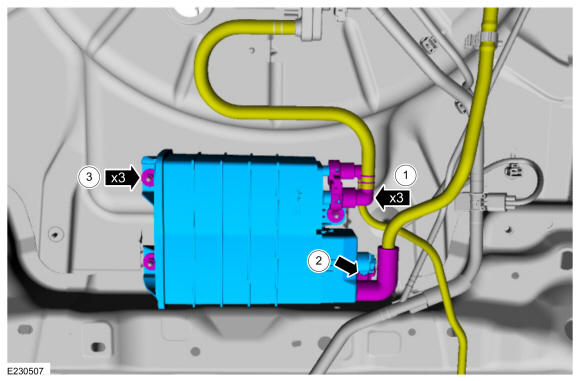

    1. Disconnect the EVAP canister quick connect couplings. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP canister electrical connector.
    3. Remove the nuts and the EVAP canister.

      Torque: 44 lb.in (5 Nm)

    GFD228653Courtesy of FORD MOTOR COMPANY
