Evaporative Emission Canister Purge Valve: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect .
  2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

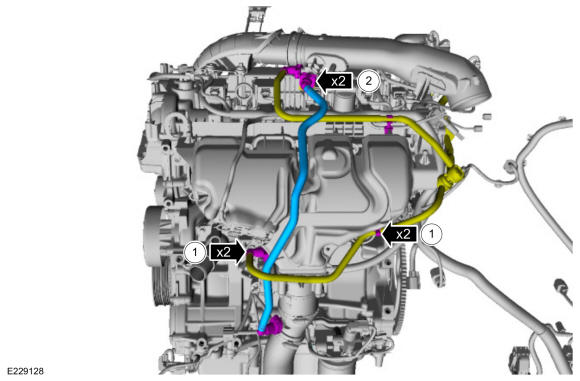

    1. Disconnect the EVAP purge valve routing clips and disconnect the 2 EVAP purge valve quick connect couplings. Refer to: Quick Release Coupling .
    2. Disconnect the 2 quick connect couplings and remove the tube. Refer to: Quick Release Coupling .
    GFD228654Courtesy of FORD MOTOR COMPANY

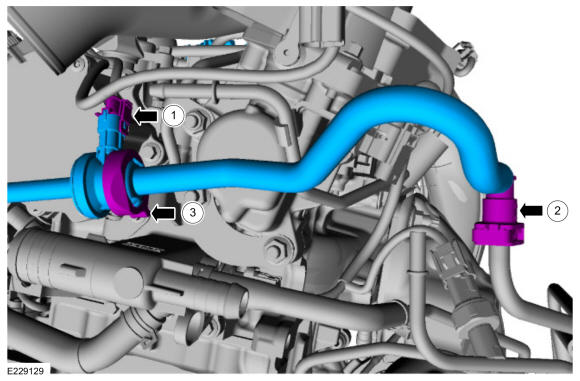

    1. Disconnect the EVAP purge valve electrical connector.
    2. Disconnect the EVAP purge valve quick connect coupling. Refer to: Quick Release Coupling .
    3. Detach the EVAP purge valve from the bracket and remove.
GFD228655Courtesy of FORD MOTOR COMPANY
