Removal And Installation: Turbocharger: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.
NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
  2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

    GFD227498Courtesy of FORD MOTOR COMPANY
  3. Remove the cowl panel. REFER to: Cowl Panel .
  4. Remove the upper and lower Air Cleaner Outlet Pipes. REFER to: Air Cleaner Outlet Pipe .
  5. Drain the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .
    • Remove the retainers and the underbody shield.

    • Remove the retainers and the stone guard.

    GFD227542Courtesy of FORD MOTOR COMPANY
  7. Remove the Charge Air Cooler (CAC) Intake Pipe. REFER to: Charge Air Cooler (CAC) Intake Pipe .
  8. Remove the bolts from the exhaust isolator bracket.
    GFD228498Courtesy of FORD MOTOR COMPANY
  9. NOTE: If needed, mark the bracket to the transmission to make sure of proper placement during installation.

    Remove and the catalytic converter bracket retaining bolts.

    GFD228499Courtesy of FORD MOTOR COMPANY
  10. Remove the battery tray. REFER to: Battery Tray .
  11. Remove and discard the catalytic converter retaining nuts, then position the catalytic converter out of the way.

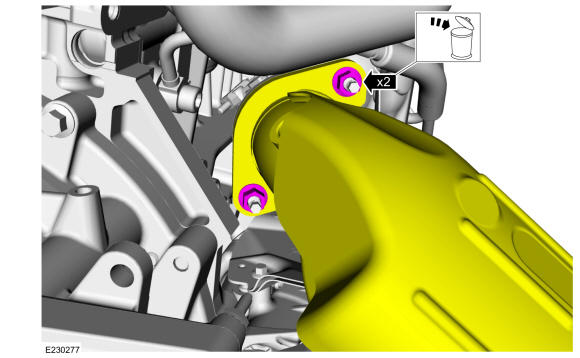

    GFD228500Courtesy of FORD MOTOR COMPANY
  12. Remove the turbocharger gasket and discard.

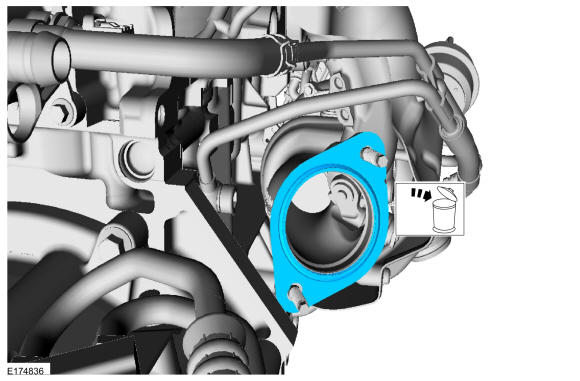

    GFD228501Courtesy of FORD MOTOR COMPANY
  13. Remove the turbocharger coolant tube bolts and then position the turbocharger coolant tubes out of the way.

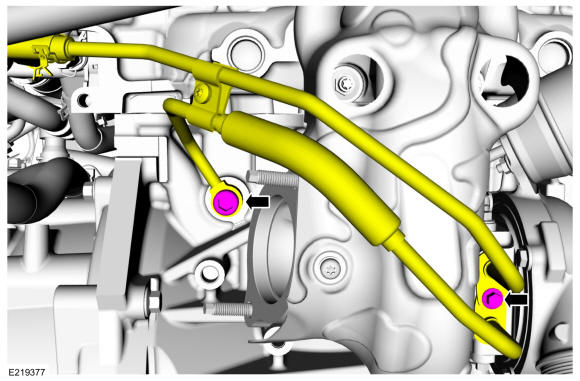

    GFD228502Courtesy of FORD MOTOR COMPANY
  14. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Inspect the banjo bolt, the line surface for flatness and square-ness and the sealing surface for damage. ALWAYS USE NEW SEALING WASHERS. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger coolant tube sealing washers. Remove and discard the turbocharger coolant tube O-ring seals.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

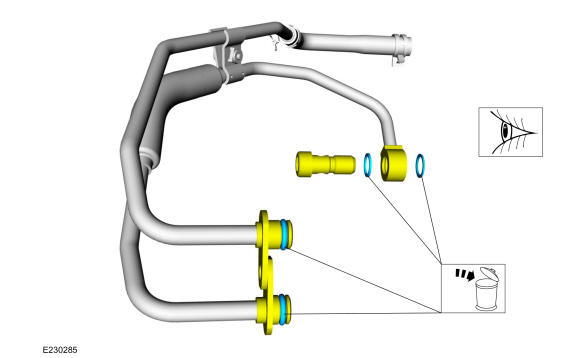

    GFD228503Courtesy of FORD MOTOR COMPANY
  15. Remove the upper turbocharger mounting nuts, remove the lower turbocharger heat shield retaining bolt and then remove the turbocharger heat shield.
    GFD228504Courtesy of FORD MOTOR COMPANY
  16. Remove the turbocharger oil supply tube retaining bolts and then remove the turbocharger oil supply tube.
    GFD228505Courtesy of FORD MOTOR COMPANY
  17. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Inspect the banjo bolt, the line surface for flatness and square-ness and the sealing surface for damage. ALWAYS USE NEW SEALING WASHERS. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger oil supply tube O-ring seal and the turbocharger oil supply tube bolt sealing washers.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD228506Courtesy of FORD MOTOR COMPANY
  18. Remove and discard the turbocharger oil filter.
    GFD228507Courtesy of FORD MOTOR COMPANY
  19. Disconnect the turbocharger wastegate control hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD228508Courtesy of FORD MOTOR COMPANY
  20. Remove the turbocharger oil return tube bolts and then remove the turbocharger oil return tube.
    GFD228509Courtesy of FORD MOTOR COMPANY
  21. NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger oil return tube O-ring seal and turbocharger oil return tube gasket.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

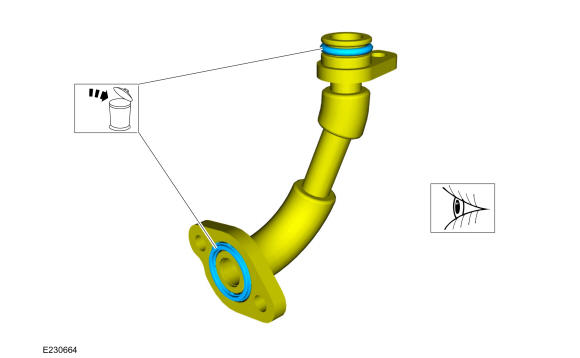

    GFD228510Courtesy of FORD MOTOR COMPANY
  22. Remove the engine mount. REFER to: Engine Mount .
  23. Lower the jack and position the engine forward as needed to allow for the removal of the turbocharger. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block
    GFD227500Courtesy of FORD MOTOR COMPANY
  24. Detach the cylinder head temperature wiring harness retainer and then disconnect the cylinder head temperature electrical connector. Detach the turbocharger control valve vacuum tube retainers and position out of the way.
    GFD228511Courtesy of FORD MOTOR COMPANY
    NOTE: The turbocharger can be removed out the top after lowering the engine.
  25. Remove the lower turbocharger mounting nuts, then remove the turbocharger.

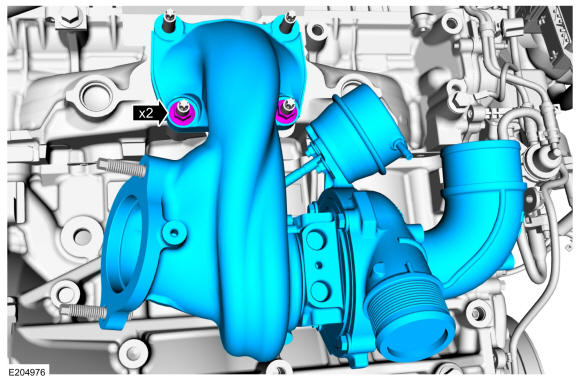

    GFD228512Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the turbocharger gasket.
    GFD228513Courtesy of FORD MOTOR COMPANY
  27. Remove the turbocharger mounting studs if they need to be removed.
    GFD228514Courtesy of FORD MOTOR COMPANY
  28. Remove the turbocharger exhaust flange studbolts if they need to be removed.
GFD228515Courtesy of FORD MOTOR COMPANY
