Turbocharger - Component Location
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

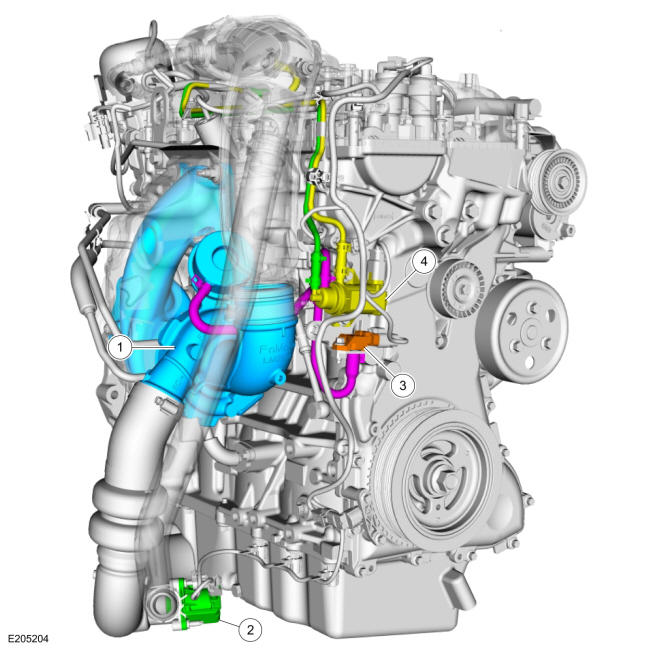

2.0L EcoBoost
| Item | Description |
|---|---|
| 1 | Turbocharger |
| 2 | Turbocharger bypass valve |
| 3 | Wastegate vacuum sensor |
| 4 | Wastegate control valve solenoid |

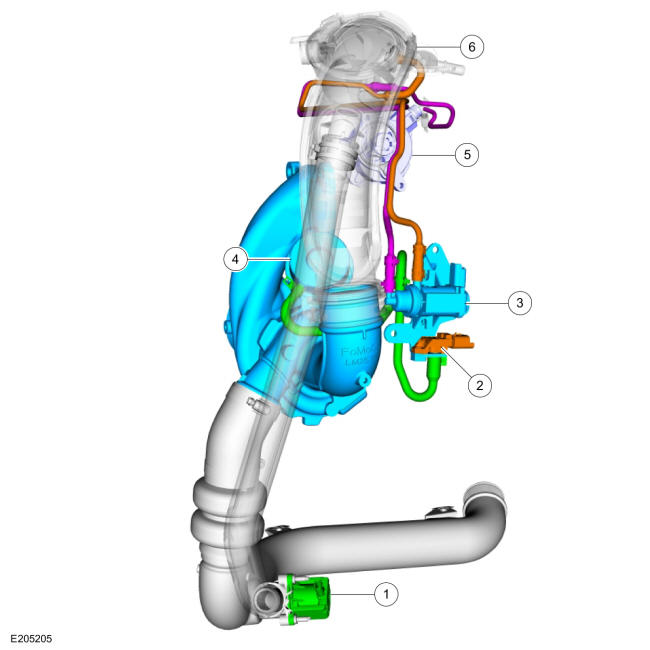

2.0L EcoBoost Turbocharger Controls
| Item | Description |
|---|---|
| 1 | Turbocharger bypass valve |
| 2 | Wastegate vacuum sensor |
| 3 | Wastegate control valve solenoid |
| 4 | Wastegate actuator |
| 5 | Vacuum pump |
| 6 | Air cleaner outlet pipe |
