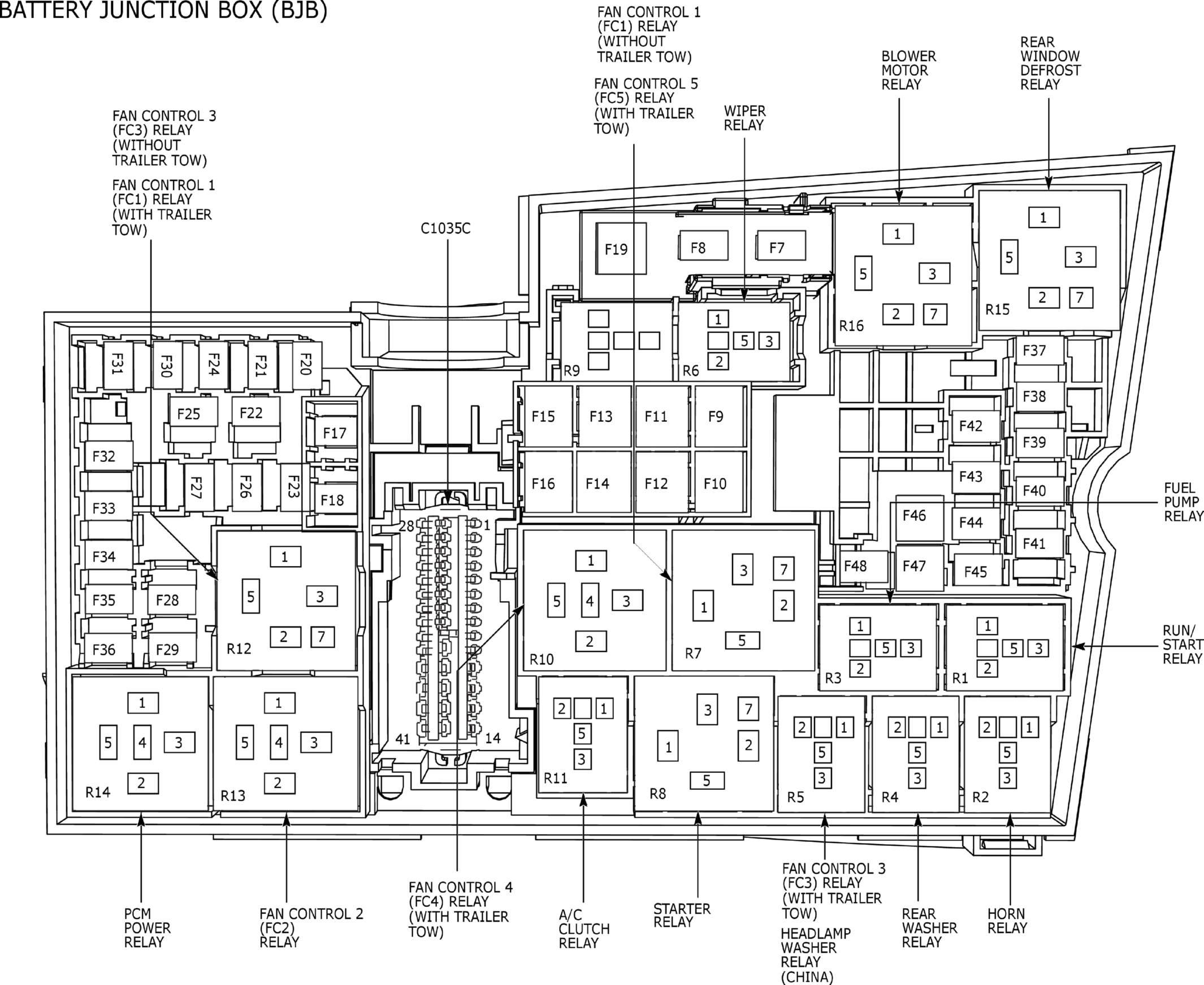

Battery Junction Box (BJB) Component Location, Fuses And Relays Location Legend
| Fuse | Amps | Circuits protected |
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | - | Not used |
| F4 | - | Not used |
| F5 | - | Not used |
| F6 | - | Not used |
| F7 | 50 | Anti Lock Brake System (ABS) module |
| F8 | 50 | Anti Lock Brake System (ABS) module |
| F9 | 20 | Fuel pump relay |
| F10 | 40 | Blower motor relay |
| F11 | 30 | Run/Start relay |
| F12 | 40 | PCM power relay |
| F13 | 30 | Starter relay |
| F14 | 30 | Driver Seat Module (DSM) |
| F15 | 30 | Wiper relay |
| F16 | 25 | Cooling fan motor 2 |
| F17 | 50 | Fan Control 5 (FC5) relay (With trailer tow) |
| 40 | Fan Control 1 FC1 relay (Without trailer tow) | |
| F18 | 50 | Fan Control 1 (FC1) relay (With trailer tow) |
| 40 | Fan Control 3 FC3 relay (Without trailer tow) | |
| F19 | 5 | Anti Lock Brake System (ABS) module |
| F20 | 20 | Horn relay |
| F21 | 10 | Stoplamp switch |
| F22 | 25 | Windshield wiper motor left front |
| F23 | 5 | Run/Start relay |
| F24 | 20 | Transmission range control module (TRCM) |
| F25 | 10 | A/C Clutch relay |
| F26 | 5 | PCM Power relay |
| F27 | 10 | Rear washer relay |
| F28 | 10 | Generator |
| F29 | 15 | Rear washer relay Rear sensor module Rear window wiper motor |
| F30 | 20 | Headlamp assembly LH |
| F31 | 20 | Headlamp assembly RH |
| F32 | 15 | Powertrain control module (PCM) |
| F33 | 15 | Evaporative emission canister vent solenoid (North America) Evaporative emission (EVAP) Purge valve Variable camshaft timing bank 1 solenoid 1 (VCT11 Variable camshaft timing bank 1 solenoid 2 (VCT12 Heated oxygen sensor (HO2S) #12 Universal heated oxygen sensor (HO2S) #11 |
| F34 | 15 | A/C clutch relay Fan control 1 (FC1) Relay fan control 2 (FC2) Relay fan control 3 (FC3) Relay. Fan control 4 (FC4) Relay (With trailer tow) Fan control 5 (FC5) Relay (With trailer tow) Active grille shutter air conditioning (A/C) Compressor control solenoid Turbocharger (TC) Wastegate regulating valve solenoid, Turbocharger bypass valve (TCBY) |
| F35 | 15 | Coil On Plug (COP) 1, Coil On Plug (COP) 2, Coil On Plug (COP) 3, Coil On Plug (COP) 4 |
| F36 | - | Not used |
| F37 | 10 | Headlamp assembly RH (China) Headlamp assembly LH (China) |
| F38 | - | Not used |
| F39 | 5 | Powertrain Control Module (PCM) |
| F40 | 10 | Power Steering Control Module (PSCM) |
| F41 | - | Not used |
| F42 | 10 | Rear parking aid camera Side Obstacle Detection Control Module-Right (SOD-R) Side Obstacle Detection Control Module-Left (SOD-L) Cruise Control Module (CCM) Head Up Display (HUD) module Ambient air quality sensor (China) |
| F43 | - | Not used |
| F44 | 5 | Rear window defrost relay |
| F45 | 5 | Transmission Range Conge Control Module (TRCM) |
| F46 | 40 | Rear window defrost relay |
| F47 | - | Not used |
| F48 | - | Not used |

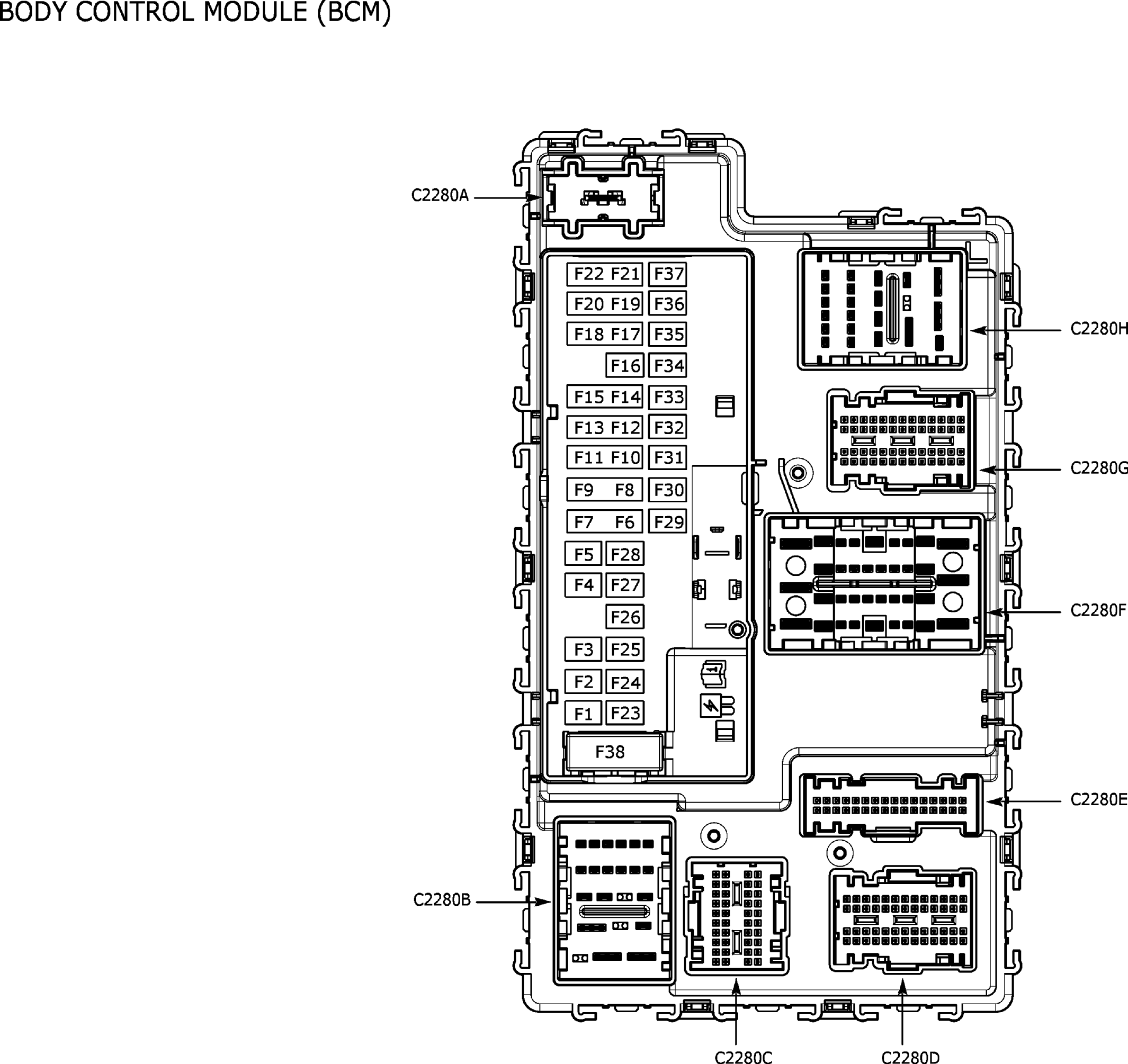

BODY CONTROL MODULE (BCM) FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Demand LP/Battery save relay |
| F2 | 7.5 | Driver seat module (DSM), Seat control switch, driver side front |
| F3 | 30 | Driver/Fuel flap unlock relay, Double/Aux lock relay, Decklid/Liftgate relay |
| F5 | 20 | Subwoofer amplifier, Audio Digital Signal Processing (DSP) module |
| F10 | 5 | Rear Gate Trunk Module (RGTM) Keyless entry keypad |
| F12 | 5 | Front Controls Interface Module (FCIM), Gear shift module (GSM) |
| F13 | 5 | Gateway module, Steering Column Control Module (SCCM), Instrument Panel Cluster (IPC) |
| F15 | 10 | Gateweay module |
| F17 | 5 | Telematic Control Unit Module (TCU) |
| F20 | 5 | Headlamp Control Module (HCM) |
| F21 | 5 | In-vehicle temperature and humidity sensor |
| F22 | 5 | Occupant Classification Sensor Module (OCSM) |
| F23 | 10 | Driver door window control switch, Direct Current/Alternating Current (DC/AC) inverter, Roof opening panel module |
| F24 | 30 | Child lock relay, Central lock relay, Central unlock relay |
| F25 | 30 | Driver Door Module (DDM) |
| F26 | 30 | Passenger Door Module (PDM) |
| F27 | 30 | Roof opening panel module |
| F28 | 20 | Audio Digital Signal Processing (DSP) module |
| F29 | 30 | Driver Rear Door Module (DRDM) |
| F30 | 30 | Passenger Rear Door Module (PRDM) |
| F32 | 10 | Global Positioning System Module (GPSM), Accessory Protocol Interface Module (APIM), Radio Transciever Module (RTM) |
| F33 | 20 | Audio Front Control Module (ACM) |
| F34 | 30 | Run/Start Relay |
| F35 | 5 | Restraints Control Module (RCM) |
| F36 | 15 | Vehicle Dynamics Module (VDM), Auto-dimming interior mirror, Heated seat module, rear |
| F37 | 15 | All Wheel Drive (AWD) relay module, Heated Steering Wheel Module (HSWM) |

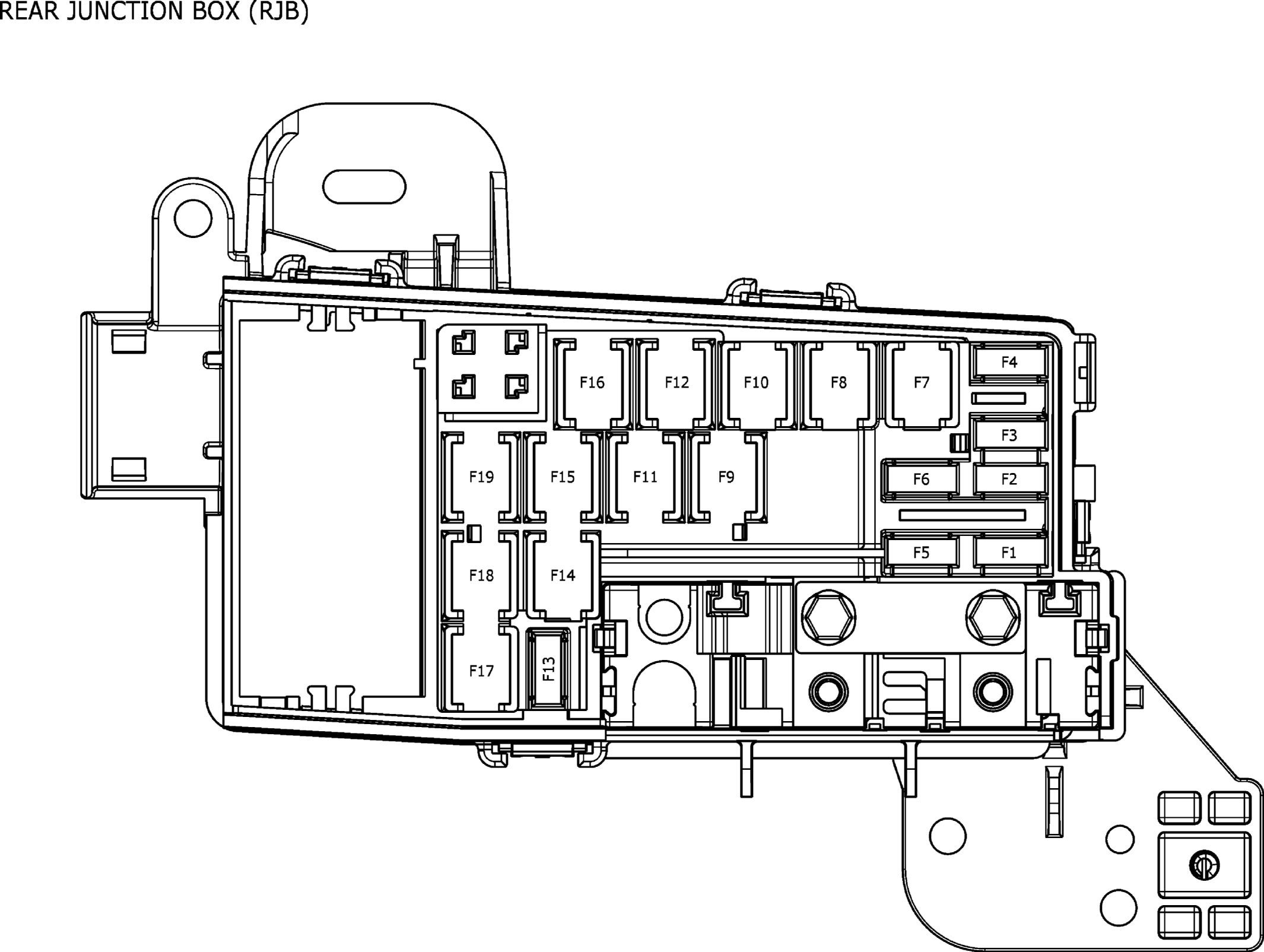

REAR JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits Protected |
|---|---|---|
| F1 | 30 | Headlamp Washer Relay |
| F3 | 5 | Hands free actuation module |
| F7 | 30 | Heated seat module, rear |
| F8 | 30 | Rear Gate Trunk Module (RGTM) |
| F9 | 20 | Front Controls Interface Module (FCIM) |
| F10 | 40 | Trailer Module |
| F11 | 30 | Front Seat Climate Control Module (SCME) |
| F12 | 20 | Cigar lighter |
| F14 | 30 | Seat control switch, passenger side front |
| F15 | 20 | Rear passenger power outlet socket |
| F16 | 20 | Front power outlet socket |
| F18 | 20 | Luggage compartment power outlet socket |
| F19 | 40 | Direct Current/Alternating Current (DC/AC) inverter |

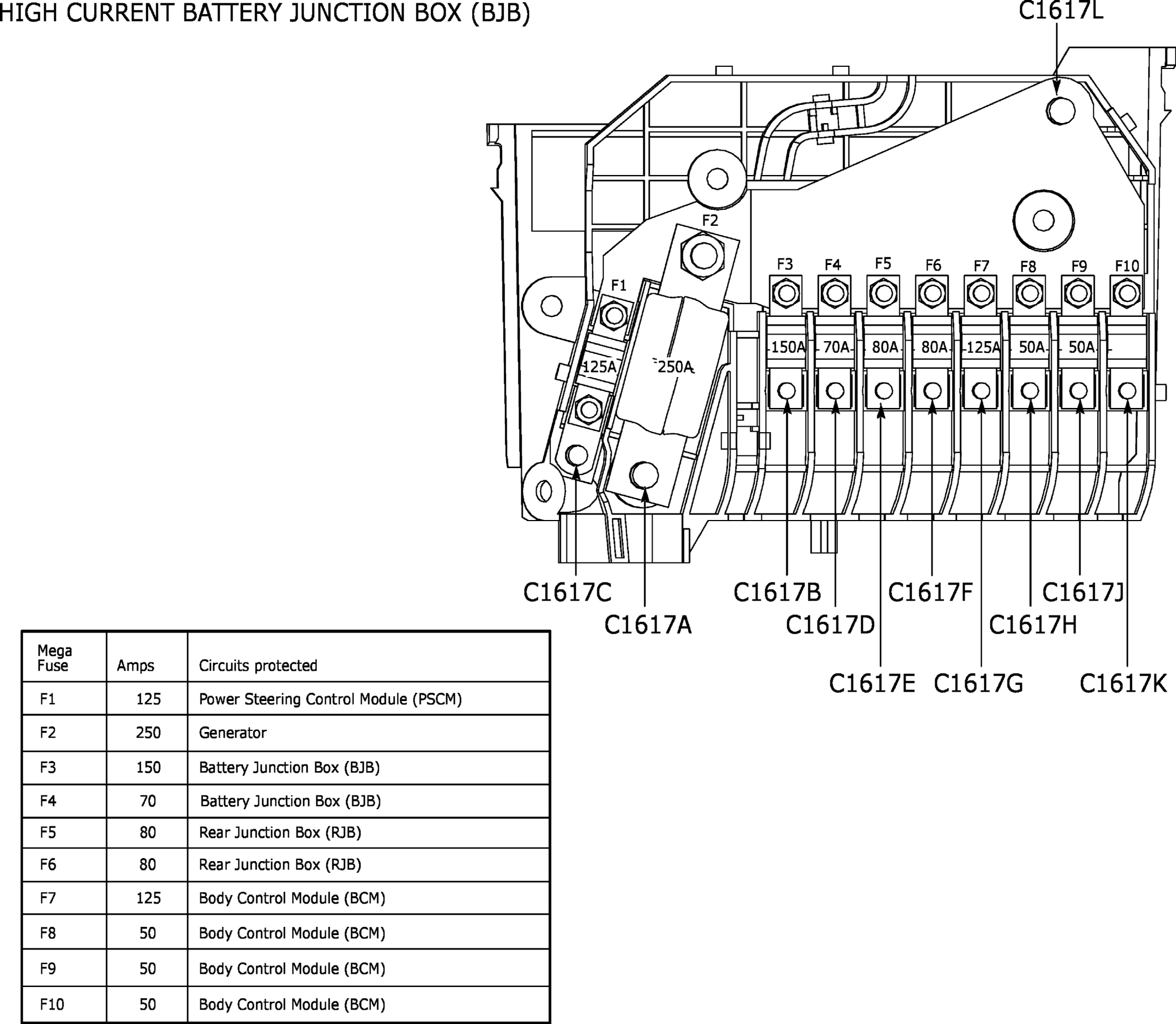

HIGH CURRENT BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Mega Fuse | Amps | Circuits Protected |
|---|---|---|
| F1 | 125 | Power Steering Control Module (PSCM) |
| F2 | 250 | Generator |
| F3 | 150 | Battery Junction Box (BJB) |
| F4 | 70 | Battery Junction Box (BJB) |
| F5 | 80 | Rear Junction Box (RJB) |
| F6 | 80 | Rear Junction Box (RJB) |
| F7 | 125 | Body Control Module (BCM) |
| F8 | 50 | Body Control Module (BCM) |
| F9 | 50 | Body Control Module (BCM) |
| F10 | 50 | Body Control Module (BCM) |
