Seatbelt Shoulder Height Adjuster: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH side shown, LH side similar.

Remove the B-pillar upper trim panel. Refer to: B-Pillar Trim Panel .

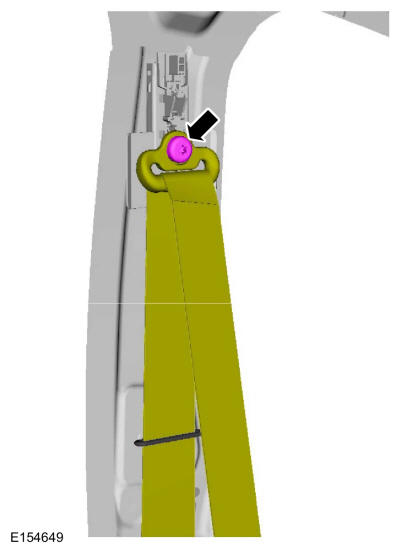

Remove the D-ring bolt and position the safety belt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: The spacer is part of the safety belt shoulder height adjuster.

Remove and discard the spacer from the D-ring bolt.

Courtesy of FORD MOTOR COMPANY

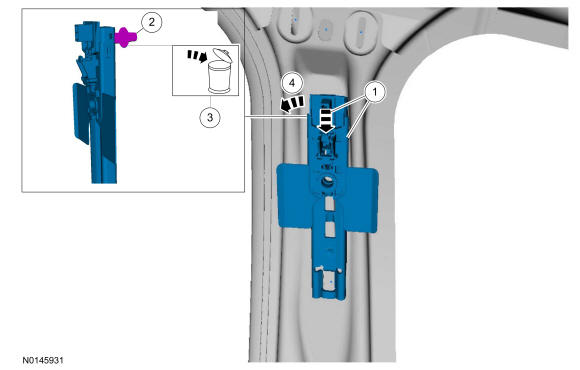

1. Slide the height adjuster down.
2. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
3. Discard the bolt.
4. Remove the safety belt shoulder height adjuster.

Courtesy of FORD MOTOR COMPANY
