Rear Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .

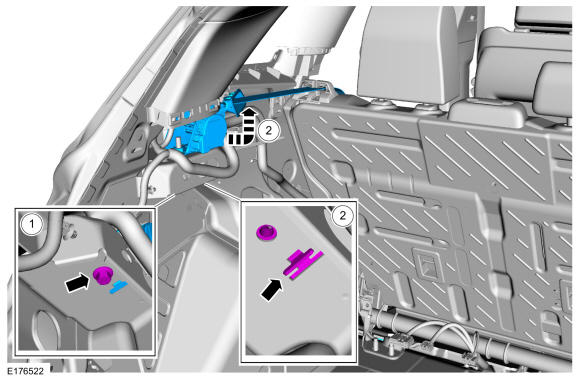

    1. Remove the rear safety belt retractor bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Slide the rear safety belt retractor forward to release the lower safety belt retractor retainer and remove the rear safety belt retractor.
GFD230626Courtesy of FORD MOTOR COMPANY
