Rear Seatbelt Buckle LH: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat cushion. Refer to: Rear Seat Cushion .

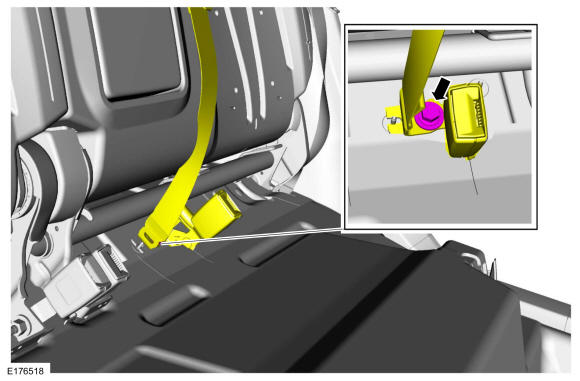

Loosen the anchor bolt and position the rear center safety belt and buckle aside.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

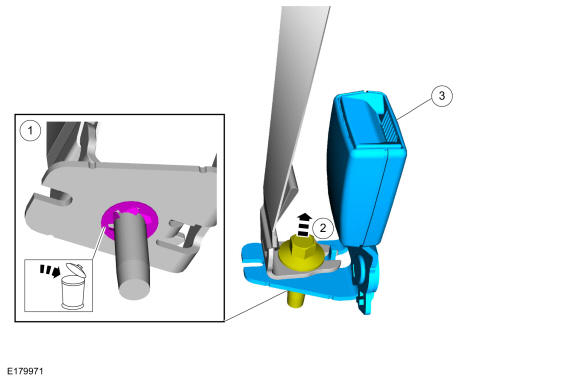

1. Remove and discard the tinnerman clip.
2. Remove the anchor bolt from the rear safety belt buckle.
3. Remove the rear safety belt buckle.

Courtesy of FORD MOTOR COMPANY
