Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Remove the 60 percent rear seat backrest. Refer to: Rear Seat Backrest .
1. Remove and discard the bolt retainer.
2. Position the bolt aside.
3. Remove the rear center safety belt buckle.
Courtesy of FORD MOTOR COMPANY

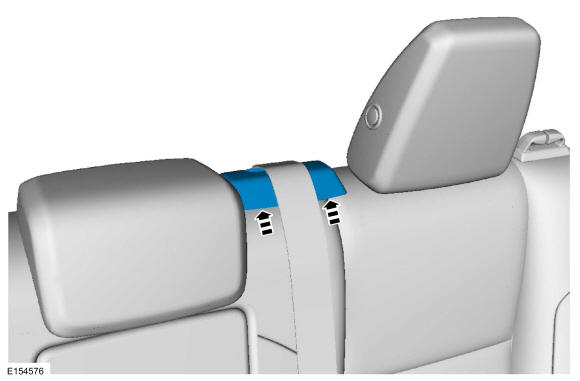

Remove the rear center safety belt guide bezel.

Courtesy of FORD MOTOR COMPANY

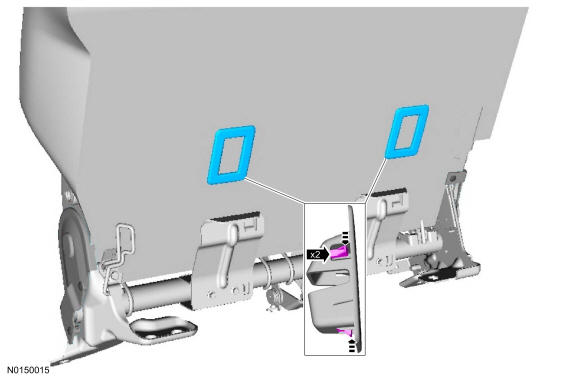

Remove the child safety seat tether anchor bezels.

Courtesy of FORD MOTOR COMPANY

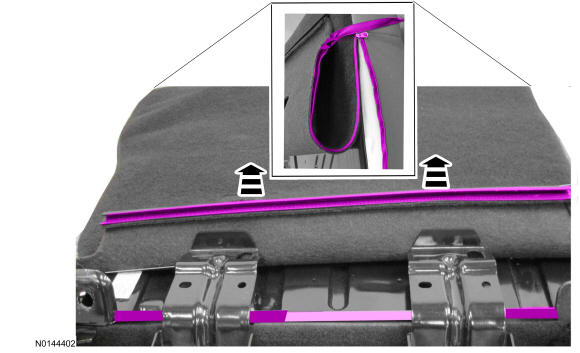

Release the J-clip, unzip and invert the backrest cover.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the rear seat armseat. Refer to: Rear Seat Armrest .

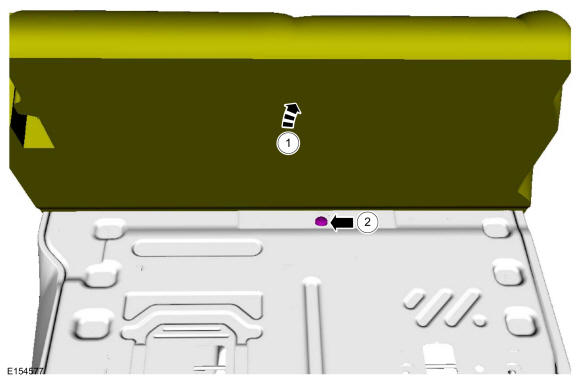

1. Lift the backrest foam.
2. Remove the safety belt retractor bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

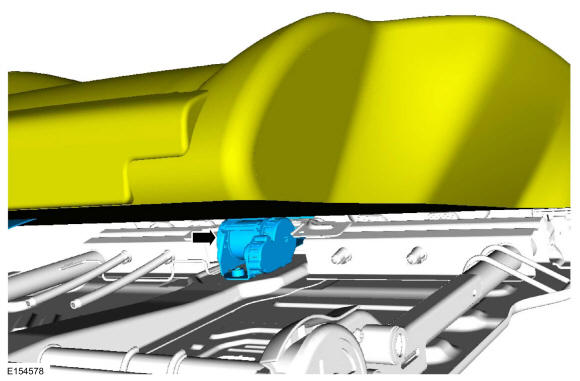

Remove the rear center safety belt retractor.

Courtesy of FORD MOTOR COMPANY

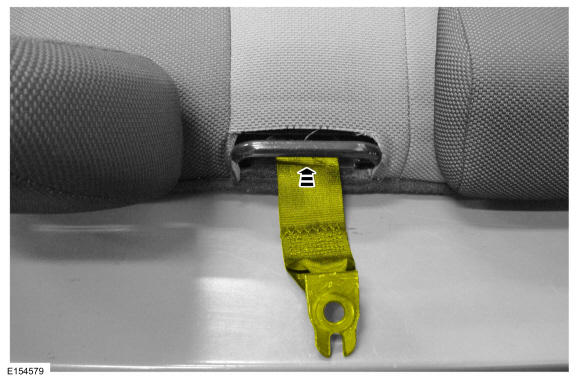

Route the safety belt through the guide.

Courtesy of FORD MOTOR COMPANY
