Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Passenger seat shown, driver seat similar.

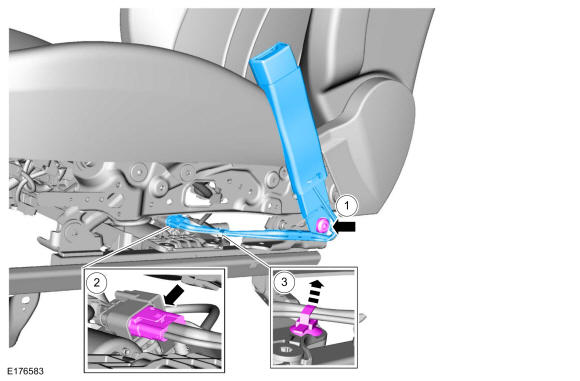

  1. Remove the front seat. Refer to: Front Seat .
    1. Remove the front safety belt buckle bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Disconnect the front safety belt buckle electrical connector.
    3. Release the wire harness retainer and remove the front safety belt buckle.
GFD230615Courtesy of FORD MOTOR COMPANY
