Front Brake Disc: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Wheel and Tire .

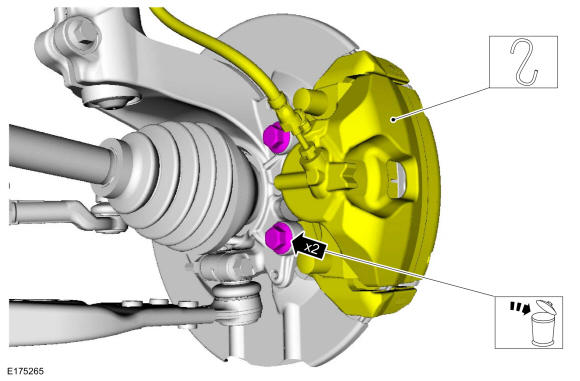

  2. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Torque: 129 lb.ft (175 Nm)

    GFD227273Courtesy of FORD MOTOR COMPANY

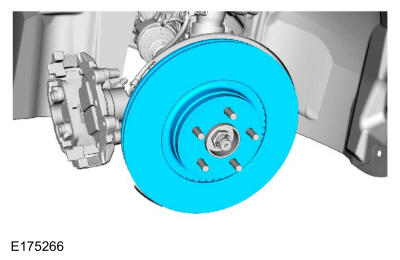

  3. GFD227274Courtesy of FORD MOTOR COMPANY
