Front Brake Disc Shield: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Brake Disc .
  2. Torque: 22 lb.ft (30 Nm)

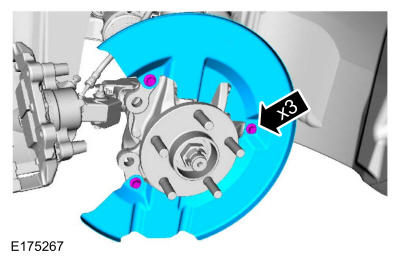

GFD227275Courtesy of FORD MOTOR COMPANY
