Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Wheel and Tire .

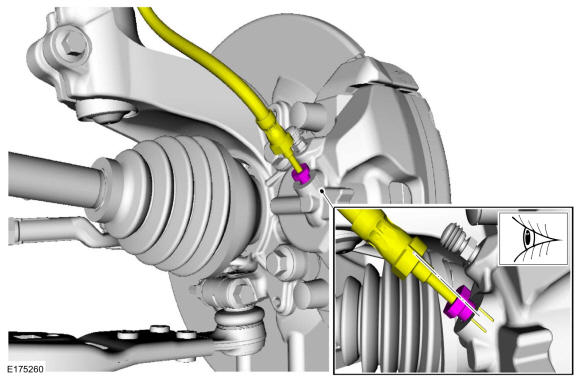

  2. NOTE: Make sure that the brake hose is not twisted and is correctly located.

    Torque: 159 lb.in (18 Nm)

    GFD227266Courtesy of FORD MOTOR COMPANY

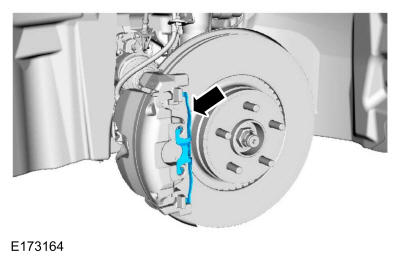

  3. GFD227267Courtesy of FORD MOTOR COMPANY

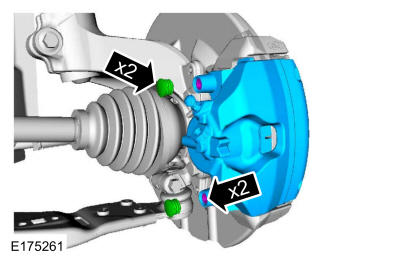

  4. Torque: 22 lb.ft (30 Nm)
    GFD227268Courtesy of FORD MOTOR COMPANY
  5. GFD227269Courtesy of FORD MOTOR COMPANY
