Front Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Wheel and Tire .
Courtesy of FORD MOTOR COMPANY

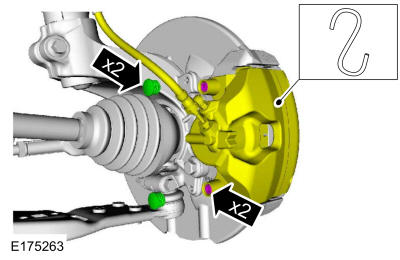

NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

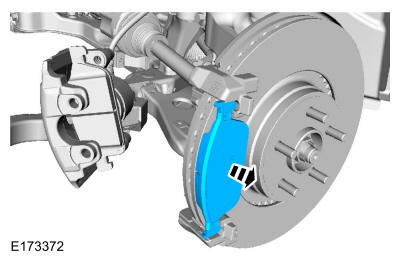

Courtesy of FORD MOTOR COMPANY

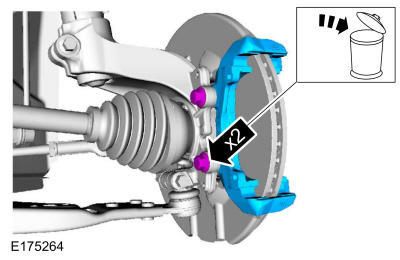

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
