Section 1230 (Engine - 2.0L ECOBOOST (177KW/240PS) - Mi4): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special tool(s) / general equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1585AE Powertrain Lift
Courtesy of FORD MOTOR COMPANY	300-OTC1819E 2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Magnetic Socket
Adjustable Mounting Arm
Oil Drain Equipment
Hose Clamp Remover/Installer
Punch
Wooden Block
Copper Hammer

LHD AWD/LHD FWD

1. With the vehicle in neutral, position it on a hoist. refer to: Jacking and lifting - overview .
2. Release the fuel system pressure. refer to: Fuel system pressure release .
3. Install a holding tool with the steering wheel in straight ahead position.

   Courtesy of FORD MOTOR COMPANY

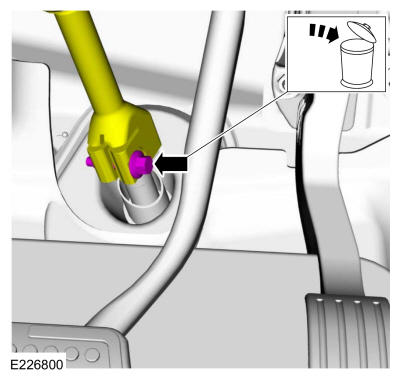

4. • Remove and discard the bolt.
   • Detach the steering column shaft from steering input shaft.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
   2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

6. Evacuate the a/c system. refer to: Air conditioning (a/c) system recovery, evacuation and charging .

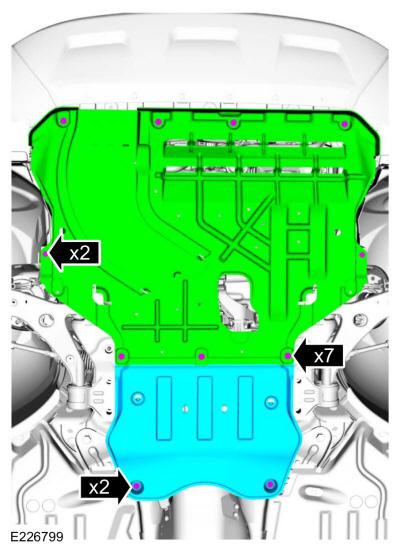

7. • Remove the retainers and the underbody shield.
   • Remove the retainers and the stone guard.

   Courtesy of FORD MOTOR COMPANY

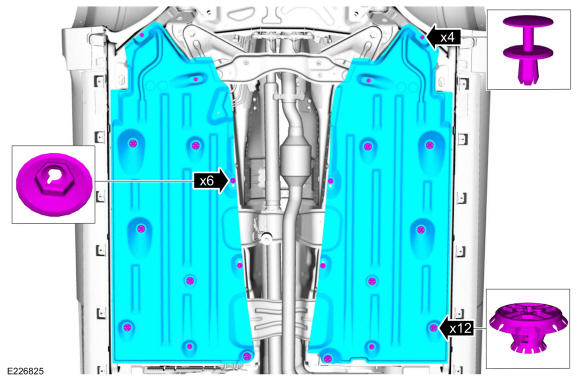

8. Remove the retainers and the underbody side panels.

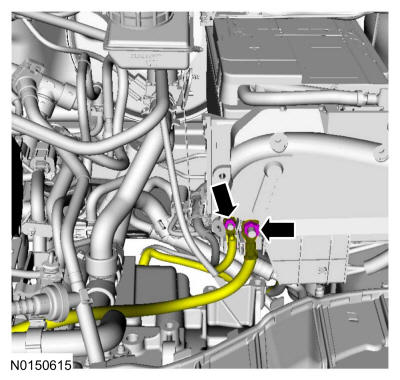

   Courtesy of FORD MOTOR COMPANY

9. Drain the cooling system. refer to: Cooling system draining, vacuum filling and bleeding .
10. Disconnect the battery ground cable. refer to: Battery disconnect and connect .

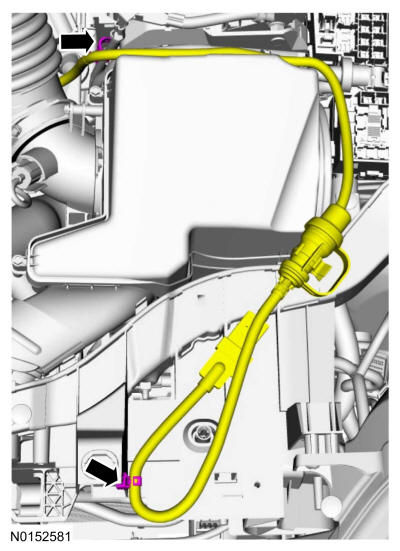

11. If equipped with block heater, detach the retainers.

    Courtesy of FORD MOTOR COMPANY

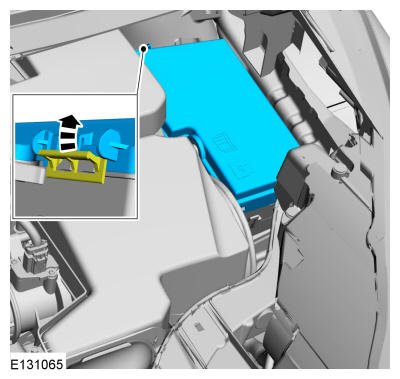

12. Release the tab and remove the BJB cover

    Courtesy of FORD MOTOR COMPANY

13. Remove the following items:
    1. Refer to: Air cleaner .
    2. Upper air cleaner outlet pipe. refer to: Air cleaner outlet pipe .

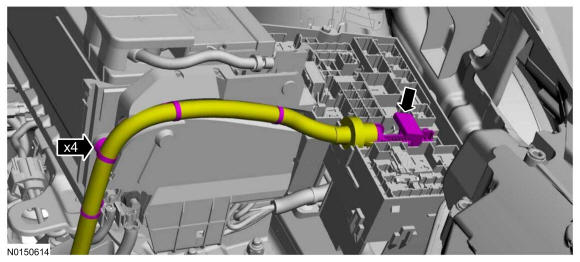

14. Disconnect the main wiring harness from the BJB and detach the retainers.

    Courtesy of FORD MOTOR COMPANY

15. Remove the nuts and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

16. Remove the battery tray. refer to: Battery tray .

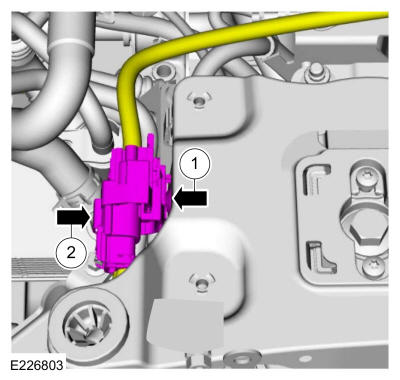

17. 1. Detach the wiring harness retainer.
    2. Disconnect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

18. Remove the nut and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

19. If equipped, detach the wiring harness retainer, remove the nuts and the battery tray support bracket.

    Courtesy of FORD MOTOR COMPANY

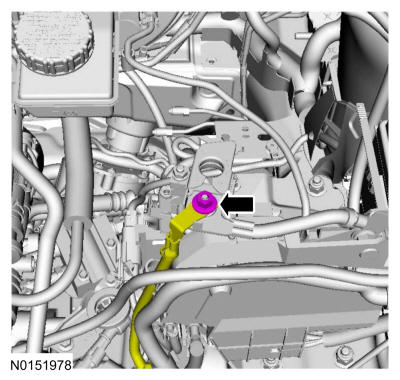

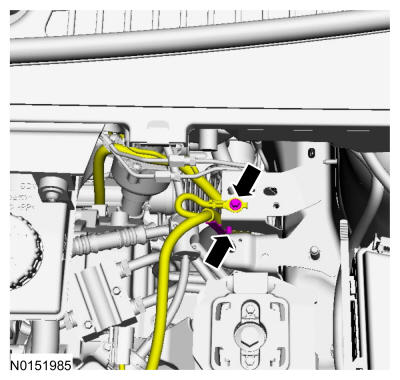

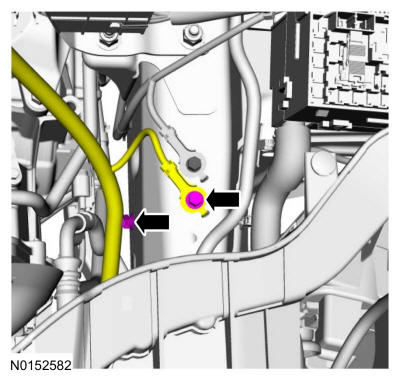

20. Remove the bolt, the ground wire and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

21. • Remove the bolt and the ground wire.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

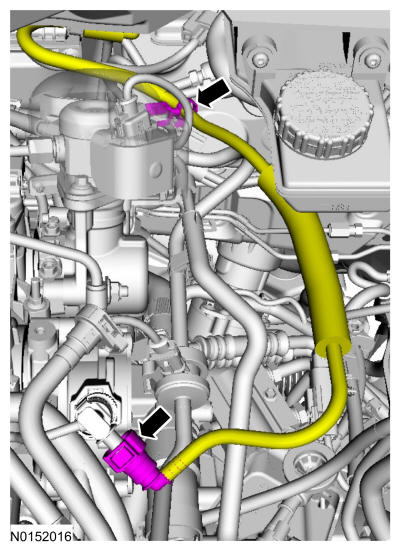

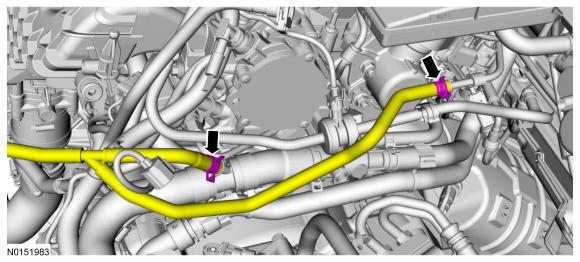

22. Disconnect the vacuum tube and detach the retainer.

    Courtesy of FORD MOTOR COMPANY

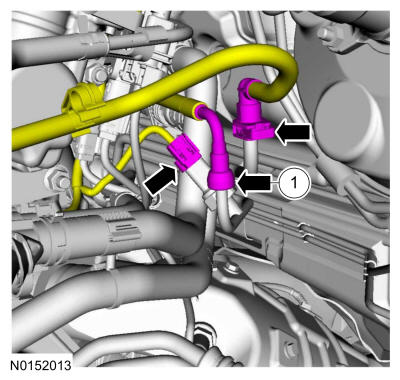

23. 1. Disconnect the fuel hose spring lock coupling. refer to: Spring lock couplings .
    • Disconnect the fuel pressure sensor electrical connector.
    • Disconnect the EVAP canister purge valve quick release coupling. refer to: Quick release coupling .

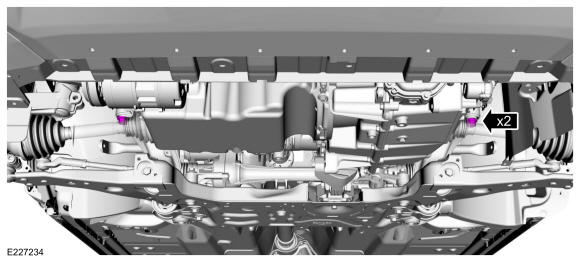

    Courtesy of FORD MOTOR COMPANY

24. Disconnect the coolant hoses. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

25. Remove the degas bottle. refer to: Degas bottle .

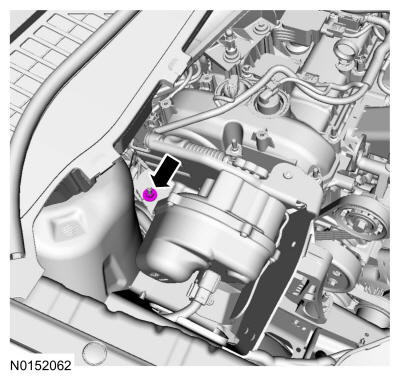

26. Remove the transmission control unit nut.

    Courtesy of FORD MOTOR COMPANY

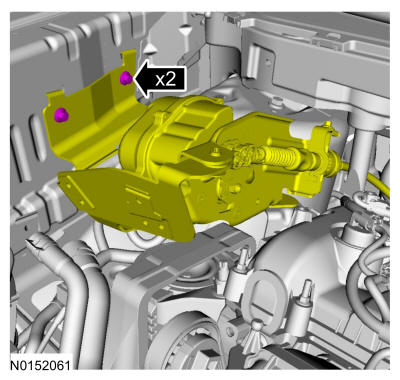

27. Remove the bolts and position the transmission control unit aside.

    Courtesy of FORD MOTOR COMPANY

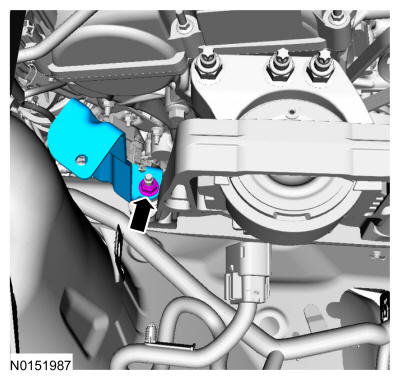

28. Remove the nut and the bracket.

    Courtesy of FORD MOTOR COMPANY

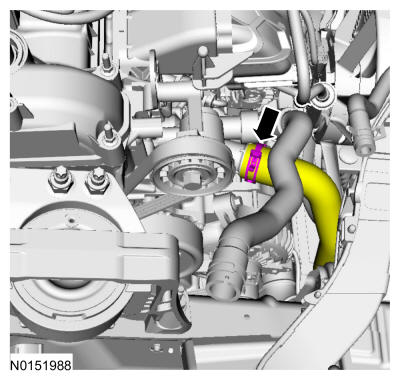

29. Disconnect the lower radiator hose from the thermostat housing. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

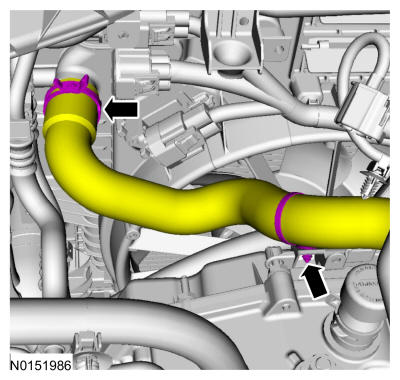

30. Disconnect the upper radiator hose and retainer. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

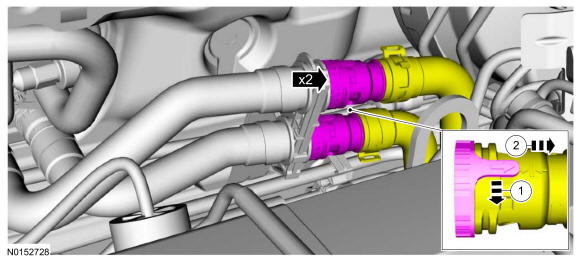

31. 1. Rotate the heater hose tabs.
    2. Disconnect the heater hoses.

    Courtesy of FORD MOTOR COMPANY

32. Disconnect the shift cable, remove the bolts and position aside.

    Courtesy of FORD MOTOR COMPANY

33. Remove the front wheels and tires. refer to: Wheel and tire .
34. NOTE: Transmission mount removed from graphic for clarity.

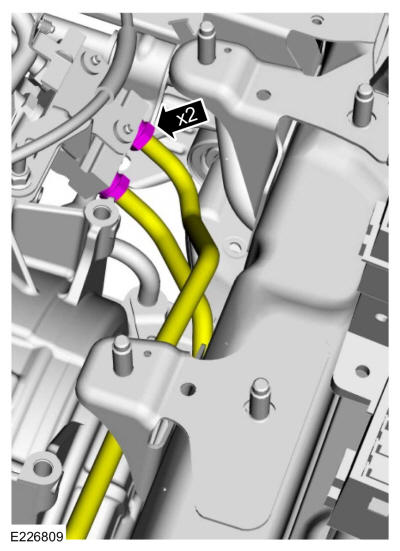

    Remove the transmission tubes from the transmission fluid cooler bypass valve.

    Courtesy of FORD MOTOR COMPANY

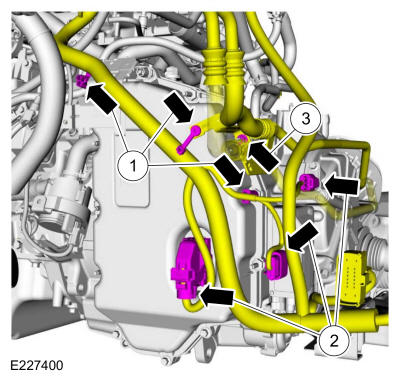

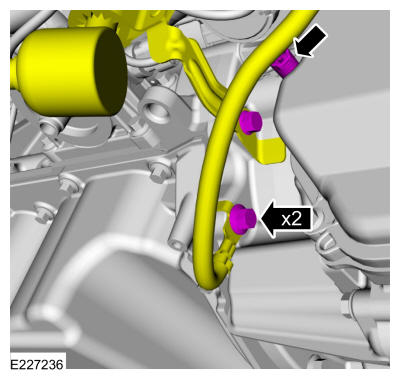

35. • Detach the wiring harness connectors.
    • Disconnect the wiring harness electrical connectors.
    • Remove the nut and position the transmission cooling tube bracket aside.

    Courtesy of FORD MOTOR COMPANY

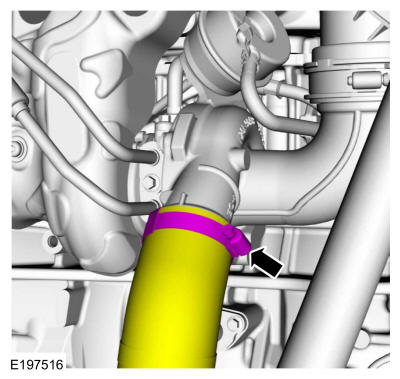

36. Loosen the clamp and position the CAC tube aside.

    Courtesy of FORD MOTOR COMPANY

37. Disconnect the bypass hose, electrical connector and the wire retainer. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

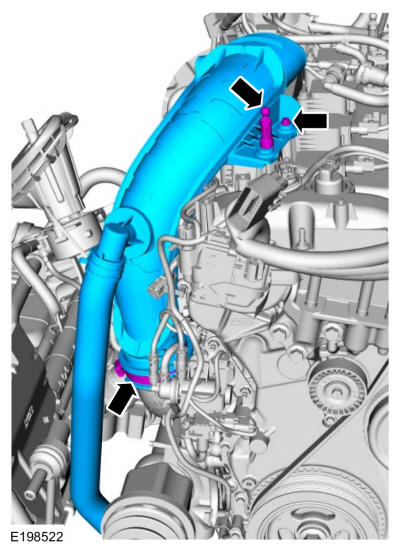

38. Loosen the clamp, remove the nuts and the CAC tube.

    Courtesy of FORD MOTOR COMPANY

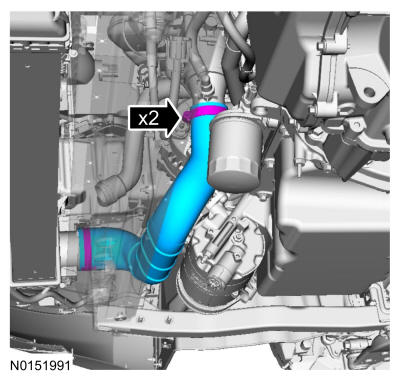

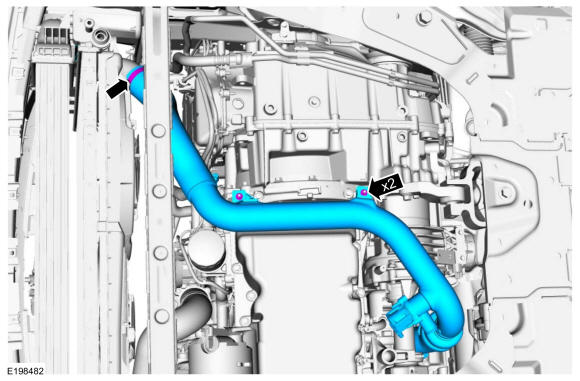

39. Loosen the clamps and remove the CAC outlet tube.

    Courtesy of FORD MOTOR COMPANY

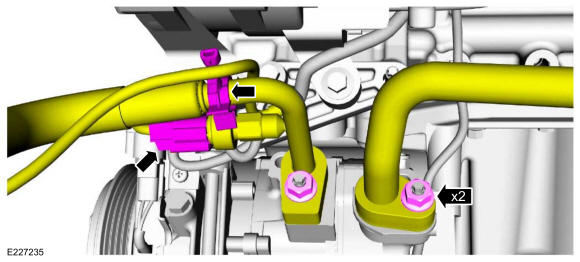

40. 1. Disconnect the a/c pressure sensor electrical connector and the wiring harness retainer.
    2. NOTE: Discard the o-ring seals and gaskets.

       Remove the nuts and disconnect the a/c tubes.

    Courtesy of FORD MOTOR COMPANY

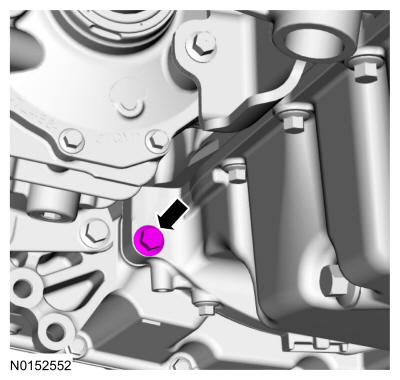

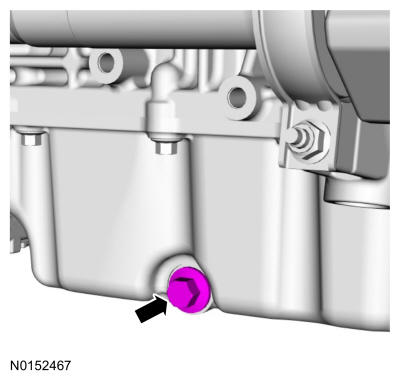

41. • Remove the oil pan drain bolt and drain the engine oil. Use the general equipment: oil drain equipment
    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 nm)

    Courtesy of FORD MOTOR COMPANY

42. Remove and discard the engine oil filter.

    Courtesy of FORD MOTOR COMPANY

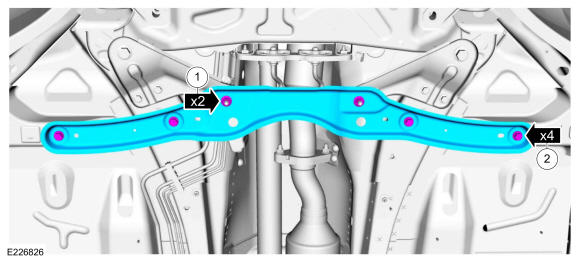

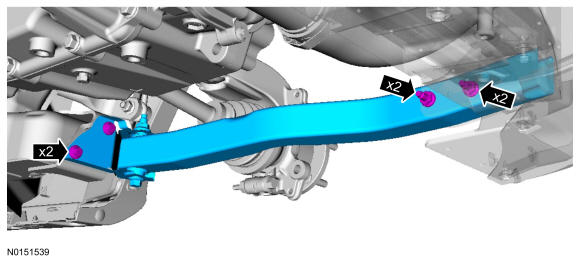

43. Remove the nuts, bolts and the cross support.

    Courtesy of FORD MOTOR COMPANY

44. If equipped, disconnect the exhaust gas temperature sensor electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

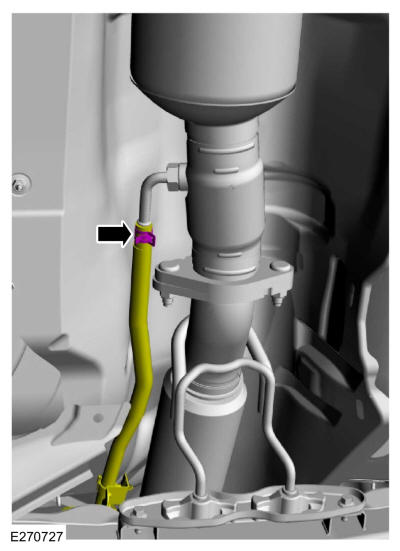

45. If equipped, disconnect the exhaust pressure sensor hose. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

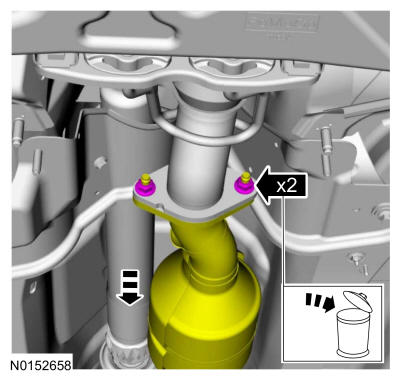

46. Remove and discard the exhaust nuts and position exhaust rearward.

    Courtesy of FORD MOTOR COMPANY

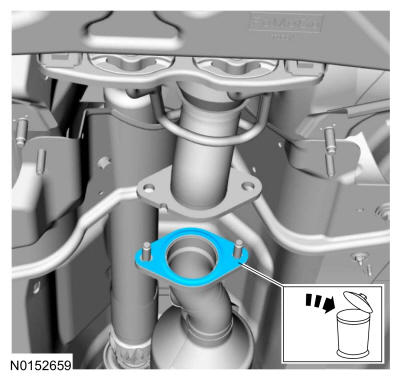

47. NOTE: Clean the catalytic converter-to-muffler sealing surfaces.

    Remove and discard the muffler inlet pipe gasket.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

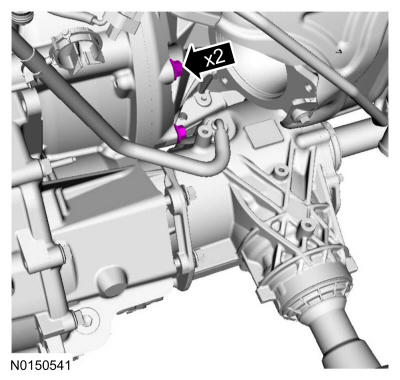

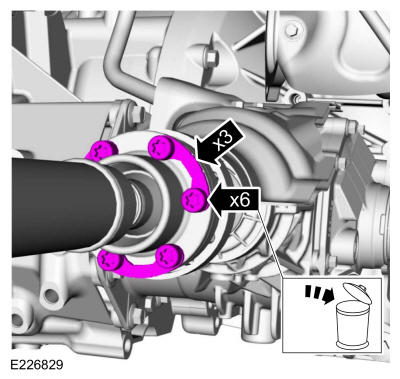

48. Remove and discard the driveshaft-to-pinion flange bolts.

    Courtesy of FORD MOTOR COMPANY

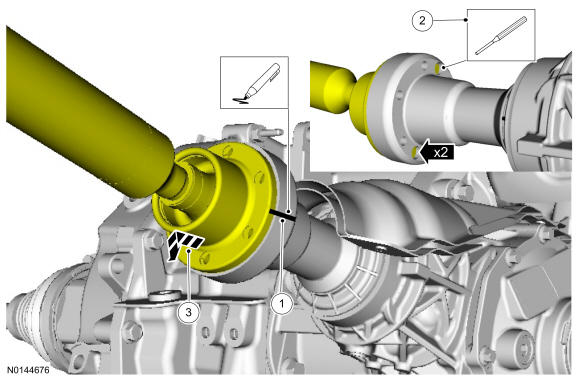

49. 1. Mark the driveshaft and power transfer unit flange alignment.
    2. Using a punch and a copper hammer, separate the driveshaft from the power transfer unit flange. Use the general equipment: punch use the general equipment: copper hammer
    3. Remove the driveshaft from the power transfer unit flange.

    Courtesy of FORD MOTOR COMPANY

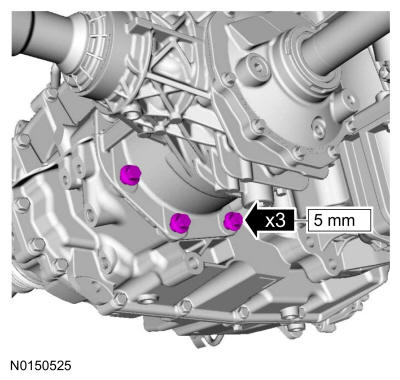

50. Loosen 5 mm (0.197).

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

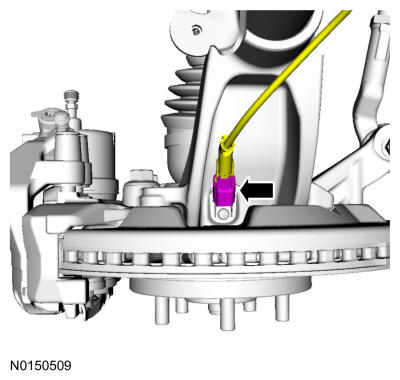

51. If equipped, remove the rh and LH front suspension height sensors. refer to: Front suspension height sensor .
52. NOTE: LH shown, rh similar.

    Both sides. disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

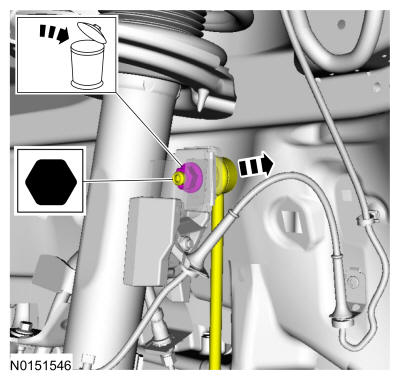

53. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.
    NOTE: LH shown, rh similar.

    Both sides. remove the nut and position the sway bar links aside.

    Courtesy of FORD MOTOR COMPANY

54. Remove the front brake discs. refer to: Brake disc .

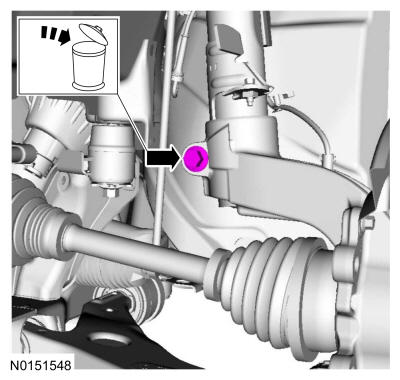

55. NOTE: The struts will need to slide out of the knuckles when the powertrain and subframe assembly is lowered.
    NOTE: LH shown, rh similar.

    Both sides. remove the strut to knuckle bolt and discard the bolt.

    Courtesy of FORD MOTOR COMPANY

56. • Detach the wiring harness retainer.
    • Remove the bolt and position the ground cable aside.
    • NOTE: This bolt will be used to mount the adjustable mounting arm to the powertrain.

      Remove the bolt and position a/c tube aside.

    Courtesy of FORD MOTOR COMPANY

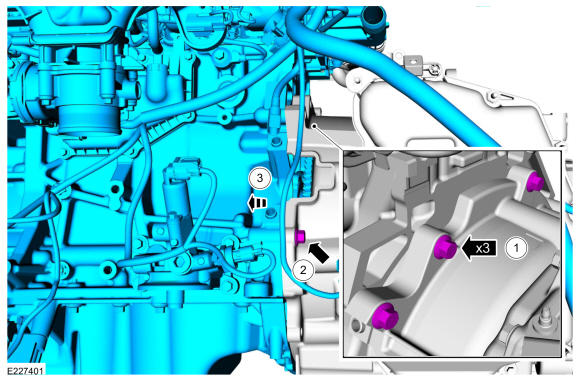

57. Remove the transmission-to-engine bolts.

    Courtesy of FORD MOTOR COMPANY

58. Remove the engine-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

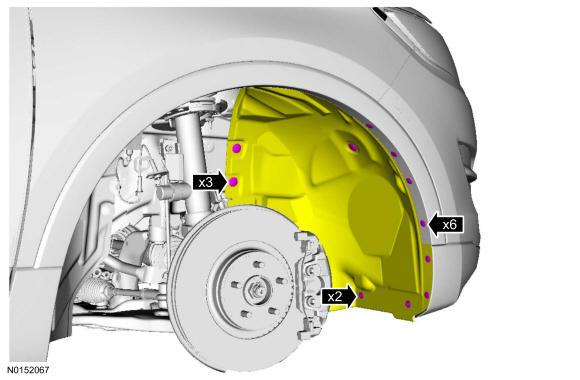

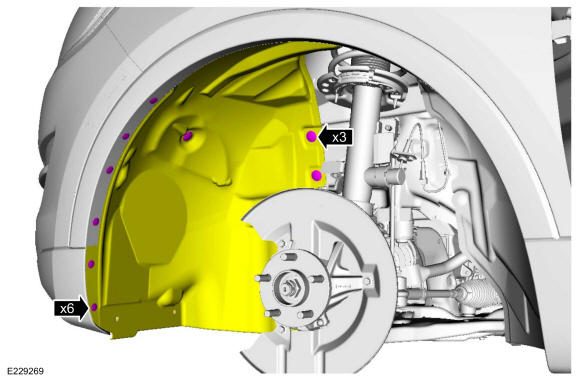

59. Remove the fasteners and position the fender splash shield aside.

    Courtesy of FORD MOTOR COMPANY

60. NOTE: Front bumper cover removed for clarity.

    Disconnect the turbocharger boost pressure and charge air temperature sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

61. Remove the a/c compressor belt. refer to: Air conditioning (a/c) compressor belt .
62. Remove the retainers and position the splash shield aside.

    Courtesy of FORD MOTOR COMPANY

63. NOTE: LH shown, rh similar.

    Both sides. remove the bolts, nuts, studs and the subframe support bracket.

    Courtesy of FORD MOTOR COMPANY

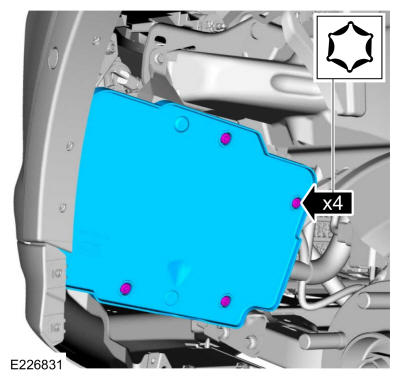

64. Remove the retainers and the PCM cover.

    Courtesy of FORD MOTOR COMPANY

65. Detach the wiring harness grommet.

    Courtesy of FORD MOTOR COMPANY

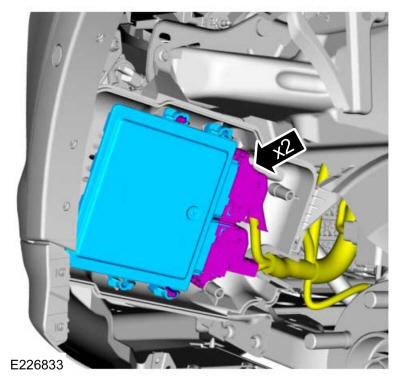

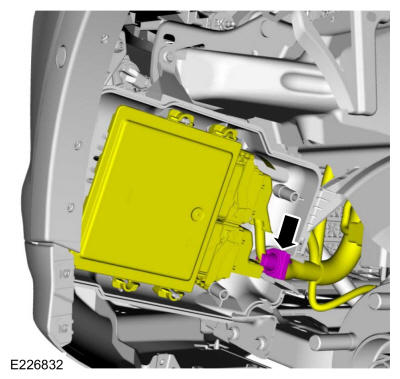

66. Disconnect the electrical connectors and remove the PCM.

    Courtesy of FORD MOTOR COMPANY

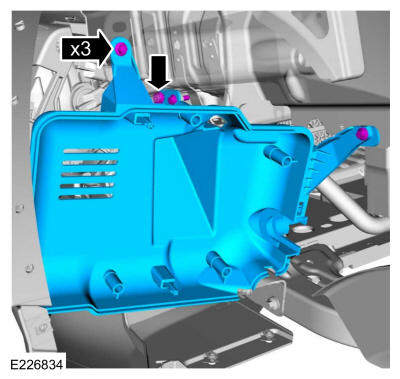

67. • Remove the bolts and the PCM housing.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

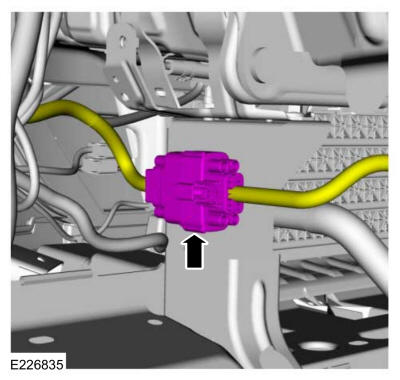

68. Disconnect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

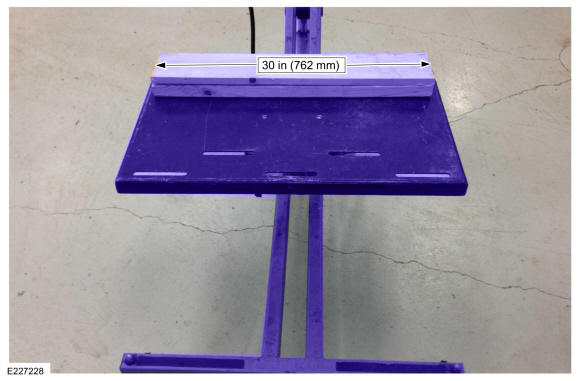

69. Position a 2 x 6 board, 30 in (762 mm) in length and one 1 x 6 board 30 in (762 mm) in length onto the powertrain lift. install special service tool: 300-OTC1585AE powertrain lift. Use the general equipment: wooden block

    Courtesy of FORD MOTOR COMPANY

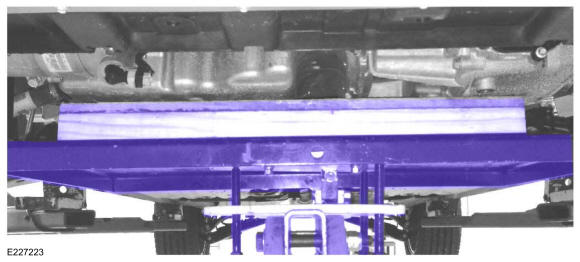

70. Position the powertrain lift table with the boards under the engine and transmission.

    Courtesy of FORD MOTOR COMPANY

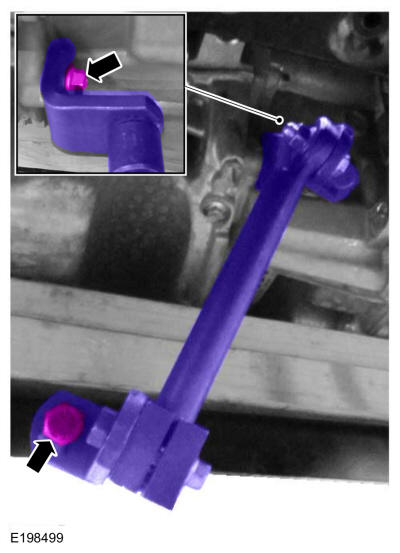

71. Install. Use the general equipment: adjustable mounting arm

    Courtesy of FORD MOTOR COMPANY

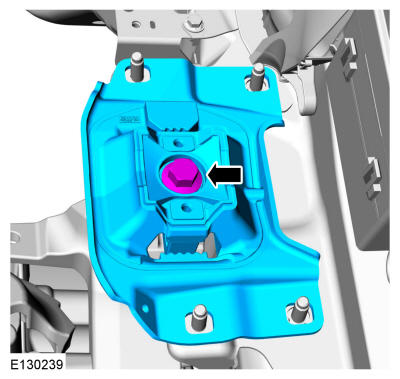

72. Remove the bolt and the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

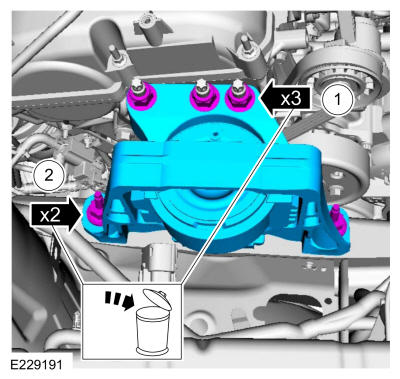

73. 1. Remove and discard the engine mount nuts.
    2. Remove and discard the engine mount stud bolts and remove the engine mount.

    Courtesy of FORD MOTOR COMPANY

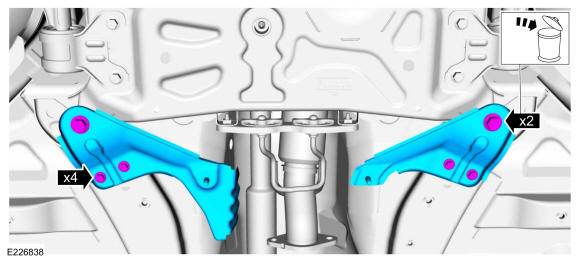

74. 1. Remove and discard the 2 bolts.
    2. Remove the 4 bolts and the subframe support brackets.

    Courtesy of FORD MOTOR COMPANY

75. Remove the forward subframe bolts.

    Courtesy of FORD MOTOR COMPANY

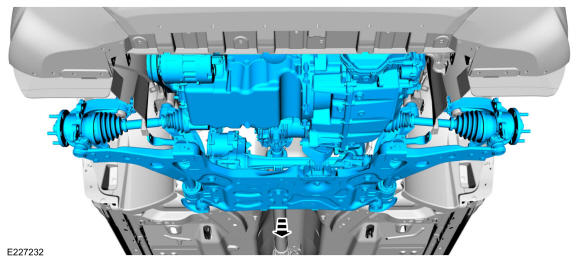

76. NOTE: Make sure the struts slide out of the knuckles when lowered.

    Using the powertrain lift, lower the powertrain and subframe assembly.

    Courtesy of FORD MOTOR COMPANY

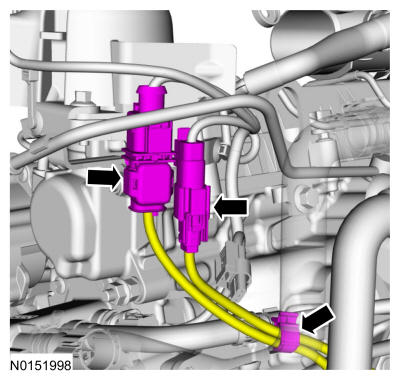

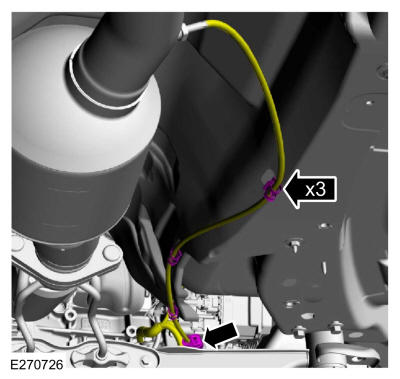

77. Disconnect the HO2S and catalyst monitor sensor electrical connectors.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

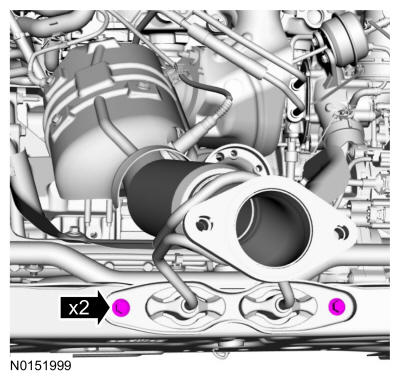

78. Remove the catalytic converter support bracket bolts.

    Courtesy of FORD MOTOR COMPANY

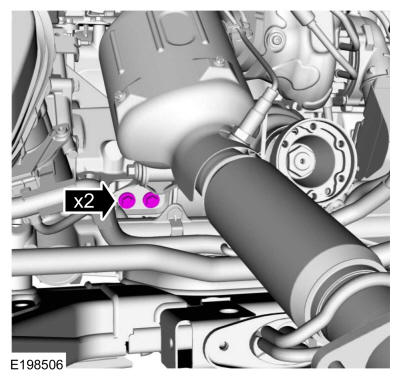

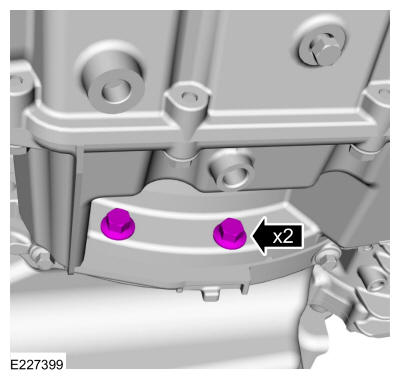

79. Remove the catalytic converter support bracket-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

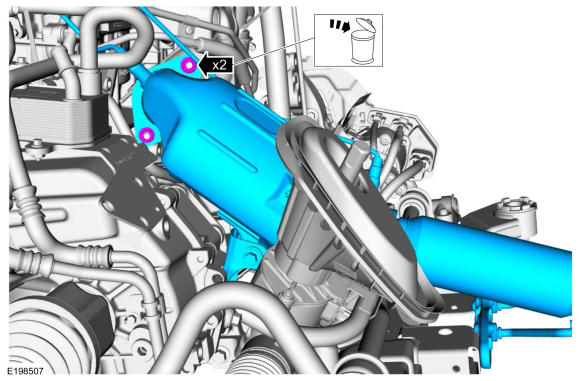

80. • Remove the nuts and the catalytic converter.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

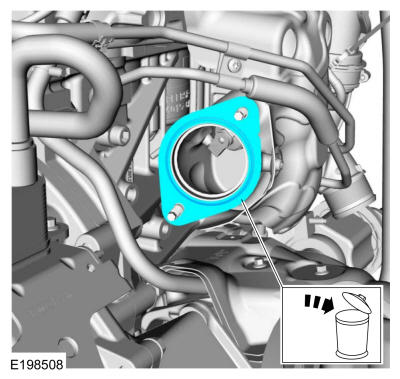

81. NOTE: Clean the catalytic converter-to-turbocharger sealing surfaces.

    Remove and discard the catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

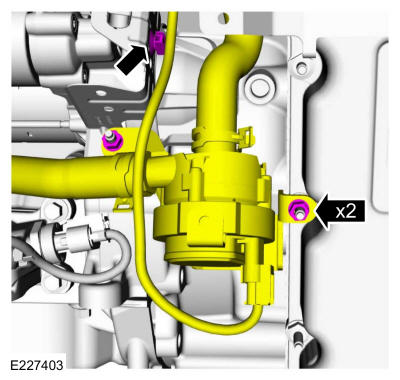

82. If equipped, detach the wiring harness retainer, remove the nuts and position the cabin heater coolant pump aside.

    Courtesy of FORD MOTOR COMPANY

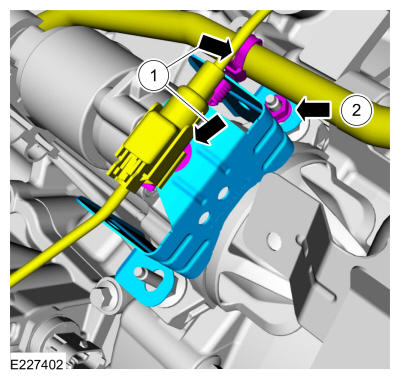

83. NOTE: Vehicle equipped with cabin heater coolant pump, others similar.
    1. Detach the wiring harness retainers.
    2. Remove the nut and the starter motor bracket.

    Courtesy of FORD MOTOR COMPANY

84. Remove the nuts and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

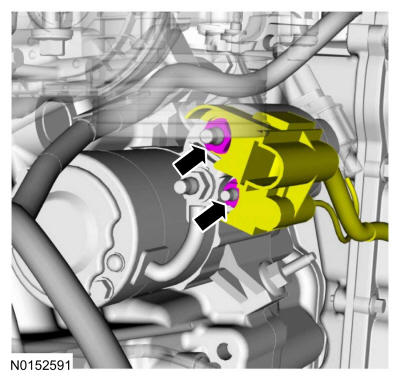

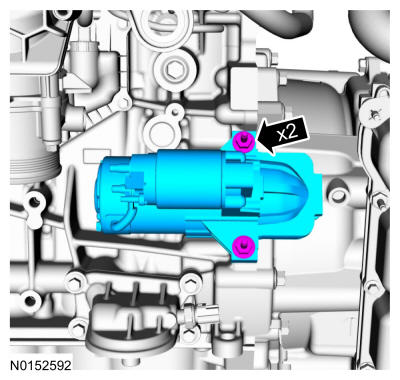

85. Remove the stud bolts and the starter motor.

    Courtesy of FORD MOTOR COMPANY

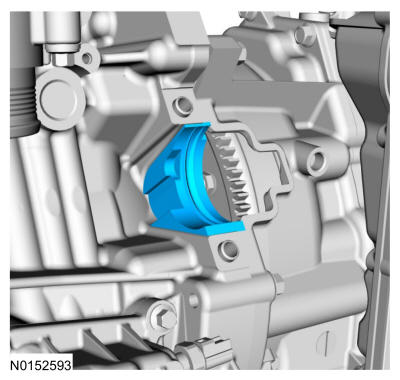

86. Remove the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

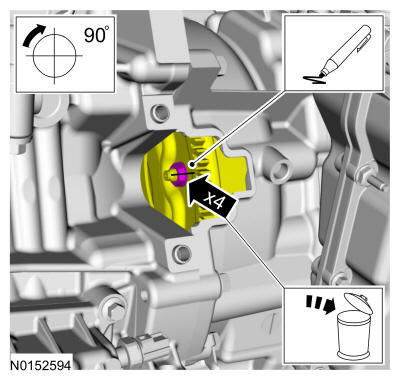

87. NOTE: Only rotate the crankshaft in a clockwise direction.
    NOTE: Index mark one stud and the flexplate for assembly reference.

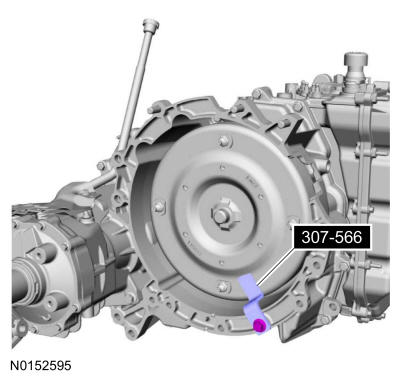

    Remove and discard the 4 torque converter nuts. Use the general equipment: magnetic socket

    Courtesy of FORD MOTOR COMPANY

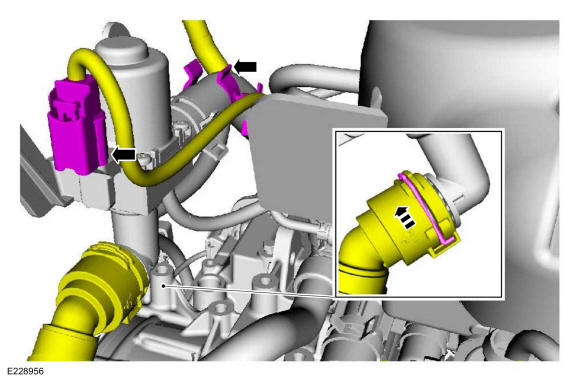

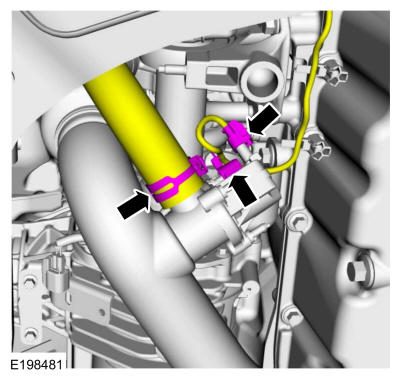

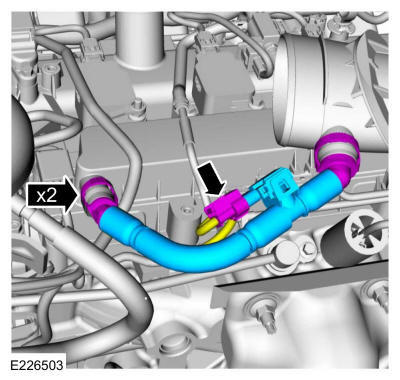

88. • Disconnect the coolant solenoid electrical connector and detach the wiring harness retainer.
    • Slide the clip up and disconnect the coolant hose.

    Courtesy of FORD MOTOR COMPANY

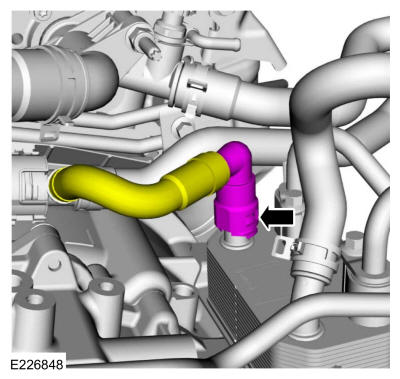

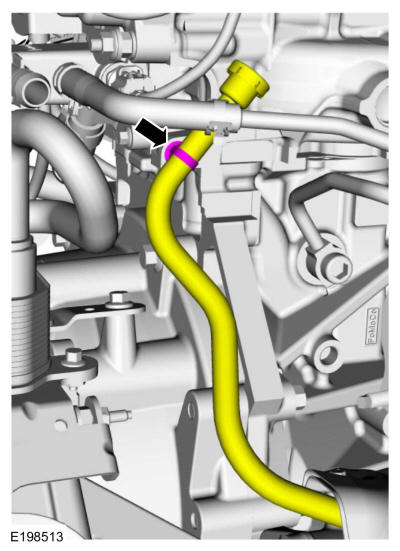

89. Disconnect the coolant hose from the transmission fluid warmer.

    Courtesy of FORD MOTOR COMPANY

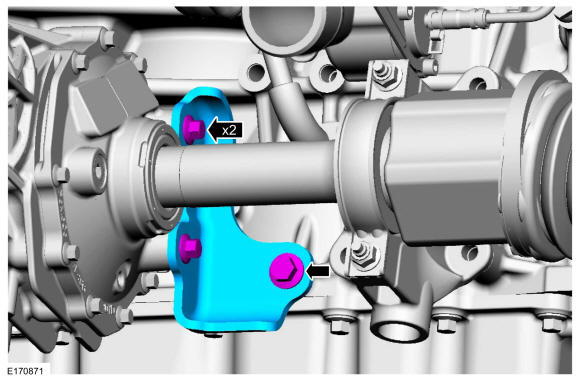

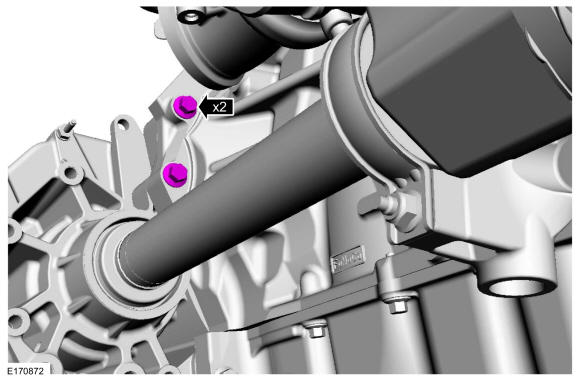

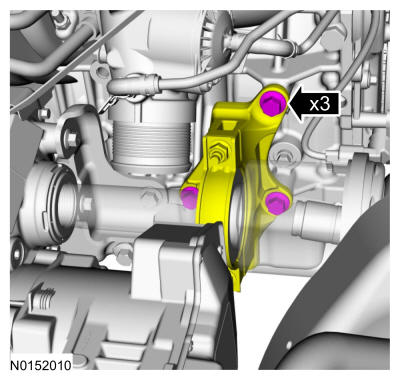

90. Remove the halfshaft support bracket bolts.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

91. Detach transfer case vent hose retainer from the engine block.

    Courtesy of FORD MOTOR COMPANY

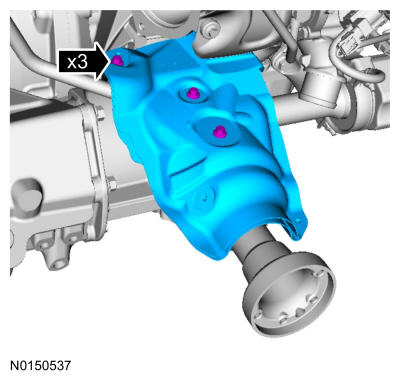

92. Remove the bolts and the transfer case heat shield.

    Courtesy of FORD MOTOR COMPANY

93. Remove the bolts and the transfer case support bracket.

    Courtesy of FORD MOTOR COMPANY

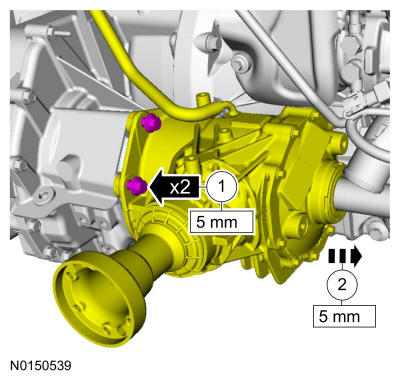

94. Loosen the transfer case bolts 5 mm (0.019) and position the transfer case aside.

    Courtesy of FORD MOTOR COMPANY

95. Remove the engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

    LHD FWD

96. Remove the engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

97. Disconnect the crankcase pressure sensor electrical connector and remove the crankcase vent tube.

    Courtesy of FORD MOTOR COMPANY

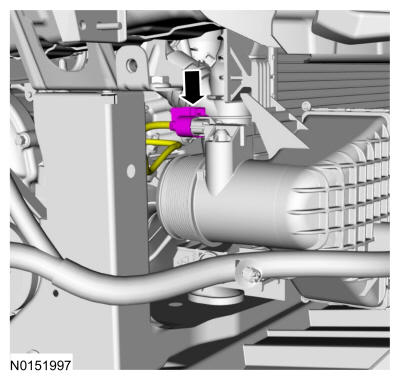

98. • Loosen the turbocharger inlet pipe clamp.
    • Remove the engine appearance cover stud.
    • Remove the bolt and the turbocharger inlet pipe.

    Courtesy of FORD MOTOR COMPANY

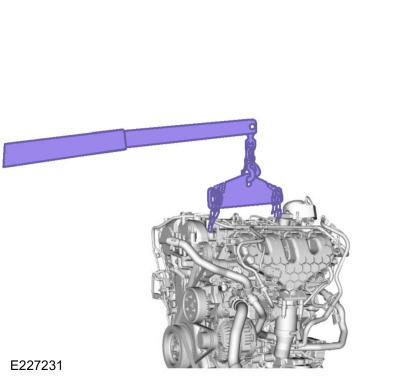

99. Install the engine lift equipment. Use special service tool: 300-OTC1819E 2, 200# floor crane, fold away.

    Courtesy of FORD MOTOR COMPANY

100. Remove. Use the general equipment: adjustable mounting arm

     Courtesy of FORD MOTOR COMPANY

101. 1. Remove the transmission-to-engine bolts.
     2. Remove the transmission-to-engine bolt.
     3. Separate the engine from the transmission.

     Courtesy of FORD MOTOR COMPANY

102. Install special service tool: 307-566 retainer, torque converter.

Courtesy of FORD MOTOR COMPANY
