Variable camshaft timing (VCT) unit: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

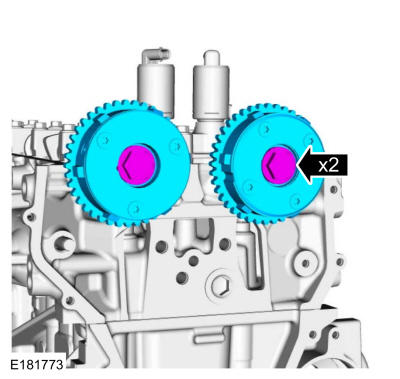

  1. NOTE: Do not tighten the bolts at this time. The bolts will be tightened during the timing chain installation procedure.

    Install the VCT units and the bolts.

    GFD227619Courtesy of FORD MOTOR COMPANY
  2. Install the timing chain. refer to: timing chain .
