Valve cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in neutral, position it on a hoist. refer to: Jacking and lifting - overview .
  2. Remove the upper air cleaner outlet pipe. refer to: Air cleaner outlet pipe .
  3. Remove the oil level indicator.
    GFD227600Courtesy of FORD MOTOR COMPANY
  4. Disconnect the crankcase pressure sensor electrical connector and remove the crankcase vent tube.
    GFD227601Courtesy of FORD MOTOR COMPANY
  5. Remove the retainers and underbody shield.
    GFD227462Courtesy of FORD MOTOR COMPANY

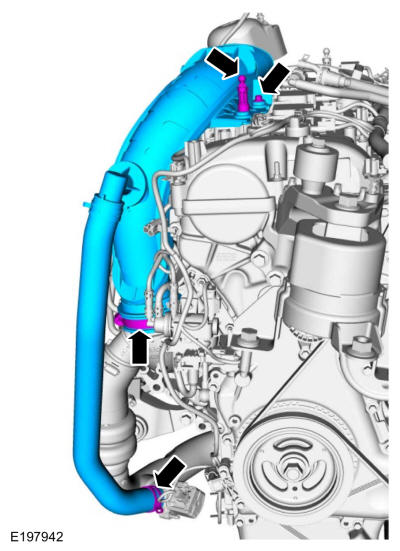

    • Release the clamp and disconnect the CAC bypass hose. Use the general equipment: hose clamp remover/installer

    • Loosen the turbocharger inlet pipe clamp.

    • Remove the engine appearance cover stud.

    • Remove the bolt and the turbocharger inlet pipe.

    GFD227602Courtesy of FORD MOTOR COMPANY
  7. Remove the ignition coil-on-plugs. refer to: Ignition coil-on-plug .
  8. Disconnect the MAPT sensor electrical connector.
    GFD227603Courtesy of FORD MOTOR COMPANY

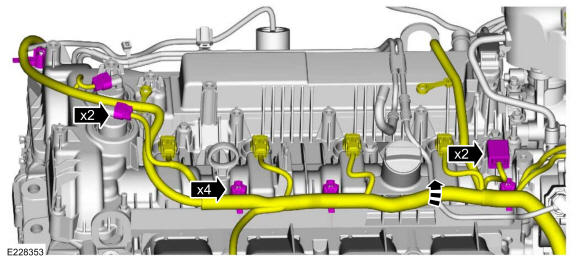

    • Disconnect the VCT oil control solenoid electrical connectors.

    • Disconnect the CMP sensor electrical connectors.

    • Detach the wiring harness retainers and position the harness aside.

    GFD227604Courtesy of FORD MOTOR COMPANY
  10. Remove the bolt and the exhaust CMP sensor.
    GFD227605Courtesy of FORD MOTOR COMPANY
  11. Disconnect the vacuum tubes at the brake vacuum pump.
    GFD227606Courtesy of FORD MOTOR COMPANY
    • Detach the CHT wiring harness retainer.

    • Detach the turbocharger control valve vacuum tube retainers and position aside.

    GFD227607Courtesy of FORD MOTOR COMPANY

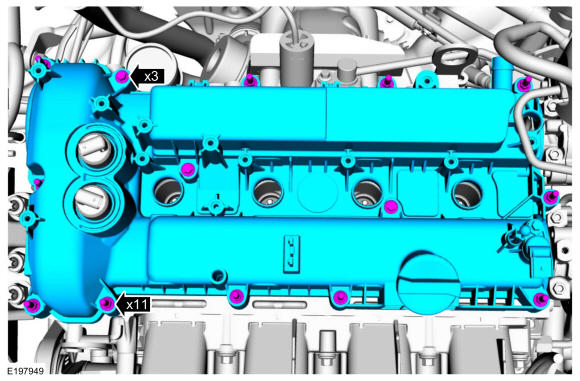

  13. Loosen the fasteners and remove the valve cover.
    GFD227608Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the valve cover gasket.
    GFD227609Courtesy of FORD MOTOR COMPANY
  15. NOTE: The VCT solenoid seals should only be replaced if they are damaged.

    Inspect the VCT oil control solenoid seals for damaged. Use special service tool: 205-153 (T80T-4000-W) handle. 303-1247 VCT spark plug tube seal remover and installer.

    GFD227610Courtesy of FORD MOTOR COMPANY
  16. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD227611Courtesy of FORD MOTOR COMPANY

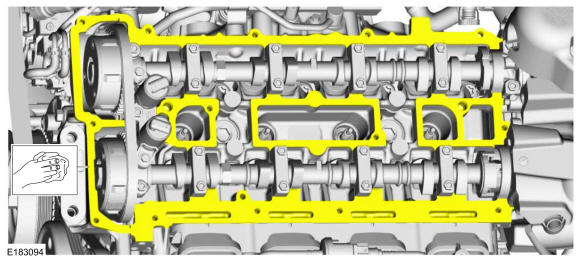

  17. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

GFD227612Courtesy of FORD MOTOR COMPANY
