Valve cover: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

    If removed, using the special tools, install the VCT oil control solenoid seals. Use special service tool: 205-153 (T80T-4000-W) handle.303-1247 VCT spark plug tube seal remover and installer.

    GFD227613Courtesy of FORD MOTOR COMPANY
  2. Install a new valve cover gasket.
    GFD227614Courtesy of FORD MOTOR COMPANY

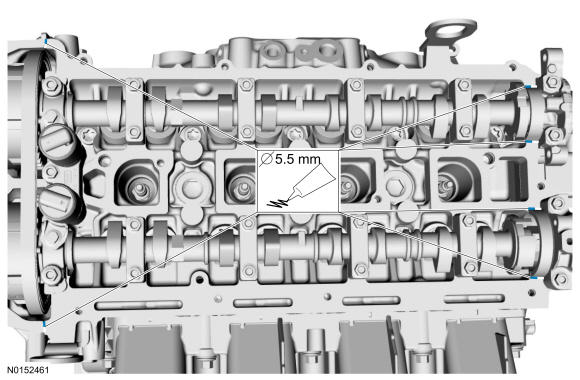

  3. Apply a 5.5 mm (0.22 in) bead of silicone sealant in the 6 places shown.

    Material: motorcraft ® silicone gasket and sealant / TA-30 (WSE-M4G323-A4)

    GFD227615Courtesy of FORD MOTOR COMPANY
  4. NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Install the valve cover and tighten the fasteners.

    Torque: 89 lb.in (10 nm)

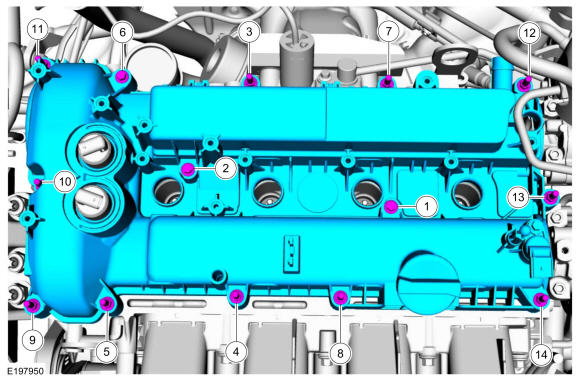

    Fig 1: Valve Cover Tightening Sequence
    GFD227616Courtesy of FORD MOTOR COMPANY

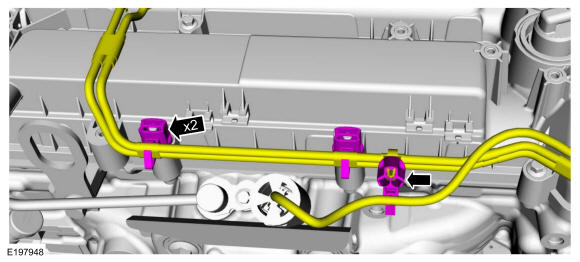

    • Position and attach the turbocharger control valve vacuum tube retainers.

    • Attach the CHT wiring harness retainer.

    GFD227607Courtesy of FORD MOTOR COMPANY

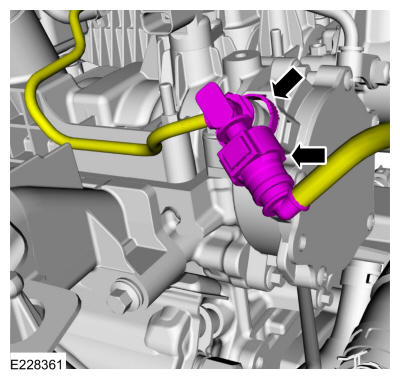

  6. Connect the vacuum tubes at the brake vacuum pump.
    GFD227606Courtesy of FORD MOTOR COMPANY

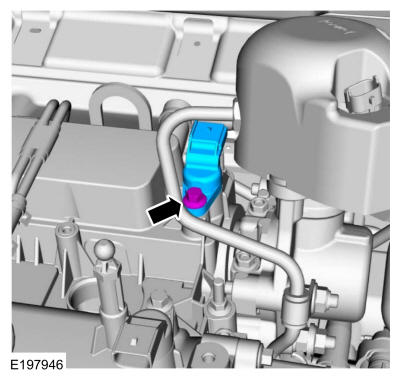

  7. Install the exhaust CMP sensor and the bolt.

    Torque: 62 lb.in (7 nm)

    GFD227605Courtesy of FORD MOTOR COMPANY

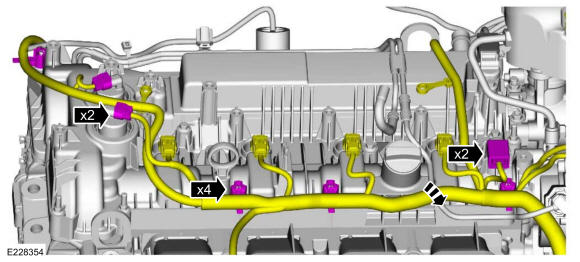

    • Position the wiring harness and attach the retainers.

    • Connect the CMP sensor electrical connectors.

    • Connect the VCT oil control solenoid electrical connectors.

    GFD227617Courtesy of FORD MOTOR COMPANY

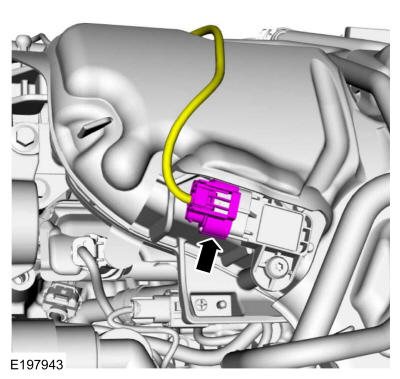

  9. Connect the MAPT sensor electrical connector.
    GFD227603Courtesy of FORD MOTOR COMPANY
  10. Install the ignition coil-on-plugs. refer to: Ignition coil-on-plug .

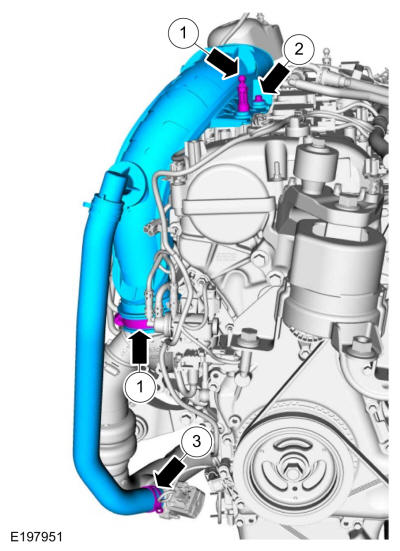

    1. Install the turbocharger inlet pipe, engine appearance cover stud and tighten clamp and stud.

      Torque: 44 lb.in (5 nm)

    2. Install the turbocharger inlet pipe bolt.

      Torque: 97 lb.in (11 nm)

    3. Connect the CAC bypass hose. Use the general equipment: hose clamp remover/installer
    GFD227618Courtesy of FORD MOTOR COMPANY
  12. Install the underbody shield and the retainers.
    GFD227462Courtesy of FORD MOTOR COMPANY

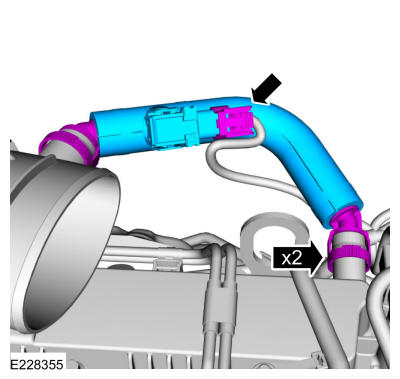

  13. Install the crankcase vent tube and connect the crankcase pressure sensor electrical connector.
    GFD227601Courtesy of FORD MOTOR COMPANY
  14. Install the oil level indicator.
    GFD227600Courtesy of FORD MOTOR COMPANY
  15. Install the upper air cleaner outlet pipe. refer to: Air cleaner outlet pipe .
