Oil pump: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
Install the oil pump and the bolts.
Torque:

Stage 1: 89 lb.in (10 nm)

Stage 2: 177 lb.in (20 nm)

Fig 1: Engine Oil Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the oil pump sprocket and bolt.
Torque: 18 lb.ft (25 nm)

Courtesy of FORD MOTOR COMPANY
1. WARNING: Take extra care when handling the compressed spring.

  Install the oil pump drive chain, tensioner and the shoulder bolts.

  Torque: 89 lb.in (10 nm)
2. Hook the tensioner spring around the shoulder bolt.
Courtesy of FORD MOTOR COMPANY
Install the oil screen and pickup tube o-ring seal.

Courtesy of FORD MOTOR COMPANY
Install the oil screen and pickup tube and the bolts.
Torque: 89 lb.in (10 nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm bead of silicone sealant.

Material: motorcraft ® silicone gasket and sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Align the front surface of the oil pan flush with the front surface of the engine block. Use the general equipment: round-ended steel rule

Courtesy of FORD MOTOR COMPANY
Tighten the bolts in sequence shown.
Torque: 18 lb.ft (25 nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan bolt.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY

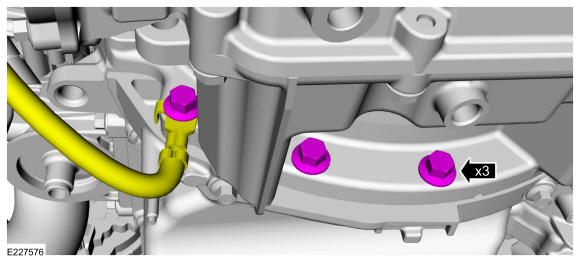

Position the ground cable and install the transmission-to-oil pan bolts.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY
Lubricate the oil filter seal with clean engine oil and install.
Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

Torque:

Stage 1: 71 lb.in (8 nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY

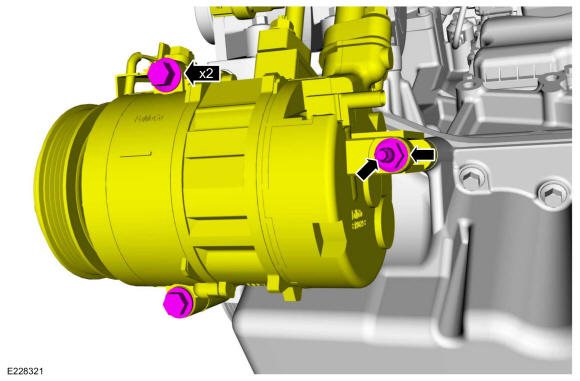

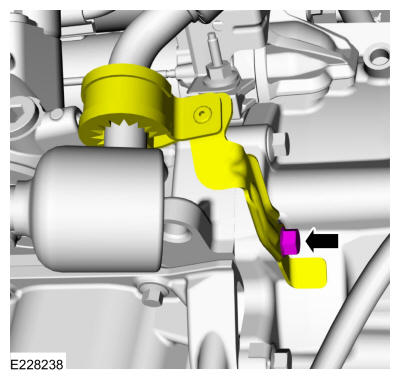

- Position the a/c compressor and install the bolts.
- Install the stud.
  Torque: 80 lb.in (9 nm)
- Install the nut.
- Tighten the bolts and the nut.
  Torque: 18 lb.ft (25 nm)
Courtesy of FORD MOTOR COMPANY

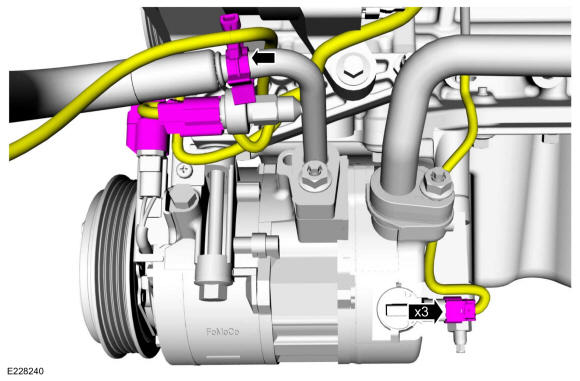

Connect the wiring harness electrical connectors and the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Position the a/c tube bracket and install the transmission-to-engine bolt.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY

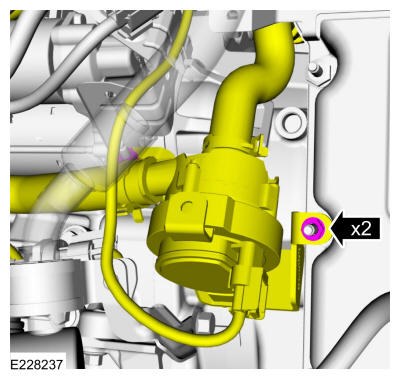

If equipped, position the cabin heater coolant pump and install the nuts.
Torque: 89 lb.in (10 nm)

Courtesy of FORD MOTOR COMPANY

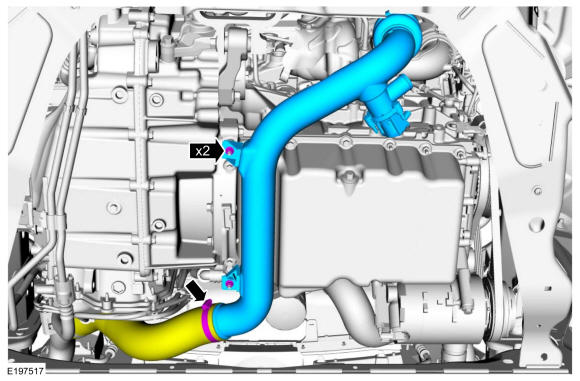

1. Install the CAC inlet tube and the nuts.
  Torque: 97 lb.in (11 nm)
2. Tighten the clamp.
  Torque: 44 lb.in (5 nm)
Courtesy of FORD MOTOR COMPANY

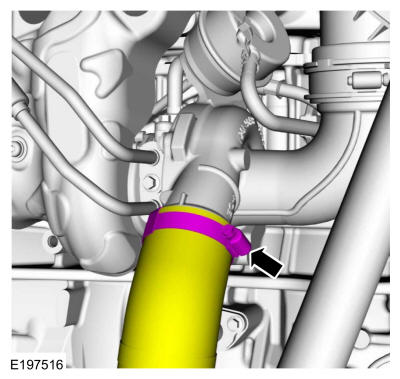

Tighten the CAC inlet tube clamp.
Torque: 44 lb.in (5 nm)

Courtesy of FORD MOTOR COMPANY

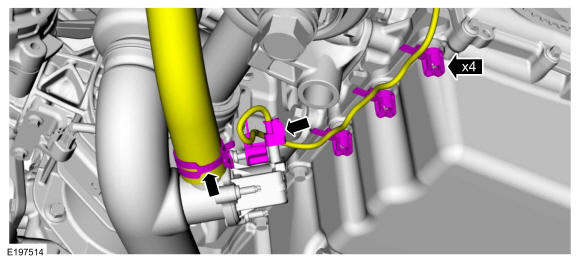

Connect the bypass hose, the electrical connector and the wire retainers. Use the general equipment: hose clamp remover/installer

Courtesy of FORD MOTOR COMPANY
Position the jack and wooden block under the front of the oil pan to support the engine. Use the general equipment: trolley jack use the general equipment: wooden block

Courtesy of FORD MOTOR COMPANY
Remove special service tool: 303-F072 support bar, engine.

Courtesy of FORD MOTOR COMPANY
Torque: 71 lb.in (8 nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: engine front cover .
2. Refer to: Cowl panel .
Connect the battery negative battery cable. refer to: Battery disconnect and connect .
Fill the engine with clean engine oil. refer to: specifications .
Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
