Oil pan: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

2wd/4wd

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm bead of silicone sealant.

Material: motorcraft ® metal surface prep wipes / ZC-31-B

Material: motorcraft ® silicone gasket and sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the oil pan and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

Install the engine front cover-to-oil pan bolts.

Torque: 89 lb.in (10 nm)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts in sequence shown.
Torque: 18 lb.ft (25 nm)

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

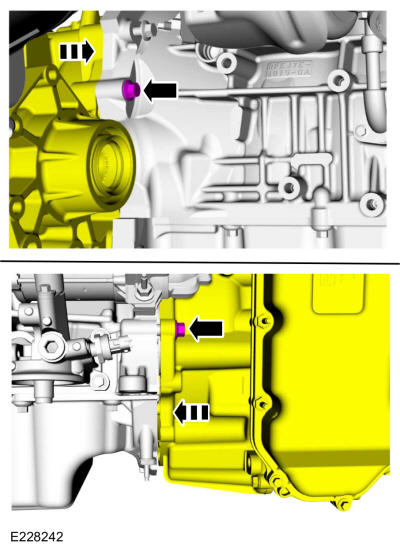

Alternate tightening the LH transmission-to-engine and rh engine-to-transmission bolts to draw the transmission and engine together.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY
Tighten the engine-to-transmission bolt.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan-to-transmission bolt.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY
Position the ground cable and install the transmission-to-oil pan bolts.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY

4wd
Install the transfer case. refer to: Transfer case .
2wd/4wd
Lubricate the oil filter seal with clean engine oil and install.
Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

Torque:

Stage 1: 71 lb.in (8 nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
- Position the a/c compressor and install the bolts.
- Install the stud.
  Torque: 80 lb.in (9 nm)
- Install the nut.
- Tighten the bolts and the nut.
  Torque: 18 lb.ft (25 nm)
Courtesy of FORD MOTOR COMPANY
Connect the wiring harness electrical connectors and the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Position the a/c tube bracket and install the transmission-to-engine bolt.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY
If equipped, position the cabin heater coolant pump and install the nuts.
Torque: 89 lb.in (10 nm)

Courtesy of FORD MOTOR COMPANY

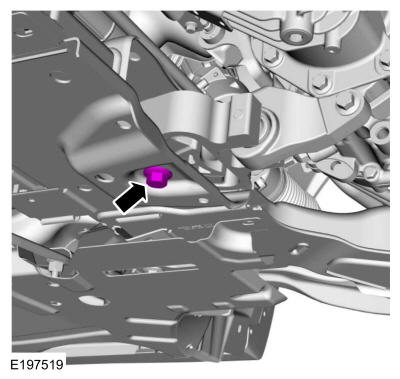

Install a new engine roll restrictor bolt.
Torque: 111 lb.ft (150 nm)

Courtesy of FORD MOTOR COMPANY
1. Install the catalytic converter support bracket bolts.
  Torque: 18 lb.ft (25 nm)
2. Tighten the catalytic converter support bracket bolt.
  Torque: 35 lb.ft (48 nm)
Courtesy of FORD MOTOR COMPANY
1. Install the CAC inlet tube and the nuts.
  Torque: 97 lb.in (11 nm)
2. Tighten the clamp.
  Torque: 44 lb.in (5 nm)
Courtesy of FORD MOTOR COMPANY
Tighten the CAC inlet tube clamp.
Torque: 44 lb.in (5 nm)

Courtesy of FORD MOTOR COMPANY
Install the a/c compressor belt. refer to: Air conditioning (a/c) compressor belt .
Connect the bypass hose, the electrical connector and the wire retainers. Use the general equipment: hose clamp remover/installer

Courtesy of FORD MOTOR COMPANY
- Install the stone guard and the retainers.
- Install the underbody shield and the retainers.
Courtesy of FORD MOTOR COMPANY
Tighten the transmission-to-engine bolts.
Torque: 35 lb.ft (48 nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Air cleaner .
2. Upper air cleaner outlet pipe. refer to: Air cleaner outlet pipe .
Install the oil indicator.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: motorcraft ® silicone brake caliper grease and dielectric compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. refer to: specifications .
Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
