Removal And Installation: Flexplate: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in neutral, position it on a hoist. refer to: Jacking and lifting - overview .
  2. Remove the automatic transmission. refer to: Transmission .
    • NOTE: Do not reuse the flexplate bolts.

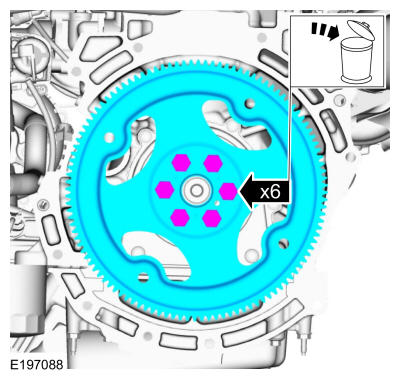

      Remove the bolts and the flexplate.

    • Discard the bolts.

GFD227531Courtesy of FORD MOTOR COMPANY
