Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

- NOTE: Special bolts are used for installation. Do not use standard bolts.

  Install the flexplate and the new bolts finger-tight.
- Install special service tool: 303-103 (T74P-6375-A) holding tool, flywheel.
- Tighten the bolts in sequence shown.
  Torque:

  Stage 1: 37 lb.ft (50 nm)

  Stage 2: 59 lb.ft (80 nm)

  Stage 3: 83 lb.ft (112 nm)

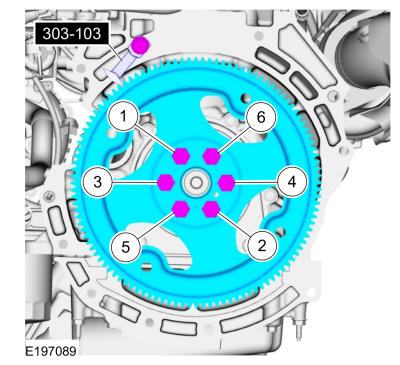

Fig 1: Flex Plate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the automatic transmission. refer to: Transmission .
Use the powertrain control module (PCM) misfire monitor profile correction routine in the diagnostic scan tool.
