Section 1230 (Engine - 2.0L ECOBOOST (177KW/240PS) - Mi4): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special tool(s) / general equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1819E 2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Courtesy of FORD MOTOR COMPANY	502-002 (T94P-2100-AH) Alignment Pins, Subframe
Magnetic Socket
Adjustable Mounting Arm
Hose Clamp Remover/Installer

Materials

LHD AWD/LHD FWD

1. Remove special service tool: 307-566 retainer, torque converter.

   Material: motorcraft ® multi-purpose grease spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

2. Align the torque converter stud marked during removal with the flexplate and position the engine onto the transmission.

   Courtesy of FORD MOTOR COMPANY

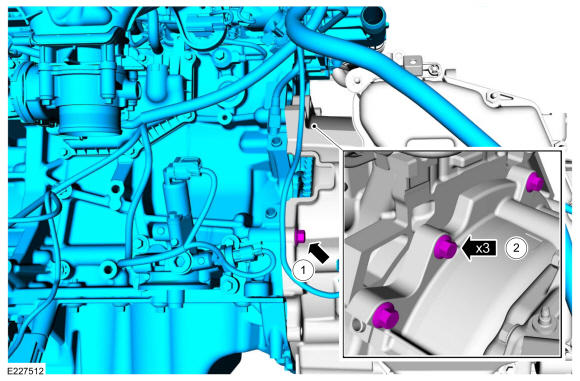

3. 1. Install the transmission-to-engine bolt.

      Torque: 35 lb.ft (48 nm)

   2. Install the transmission-to-engine bolts.

      Torque: 35 lb.ft (48 nm)

   Courtesy of FORD MOTOR COMPANY

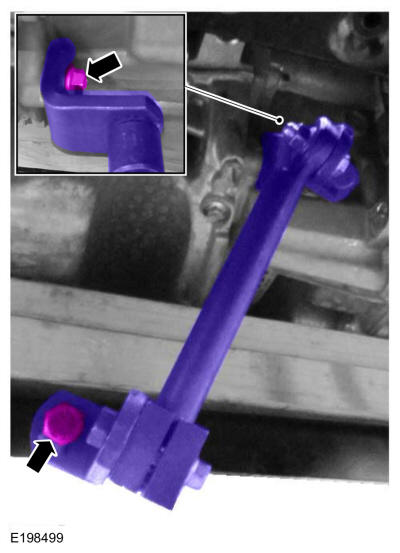

4. Install. Use the general equipment: adjustable mounting arm

   Courtesy of FORD MOTOR COMPANY

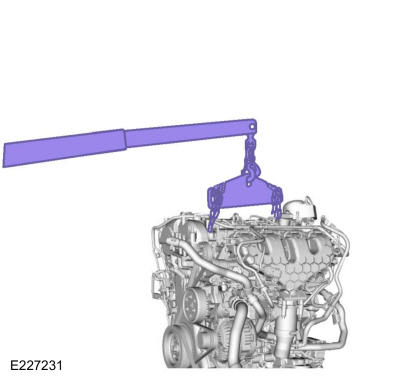

5. Remove the engine lift equipment. Use special service tool: 300-OTC1819E 2, 200# floor crane, fold away.

   Courtesy of FORD MOTOR COMPANY

6. 1. Install the turbocharger inlet pipe, engine appearance cover stud and tighten the clamp.

      Torque: 44 lb.in (5 nm)

   2. Install the turbocharger inlet pipe bolt.

      Torque: 97 lb.in (11 nm)

   Courtesy of FORD MOTOR COMPANY

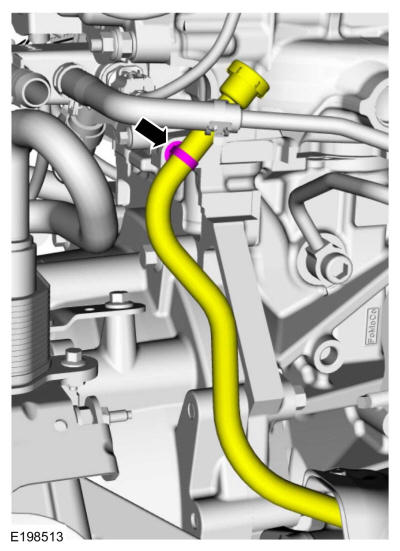

7. Install the crankcase vent tube and connect the crankcase pressure sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

   LHD FWD

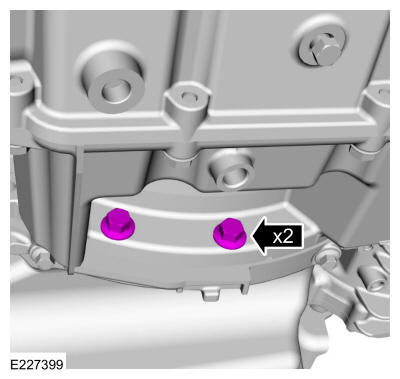

8. Install the engine-to-transmission bolts.

   Torque: 35 lb.ft (48 nm)

   Courtesy of FORD MOTOR COMPANY

   LHD AWD

9. Install the engine-to-transmission bolts.

   Torque: 35 lb.ft (48 nm)

   Courtesy of FORD MOTOR COMPANY

10. Tighten the transfer case bolts.

    Torque: 46 lb.ft (63 nm)

    Courtesy of FORD MOTOR COMPANY

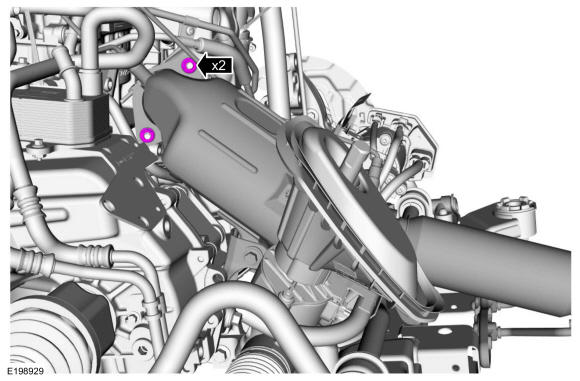

11. Install the transfer case support bracket and the bolts.

    Torque:

    1: 18 lb.ft (25 nm)

    2: 46 lb.ft (63 nm)

    Courtesy of FORD MOTOR COMPANY

12. Install the transfer case heat shield and the bolts.

    Torque: 97 lb.in (11 nm)

    Courtesy of FORD MOTOR COMPANY

13. Attach the transfer case vent hose retainer to the engine block.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

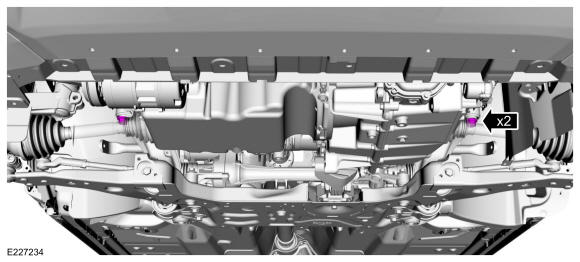

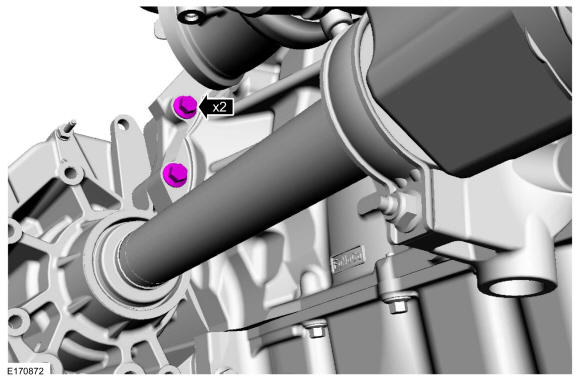

14. Install the rh halfshaft bearing bracket bolts.

    Torque: 35 lb.ft (48 nm)

    Courtesy of FORD MOTOR COMPANY

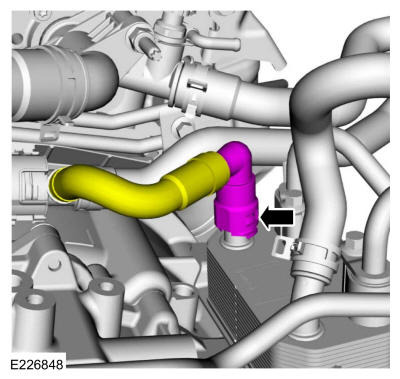

15. Connect the coolant hose to the transmission fluid warmer.

    Courtesy of FORD MOTOR COMPANY

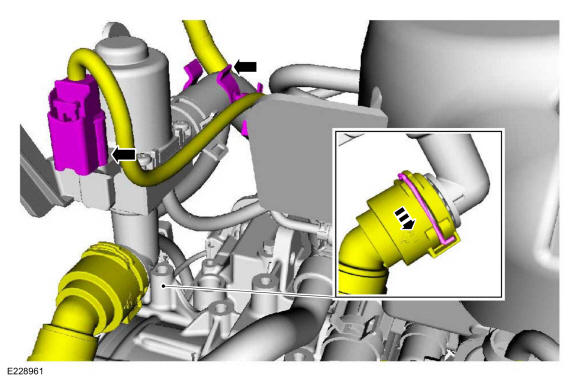

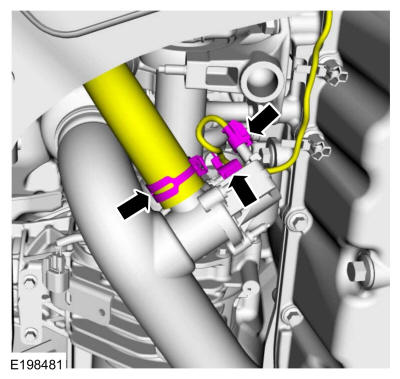

16. • Connect the coolant hose and slide the clip down.
    • Connect the coolant solenoid electrical connector and attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

17. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install new torque converter nuts. Use the general equipment: magnetic socket

    Torque: 30 lb.ft (40 nm)

    Courtesy of FORD MOTOR COMPANY

18. Install the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

19. Install the starter motor and the stud bolts.

    Torque: 26 lb.ft (35 nm)

    Courtesy of FORD MOTOR COMPANY

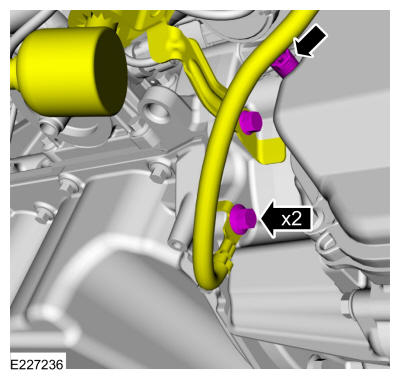

20. Position the starter motor wiring harness and install the nuts.

    Torque:

    1: 106 lb.in (12 nm)

    2: 53 lb.in (6 nm)

    Courtesy of FORD MOTOR COMPANY

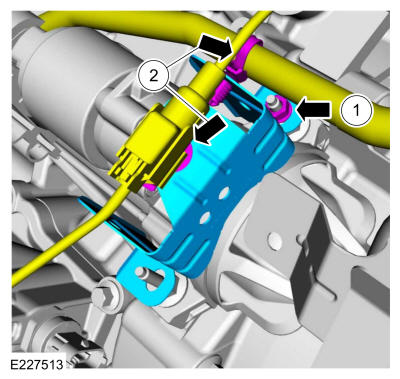

21. NOTE: Vehicle equipped with cabin heater coolant pump, others similar.
    1. Install the starter motor bracket and the nut.

       Torque: 89 lb.in (10 nm)

    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

22. 1. If equipped, install the start stop cabin heater coolant pump and the nuts.

       Torque: 89 lb.in (10 nm)

    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

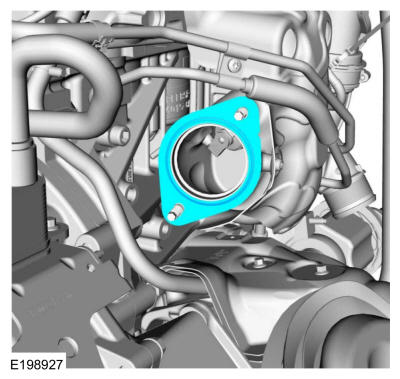

23. Install a new catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Do not tighten the new catalytic converter-to-turbocharger nuts at this time.

    Install the catalytic converter and the new nuts finger-tight.

    Courtesy of FORD MOTOR COMPANY

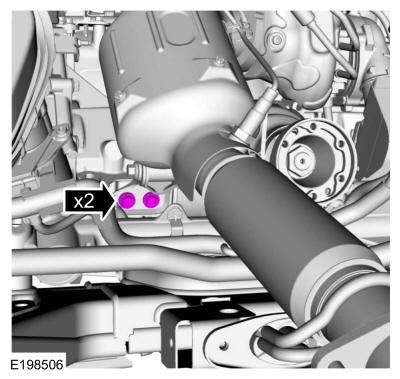

25. NOTE: Do not tighten the catalytic converter support bracket-to-transmission bolts at this time.

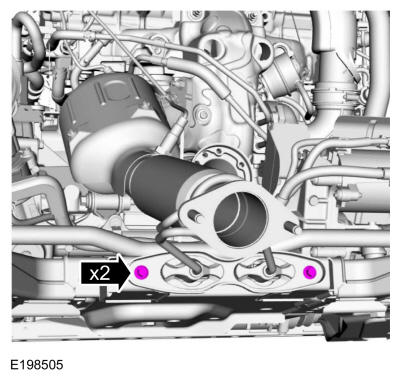

    Install the catalytic converter support bracket-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

26. Tighten.

    Torque: 30 lb.ft (40 nm)

    Courtesy of FORD MOTOR COMPANY

27. Tighten.

    Torque: 18 lb.ft (25 nm)

    Courtesy of FORD MOTOR COMPANY

28. Install the catalytic converter support bracket bolts.

    Torque: 18 lb.ft (25 nm)

    Courtesy of FORD MOTOR COMPANY

29. Connect the HO2S and catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

30. Install special service tool: 502-002 (T94P-2100-AH) alignment pins, subframe.

    Courtesy of FORD MOTOR COMPANY

31. NOTE: Make sure the struts go into the knuckles when the powertrain and subframe assembly is raised.
    NOTE: Make sure the transmission cooler tubes are in place when raised.

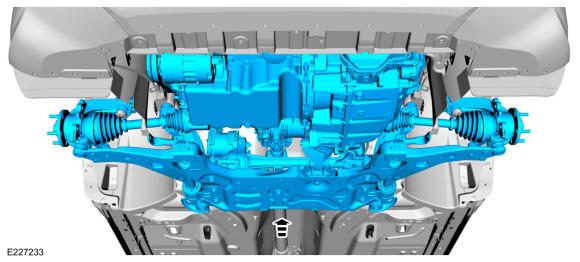

    Using the powertrain lift, raise the powertrain and subframe assembly.

    Courtesy of FORD MOTOR COMPANY

32. 1. Install the engine mount and new nuts.

       Torque: 59 lb.ft (80 nm)

    2. Install new stud bolts.

       Torque: 66 lb.ft (90 nm)

    Courtesy of FORD MOTOR COMPANY

33. Install the transmission support insulator, apply the thread lock sealant and install the bolt.

    Material motorcraft ® threadlock and sealer / TA-25-B

    Torque: 109 lb.ft (148 nm)

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

    Install the forward subframe bolts.

    Torque: 85 lb.ft (115 nm)

    Courtesy of FORD MOTOR COMPANY

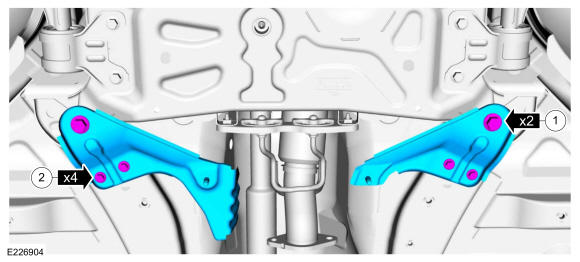

35. 1. Install the subframe support bracket and the bolts in 2 stages.

       Torque:

       Stage 1: 103 lb.ft (140 nm)

       Stage 2: 180 °

    2. Install the subframe support bracket bolts.

       Torque: 177 lb.in (20 nm)

    Courtesy of FORD MOTOR COMPANY

36. Remove special service tool: 502-002 (T94P-2100-AH) alignment pins, subframe.

    Courtesy of FORD MOTOR COMPANY

37. Remove use the general equipment: adjustable mounting arm

    Courtesy of FORD MOTOR COMPANY

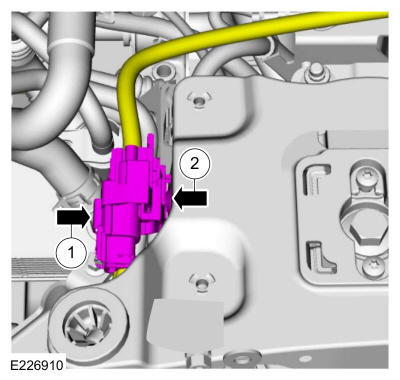

38. Connect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

39. • Attach the wiring harness retainer.
    • Install the PCM housing and the bolts.

      Torque: 89 lb.in (10 nm)

    Courtesy of FORD MOTOR COMPANY

40. Install the PCM and connect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

41. Attach the wiring harness grommet.

    Courtesy of FORD MOTOR COMPANY

42. Install the PCM cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

43. NOTE: LH shown, rh similar.

    Both sides. install the subframe support bracket, bolts, studs and the nuts.

    Torque: 18 lb.ft (25 nm)

    Courtesy of FORD MOTOR COMPANY

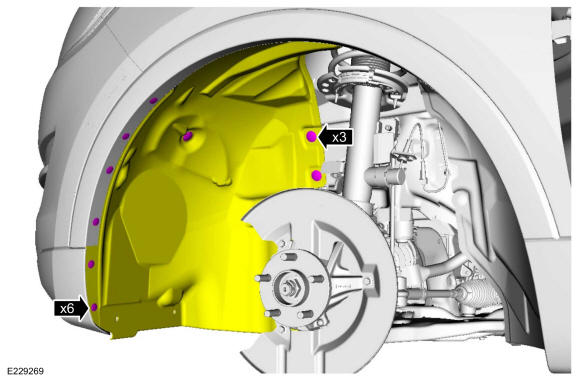

44. Position the splash shield and install the retainers.

    Courtesy of FORD MOTOR COMPANY

45. Install the a/c compressor belt. refer to: Air conditioning (a/c) compressor belt .
46. NOTE: Front bumper cover removed for clarity.

    Connect the turbocharger boost pressure and charge air temperature sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

47. Position the splash shield and install the retainers.

    Courtesy of FORD MOTOR COMPANY

48. Install the engine-to-transmission bolt.

    Torque: 35 lb.ft (48 nm)

    Courtesy of FORD MOTOR COMPANY

49. Install the transmission-to-engine bolts.

    Torque: 35 lb.ft (48 nm)

    Courtesy of FORD MOTOR COMPANY

50. • Position a/c tube and install the bolt.

      Torque: 35 lb.ft (48 nm)

    • Position the ground cable and install the bolt.

      Torque: 35 lb.ft (48 nm)

    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Make sure the struts are seated into the knuckles.
    NOTE: LH shown, rh similar.
    NOTE: Install new bolts on both sides.

    Both sides. install the new wheel knuckle to strut bolt and tighten in 2 stages.

    Torque:

    Stage 1: 59 lb.ft (80 nm)

    Stage 2: 180 °

    Courtesy of FORD MOTOR COMPANY

52. Install the front brake disc. refer to: Brake disc .
53. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.
    NOTE: LH shown, rh similar.
    NOTE: Install new nuts on both sides.

    Both sides. position the front stabilizer bar link and install the nut.

    Torque: 35 lb.ft (48 nm)

    Courtesy of FORD MOTOR COMPANY

54. NOTE: LH shown, rh similar.

    Both sides. connect the wheel speed sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

55. If equipped, install the rh and LH front suspension height sensors. refer to: Front suspension height sensor .

    LHD AWD

56. Tighten the transfer case bolts.

    Torque: 46 lb.ft (63 nm)

    Courtesy of FORD MOTOR COMPANY

57. Align the index-mark on driveshaft to the rear axle pinion flange.

    Courtesy of FORD MOTOR COMPANY

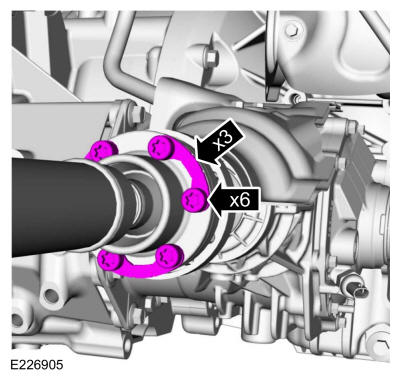

58. NOTE: Install new bolts.

    Install the new driveshaft-to-pinion flange bolts.

    Torque: 26 lb.ft (35 nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

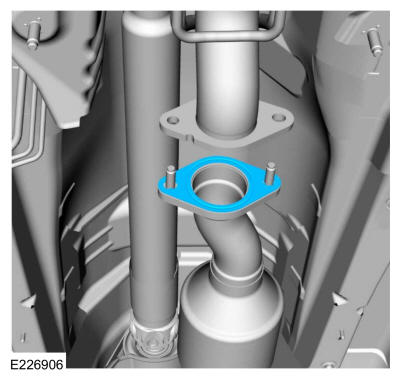

59. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Install the new muffler inlet pipe gasket.

    Courtesy of FORD MOTOR COMPANY

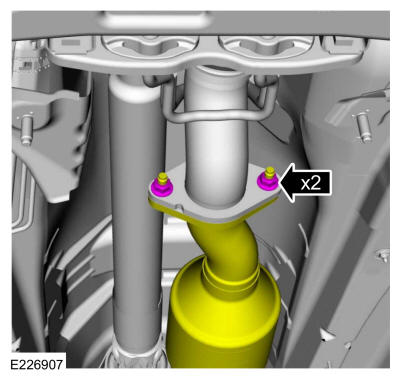

60. Position the muffler inlet pipe and install the nuts.

    Torque: 35 lb.ft (48 nm)

    Courtesy of FORD MOTOR COMPANY

61. If equipped, connect the exhaust pressure sensor hose. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

62. If equipped, connect the exhaust gas temperature sensor electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

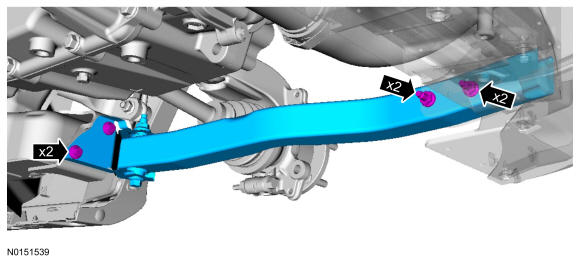

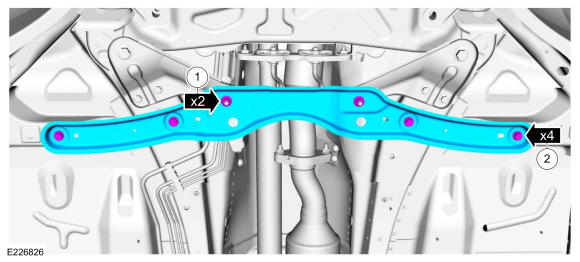

63. Install the cross support and the bolts.

    Torque: 177 lb.in (20 nm)

    Courtesy of FORD MOTOR COMPANY

64. Lubricate the oil filter sealing surface and install.

    Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

    Torque:

    Stage 1: 71 lb.in (8 nm)

    Stage 2: 180 °

    Courtesy of FORD MOTOR COMPANY

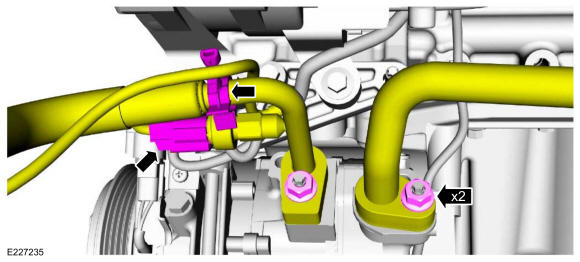

65. 1. NOTE: Use new o-ring seals and gasket seals.

       Connect the a/c tubes and install the nuts.

       Torque: 133 lb.in (15 nm)

    2. Connect the a/c pressure sensor electrical connector and the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

66. Install the CAC tube and tighten the clamps.

    Torque: 44 lb.in (5 nm)

    Courtesy of FORD MOTOR COMPANY

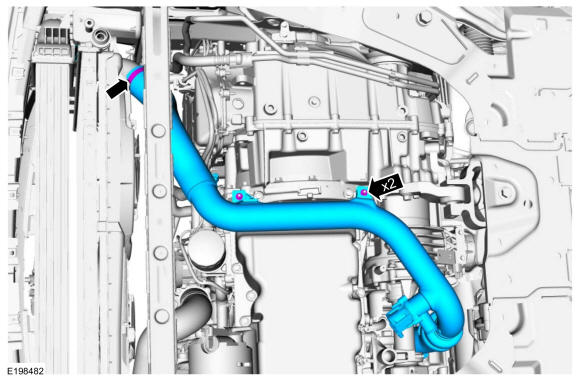

67. 1. Install the CAC tube and the nuts.

       Torque: 97 lb.in (11 nm)

    2. Tighten the clamp.

       Torque: 44 lb.in (5 nm)

    Courtesy of FORD MOTOR COMPANY

68. Connect the bypass hose, the electrical connector and the wire retainer. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

69. Position the CAC tube and tighten the clamp.

    Torque: 44 lb.in (5 nm)

    Courtesy of FORD MOTOR COMPANY

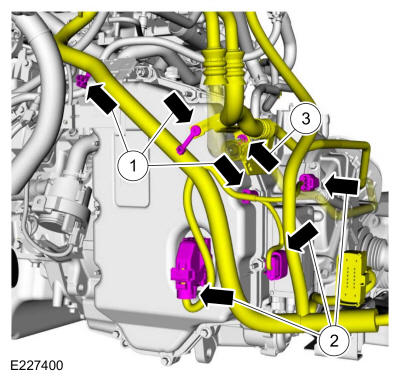

70. • Position the transmission tube bracket and install the nut.

      Torque: 89 lb.in (10 nm)

    • Connect the wiring harness electrical connectors.
    • Attach the wiring harness connectors.

    Courtesy of FORD MOTOR COMPANY

71. Install the transmission tubes to bottom side of transmission fluid cooler bypass valve.

    Torque: 22 lb.ft (30 nm)

    Courtesy of FORD MOTOR COMPANY

72. Install the front wheels and tires. refer to: Wheel and tire .

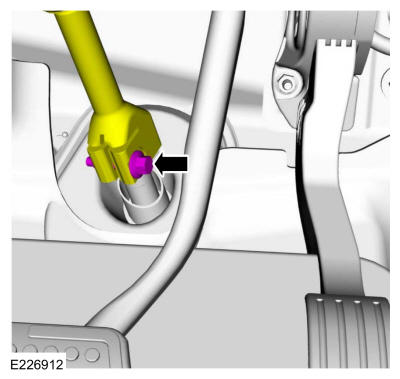

73. • Position the transmission shift cable and install the bolts.

      Torque: 18 lb.ft (25 nm)

    • Attach the transmission shift cable.

    Courtesy of FORD MOTOR COMPANY

74. 1. Connect the heater hoses.
    2. Rotate the heater hose tabs.

    Courtesy of FORD MOTOR COMPANY

75. Connect the upper radiator hose and retainer. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

76. Connect the lower radiator hose to the thermostat housing. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

77. Install the bracket and the nut.

    Torque: 18 lb.ft (25 nm)

    Courtesy of FORD MOTOR COMPANY

78. Position the transmission control and install the bolts.

    Torque: 18 lb.ft (25 nm)

    Courtesy of FORD MOTOR COMPANY

79. Install the transmission control bracket nut.

    Torque: 133 lb.in (15 nm)

    Courtesy of FORD MOTOR COMPANY

80. Install the degas bottle. refer to: Degas bottle .
81. Connect the coolant hoses. Use the general equipment: hose clamp remover/installer

    Courtesy of FORD MOTOR COMPANY

82. 1. Connect the fuel hose spring lock coupling. refer to: Spring lock couplings .
    • Connect the fuel pressure sensor electrical connector.
    • Connect the EVAP canister purge valve quick release coupling. refer to: Quick release coupling .

    Courtesy of FORD MOTOR COMPANY

83. Connect the vacuum tube and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

84. • Attach the wiring harness retainer.
    • Install the ground wire and bolt.

      Torque: 106 lb.in (12 nm)

    Courtesy of FORD MOTOR COMPANY

85. Position the ground cables and install the bolt. Attach the wiring harness retainer.

    Torque: 106 lb.in (12 nm)

    Courtesy of FORD MOTOR COMPANY

86. • Install the battery tray bracket and the nuts.

      Torque: 35 lb.ft (48 nm)

    • If equipped, attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

87. Install the wiring harness and the nut.

    Torque: 80 lb.in (9 nm)

    Courtesy of FORD MOTOR COMPANY

88. 1. Connect the wiring harness electrical connector.
    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

89. Install the battery tray. refer to: Battery tray .
90. Position the wiring harness and install the nuts.

    Torque:

    1: 44 lb.in (5 nm)

    2: 106 lb.in (12 nm)

    Courtesy of FORD MOTOR COMPANY

91. Connect the main wiring harness to the BJB and attach the retainers.

    Courtesy of FORD MOTOR COMPANY

92. Install the following items:
    1. Upper air cleaner outlet pipe. refer to: Air cleaner outlet pipe .
    2. Refer to: Air cleaner .

93. Install the BJB cover.

    Courtesy of FORD MOTOR COMPANY

94. If equipped with block heater, attach the retainers.

    Courtesy of FORD MOTOR COMPANY

95. Install the underbody side panels and the retainers.

    Courtesy of FORD MOTOR COMPANY

96. • Install the stone guard and the retainers.
    • Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

97. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Attach the steering column shaft to steering input shaft and install the new bolt.

    Torque: 21 lb.ft (28 nm)

    Courtesy of FORD MOTOR COMPANY

98. Remove the holding tool.

    Courtesy of FORD MOTOR COMPANY

99. Connect the battery ground cable. refer to: Battery disconnect and connect .
100. Fill the engine with clean engine oil. refer to: specifications .

     Courtesy of FORD MOTOR COMPANY

101. 1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

        Lubricate each grommet with silicone grease.

        Material: motorcraft ® silicone brake caliper grease and dielectric compound / XG-3-A (ESE-M1C171-A)

     2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
     3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

     Courtesy of FORD MOTOR COMPANY

102. Fill and bleed the cooling system. refer to: Cooling system draining, vacuum filling and bleeding .
103. Recharge the a/c system. refer to: Air conditioning (a/c) system recovery, evacuation and charging .
104. Start and check the exhaust system for leaks.
105. Use the powertrain control module (PCM) misfire monitor profile correction routine in the diagnostic scan tool.
