Cylinder head: Assembly

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

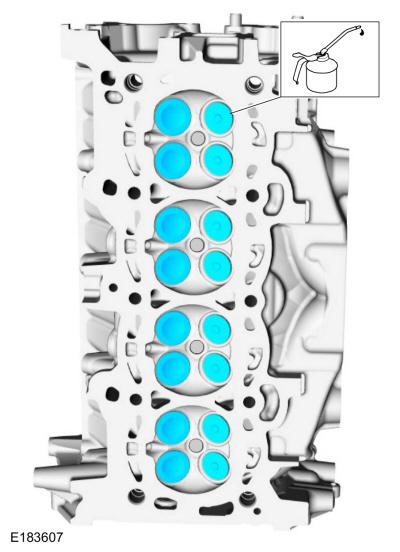

  1. NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with clean engine oil.

    Install the intake and exhaust valves.

    Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD227873Courtesy of FORD MOTOR COMPANY
  2. Using the special tool, install the valve seals. Use special service tool: 303-470 (T94P-6510-CH) installer, valve stem oil seal.

    Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD227874Courtesy of FORD MOTOR COMPANY
  3. NOTE: The intake and exhaust valve springs appear similar but are different parts and are not interchangeable. If the springs are to be reused they must be installed in their original location.
    NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets. Check the seating of the valve collet.

    Using the special tools, install the valve spring, valve spring retainer and the valve collet. Use special service tool: 303-300 (T87C-6565-A) set, valve spring compressor.303-350 (T89P-6565-A) compressor, valve spring., 303-472 (T94P-6565-AH) adapter, valve spring compressor. 303-1249 valve spring compressor.

    Material: motorcraft ® multi-purpose grease spray / XL-5-A (ESB-M1C93-B)

    GFD227867Courtesy of FORD MOTOR COMPANY
  4. NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

    Install the spark plugs.

    Torque: 106 lb.in (12 nm)

    GFD227866Courtesy of FORD MOTOR COMPANY
  5. NOTE: Do not use compressed air or the fuel injector brush to clean the tip of the fuel injectors. Failure to follow this instruction may result in damage to the fuel injectors.
    NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

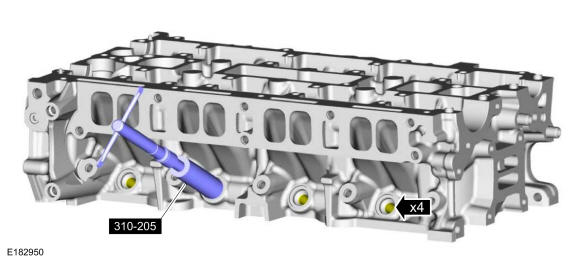

    Using the special tool, clean the fuel injector bores. Use special service tool: 310-205 fuel injector brush.

    GFD227875Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

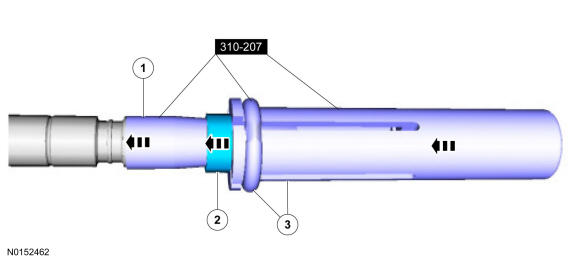

    1. Install special service tool: 310-207 installer, fuel injector seal assembly.
    2. NOTE: Once the Teflon ® seal is installed on the Teflon ® seal guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon ® seal.

      Make sure that new lower fuel injector Teflon ® seals are installed. Use special service tool: 310-207 installer, fuel injector seal assembly.

    3. Using the pusher tool, slide the Teflon ® seals off of the Teflon ® seal guide and into the groove on the fuel injectors.

    GFD227876Courtesy of FORD MOTOR COMPANY
  7. NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon ® seal expansion.
    NOTE: Make sure the Teflon ® seal is fully seated in the groove on the fuel injector before sizing the Teflon ® seal.

    1. Some massaging of the Teflon ® seal with your fingers before the Teflon ® seal sizer tool is installed will aid in installing the Teflon ® seal sizer tool.
    2. Position the Teflon ® seal sizer tool with the larger opening towards the Teflon ® seal. Push while turning the Teflon ® seal sizer tool 180 degrees. Use special service tool: 303-1567 sizer, Teflon seal.
    3. Once the Teflon ® seal sizer tool is installed, check and make sure the Teflon ® seal is in the sizing portion of the Teflon ® seal sizer tool. After one minute, turn the Teflon ® seal sizer tool back 180 degrees and remove.

    GFD227877Courtesy of FORD MOTOR COMPANY
  8. NOTE: Use fuel injector o-ring seals that are made of special fuel-resistant material. The use of ordinary o-ring seals may cause the fuel system to leak. Do not reuse the o-ring seals.
    NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

    1. Install the fuel injector seal.
    2. Lubricate with clean engine oil and install the fuel injector o-ring seal.

      Material: motorcraft ® SAE 5w-30 synthetic blend motor oil / XO-5W30-QSP (WSS-M2C946-A)

    3. Install the fuel injector clip.

    GFD227878Courtesy of FORD MOTOR COMPANY
  9. NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.
    NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

    Install the fuel injectors in the fuel rail.

    GFD227879Courtesy of FORD MOTOR COMPANY
  10. NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

    • NOTE: No sudden impact force is allowed.

      Press the fuel rail down into the cylinder head injector bores by hand, then install and hand start fuel rail bolts 3 and 4.

    • Release the force before tightening.

    • Install the remaining fuel rail bolts. Tighten all of the fuel rail bolts in the sequence shown and in the following 5 stages.

      Torque

      Stage 1: 89 lb.in (10 nm)

      Stage 2: release the torque to : 0 lb.in (0 nm)

      Stage 3: wait 5s

      Stage 4: 124 lb.in (14 nm)

      Stage 5: 30 °

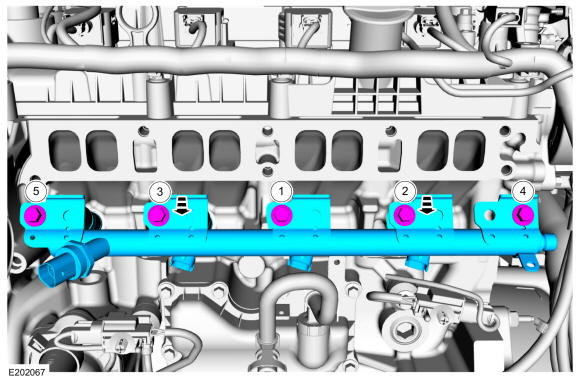

    Fig 1: Fuel Rail Tightening Sequence
    GFD227880Courtesy of FORD MOTOR COMPANY
  11. Install a new CHT sensor.

    Torque: 97 lb.in (11 nm)

    GFD227881Courtesy of FORD MOTOR COMPANY
  12. NOTE: Replace gasket if damaged.

    Inspect and if necessary, replace the coolant outlet gasket.

    GFD227882Courtesy of FORD MOTOR COMPANY
  13. Install the coolant outlet and the bolts.

    Torque: 89 lb.in (10 nm)

    GFD227858Courtesy of FORD MOTOR COMPANY
  14. Install the engine lift eyes and the bolts.

    Torque:

    Stage 1: 33 lb.ft (45 nm)

    Stage 2: 30 °

GFD227857Courtesy of FORD MOTOR COMPANY
