Rear Subframe: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

All vehicles

Refer to: Wheel and Tire .
On both sides. Refer to: Rear Stabilizer Bar Link .
On both sides. Refer to: Spring .

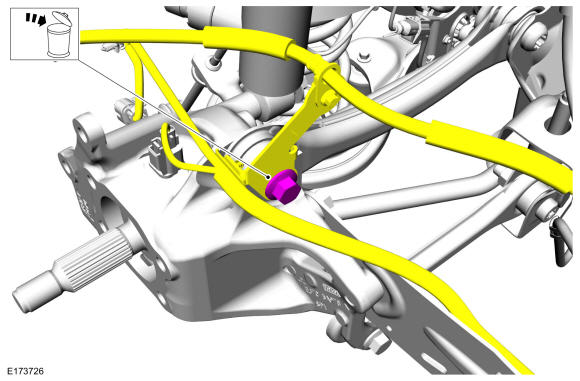

On both sides.

Courtesy of FORD MOTOR COMPANY

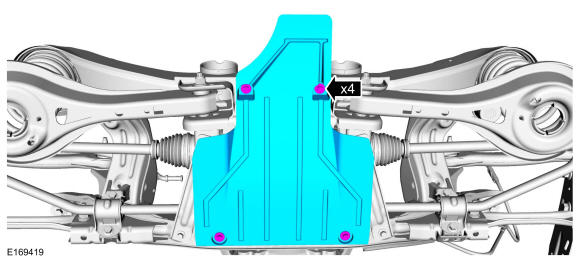

On both sides.

Courtesy of FORD MOTOR COMPANY

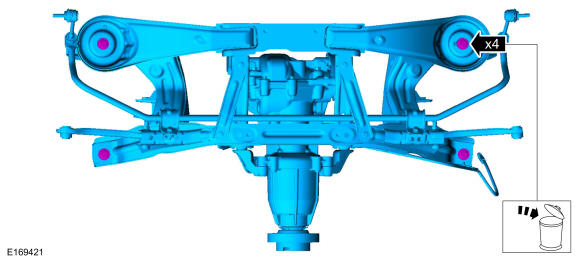

Courtesy of FORD MOTOR COMPANY

All wheel drive (AWD) vehicles
Refer to: Rear Driveshaft .
On both sides. Refer to: Rear Halfshaft .

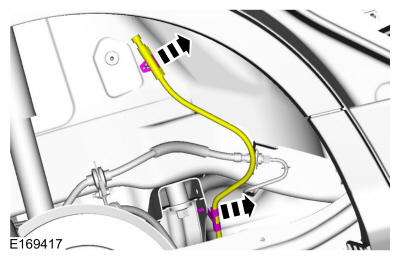

NOTE: Located in RR wheel opening.

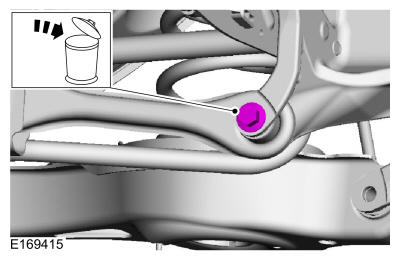

Courtesy of FORD MOTOR COMPANY
All vehicles

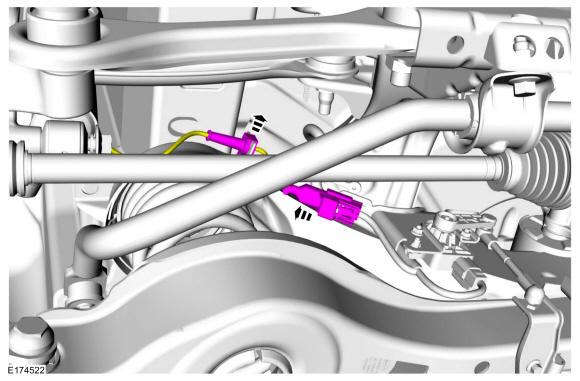

Courtesy of FORD MOTOR COMPANY
If equipped.

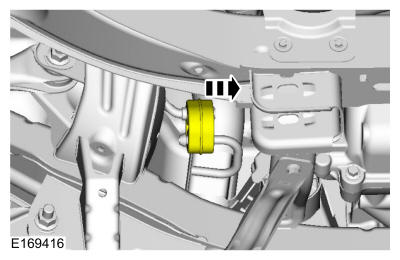

Courtesy of FORD MOTOR COMPANY
NOTE: AWD shown FWD similar.

If equipped.

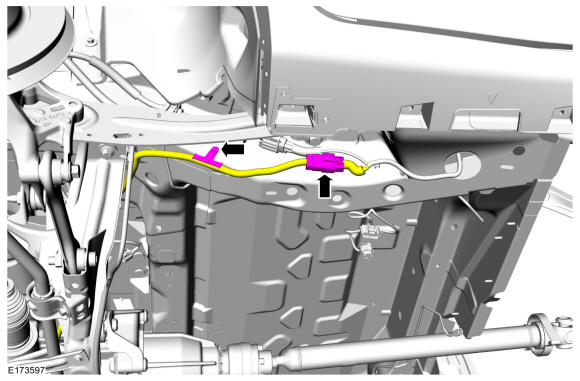

Courtesy of FORD MOTOR COMPANY
Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

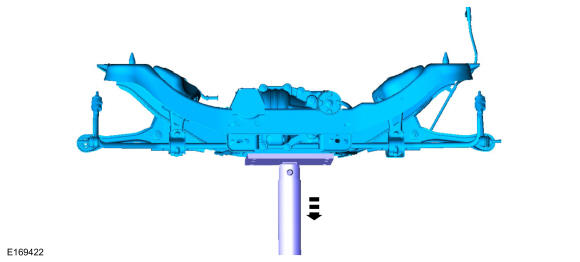

Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
