Front Subframe: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Disconnect the battery ground cable anytime the steering gear is being serviced or damage to the steering gear internal power relay may occur resulting in steering gear replacement.

    Refer to: Battery Disconnect and Connect .

  2. Steering wheel in straight ahead position.
    GFD226983Courtesy of FORD MOTOR COMPANY
  3. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    GFD226987Courtesy of FORD MOTOR COMPANY
  4. Refer to: Wheel and Tire .
  5. If equipped.
    GFD226969Courtesy of FORD MOTOR COMPANY
  6. If equipped. On both sides.
    GFD231005Courtesy of FORD MOTOR COMPANY
  7. NOTE: The front suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

    If equipped. On both sides.

    GFD226989Courtesy of FORD MOTOR COMPANY
  8. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

    On both sides.

    GFD226990Courtesy of FORD MOTOR COMPANY
  9. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
    NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

    On both sides. Use the General Equipment: Tie Rod End Remover

    GFD226991Courtesy of FORD MOTOR COMPANY
  10. NOTE: Do not use a prying device to open the slot in the knuckle to separate the lower ball joint from the knuckle assembly. Damage to the knuckle assembly may occur.
    NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    On both sides. Use the General Equipment: Tie Rod End Remover

    GFD227037Courtesy of FORD MOTOR COMPANY
  11. NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the exhaust flexible pipe.
    GFD226992Courtesy of FORD MOTOR COMPANY
  12. GFD226993Courtesy of FORD MOTOR COMPANY
  13. GFD228996Courtesy of FORD MOTOR COMPANY
  14. GFD226995Courtesy of FORD MOTOR COMPANY
  15. NOTE: Index mark the subframe positioning for reference during the installation procedure.

    Use the General Equipment: Transmission Jack

    GFD226970Courtesy of FORD MOTOR COMPANY
  16. GFD226996Courtesy of FORD MOTOR COMPANY
  17. GFD231006Courtesy of FORD MOTOR COMPANY
  18. GFD231007Courtesy of FORD MOTOR COMPANY

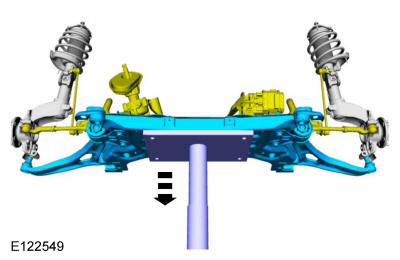

  19. Use the General Equipment: Transmission Jack
    GFD231008Courtesy of FORD MOTOR COMPANY
