Brake Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake master cylinder. Refer to: Brake Master Cylinder .

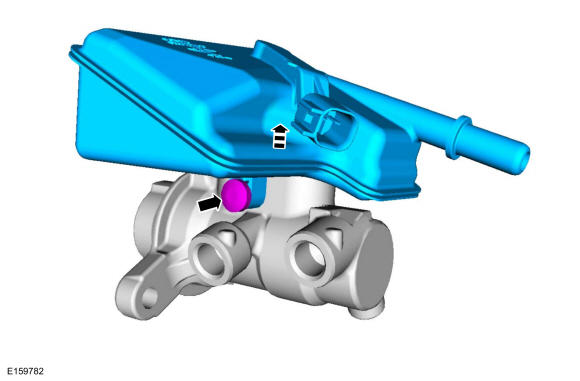

  2. Remove the pin and the brake fluid reservoir.
    GFD227315Courtesy of FORD MOTOR COMPANY
  3. Remove and discard the brake fluid reservoir seals.
GFD227316Courtesy of FORD MOTOR COMPANY
