Section 1225 (Side And Rear Vision System)
>>
Description And Operation
>>
Blind Spot Information System - Component Location
>>

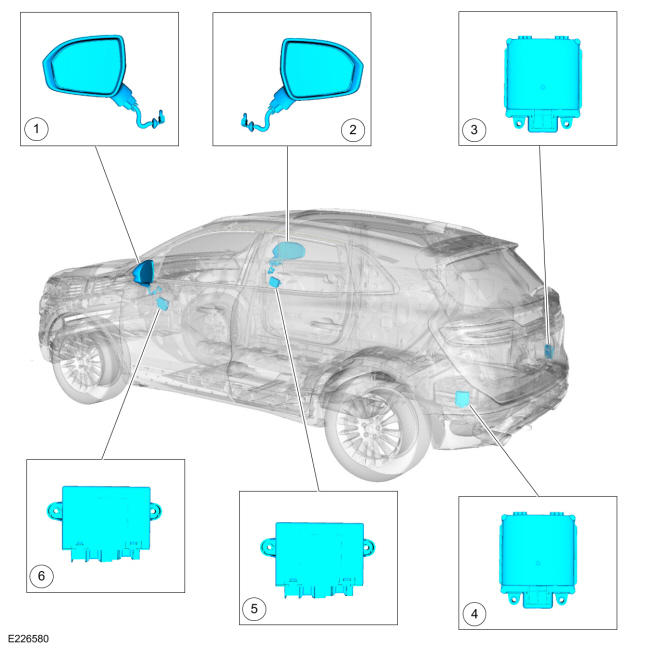

Component Location - BLIS ®/ CTA
Component Location - BLIS ®/ CTA
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
LH exterior mirror
2
RH exterior mirror
3
SODR
4
SODL
5
PDM
6
DDM
