Rear Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Wheel and Tire .
  2. Refer to: Rear Quarter Panel Moulding .

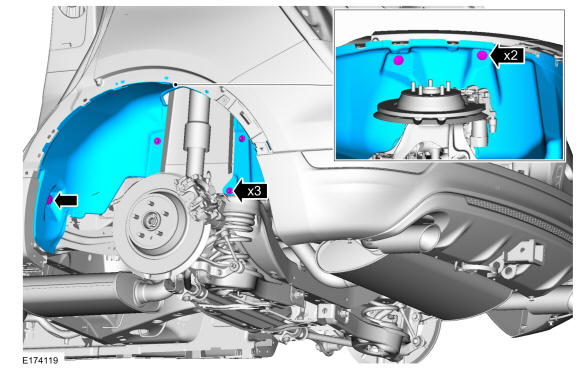

  3. NOTE: On both sides.

    • Remove 3 nuts.

    • Remove 3 pin-type retainers and the rear inner quarter panel liner.

    GFD230574Courtesy of FORD MOTOR COMPANY

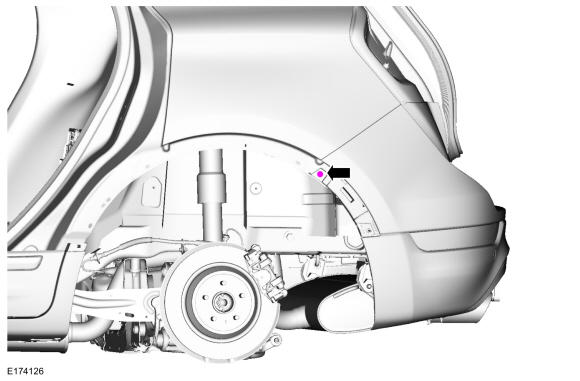

  4. NOTE: On both sides.

    Remove the bolt.

    GFD230575Courtesy of FORD MOTOR COMPANY

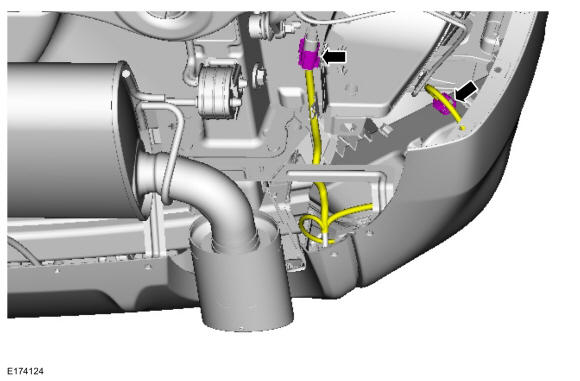

  5. NOTE: On both sides.

    Disconnect the 2 electrical connectors.

    GFD230576Courtesy of FORD MOTOR COMPANY

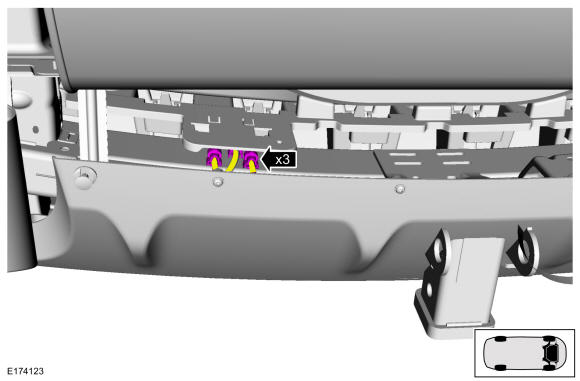

  6. Disconnect 3 electrical connectors.
    GFD230577Courtesy of FORD MOTOR COMPANY

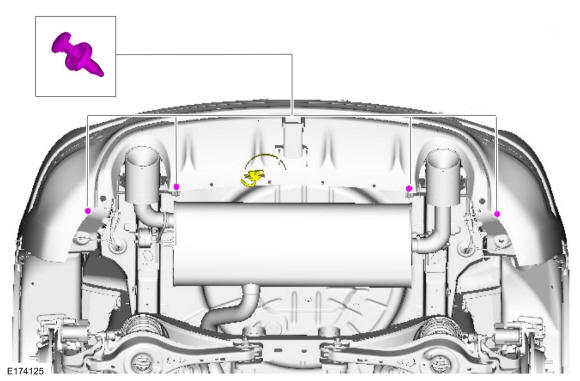

  7. Remove 4 push pins.
    GFD230578Courtesy of FORD MOTOR COMPANY

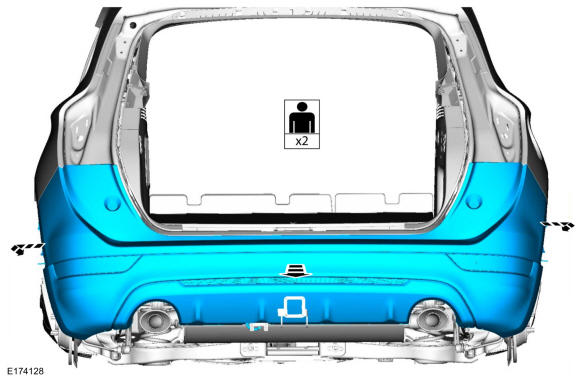

  8. Remove the rear bumper cover.
    GFD230579Courtesy of FORD MOTOR COMPANY

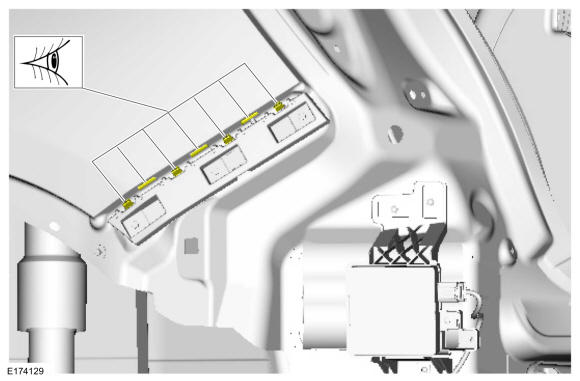

  9. NOTE: On both sides.

    Inspect the rear bumper cover brackets for damage.

    GFD230580Courtesy of FORD MOTOR COMPANY

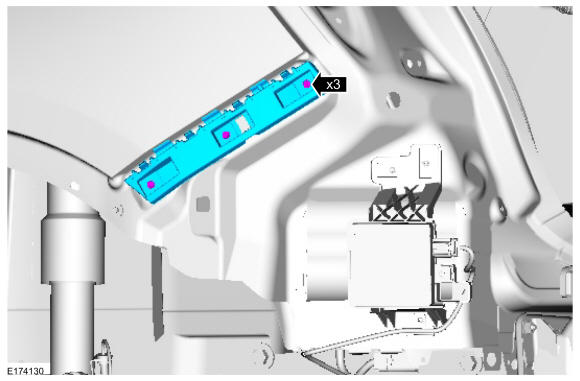

  10. NOTE: On both sides.
    NOTE: If required.

    Remove 3 screws and the rear bumper cover bracket.

GFD230581Courtesy of FORD MOTOR COMPANY
