Rear Bumper - Vehicles With: Trailer Tow: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Rear Bumper Cover .
    1. Remove the 4 nuts.

      Torque: 17 lb.ft (22.5 Nm)

    2. Remove the 4 bolts.

      Torque: 66 lb.ft (90 Nm)

    3. Remove the rear bumper.

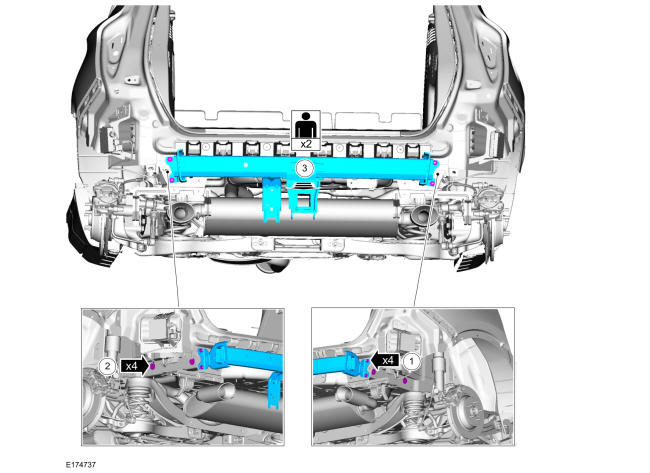

GFD230573Courtesy of FORD MOTOR COMPANY
