Front Bumper: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the headlamp assemblies. Refer to: Headlamp Assembly .
Remove the active grille shutter. Refer to: Active Grille Shutter .
Remove the CCM and bracket. Refer to: Cruise Control Module (CCM) .

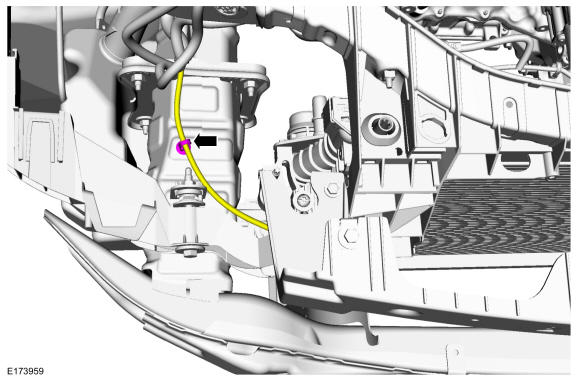

Remove the screw.

Courtesy of FORD MOTOR COMPANY

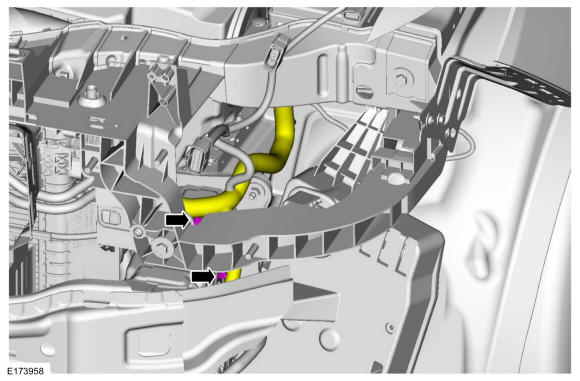

Separate the wiring harness.

Courtesy of FORD MOTOR COMPANY
Separate the wiring harness.

Courtesy of FORD MOTOR COMPANY

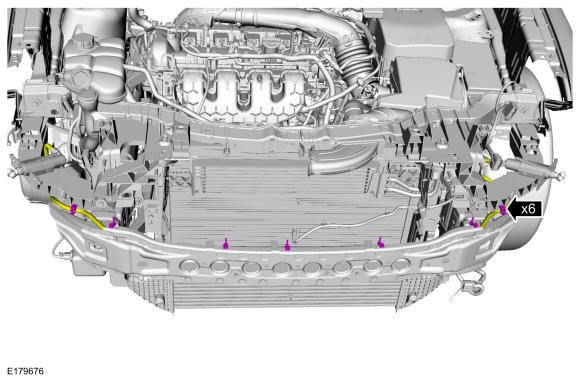

If equipped, separate the washer hose retainers from the front bumper.

Courtesy of FORD MOTOR COMPANY

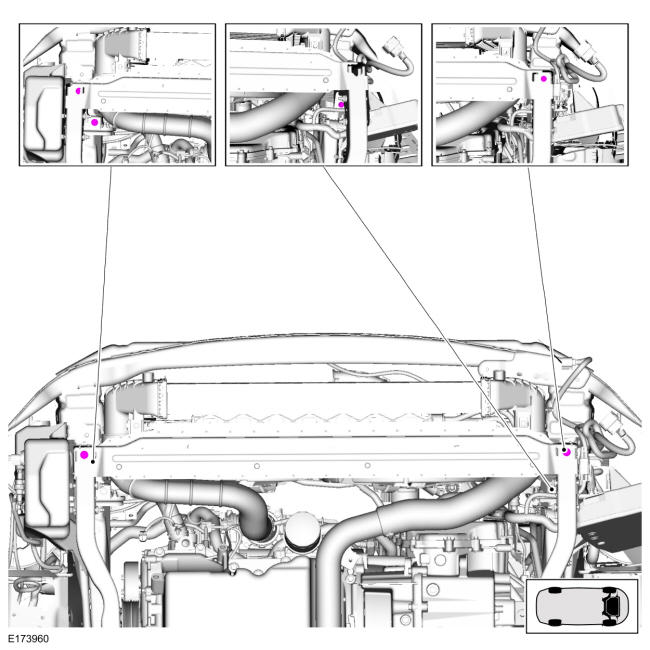

Remove the 4 bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

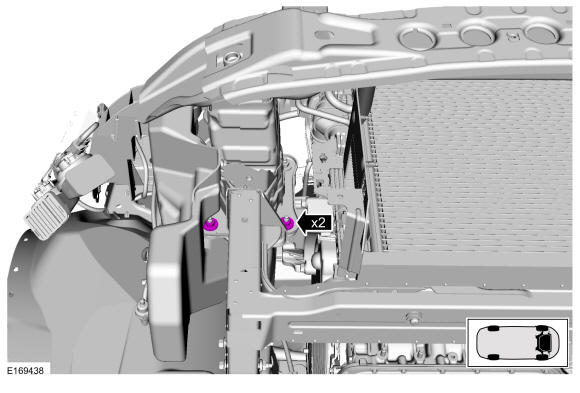

Remove 2 nuts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

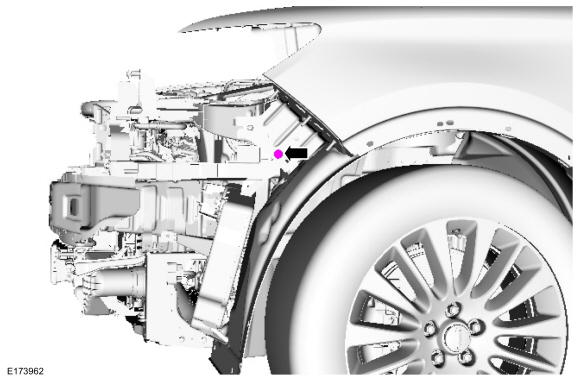

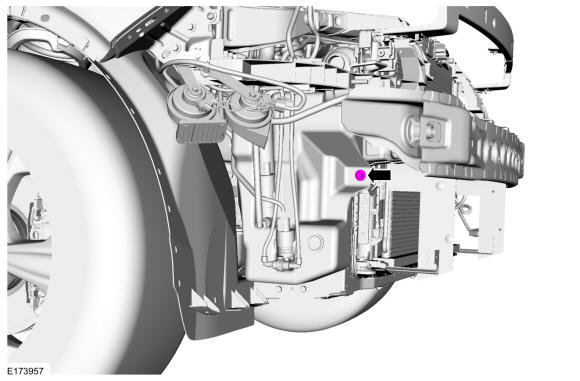

Remove the bolt.

Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

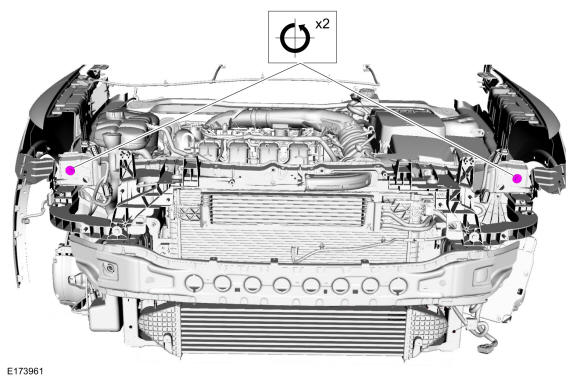

Loosen the 2 bolts.
Torque: 17 lb.ft (22.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

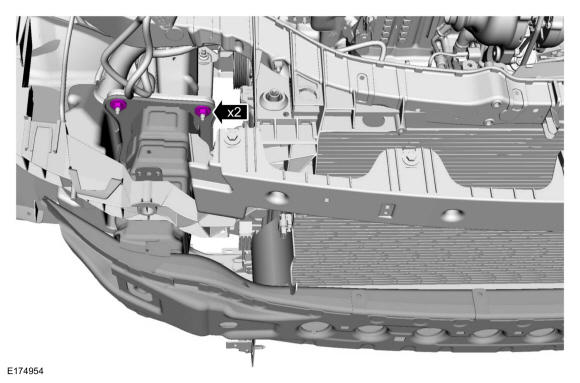

Remove the 2 nuts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

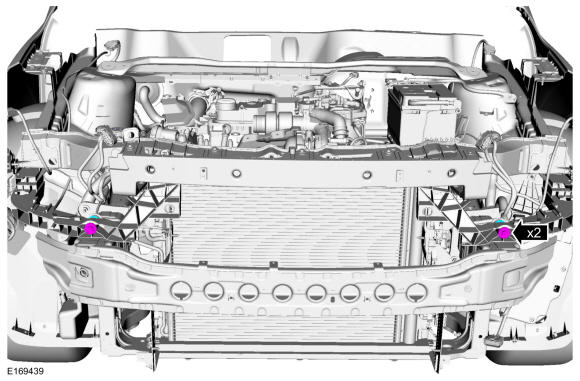

Remove the adjuster assemblies.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

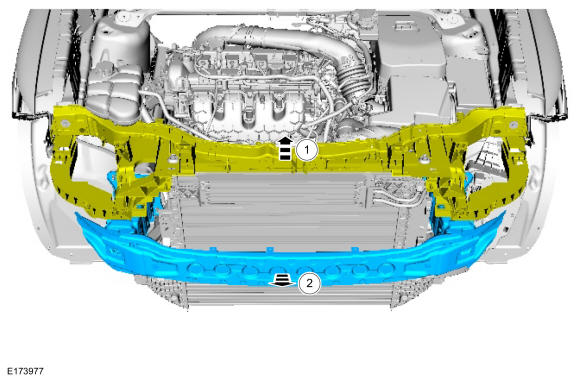

1. Position the front support bracket up.
2. Remove the front bumper.

Courtesy of FORD MOTOR COMPANY
