Front Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

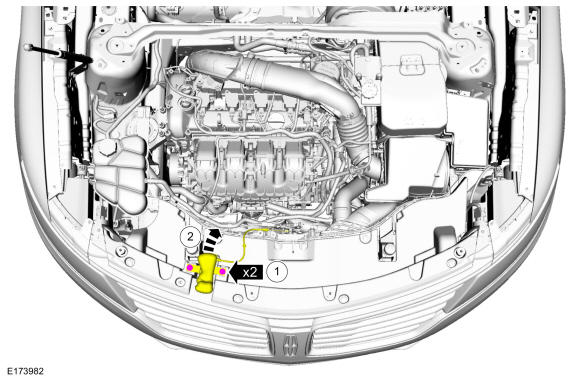

    1. Remove the 2 screws.
    2. Position the secondary hood latch release aside.
    GFD230564Courtesy of FORD MOTOR COMPANY

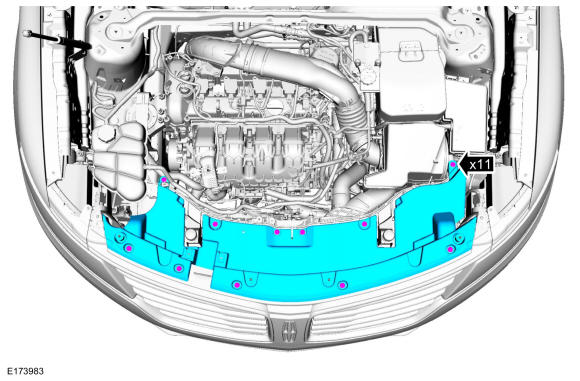

  2. Remove 11 pushpins and the radiator sight shield.
    GFD230565Courtesy of FORD MOTOR COMPANY
  3. Remove the front wheels and tires. Refer to: Wheel and Tire .
  4. Remove the front fender mouldings. Refer to: Front Fender Moulding .
  5. Remove the front fender splash shields. Refer to: Fender Splash Shield .

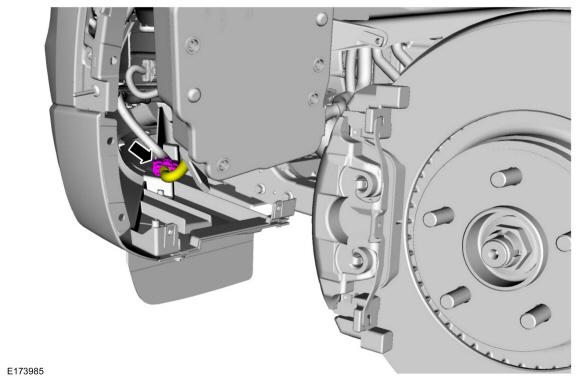

  6. Disconnect the electrical connector.
    GFD230566Courtesy of FORD MOTOR COMPANY

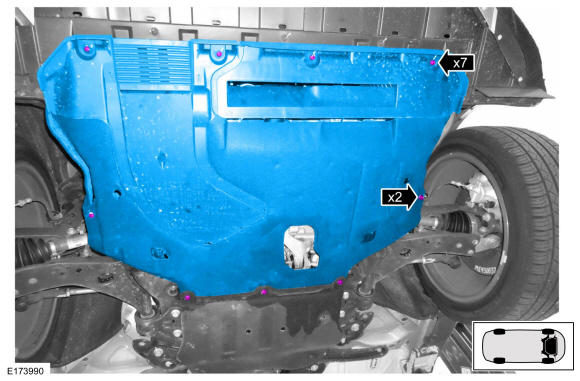

    • Remove the 2 bolts.

    • Remove the 7 screws and the under engine closeout panel.

    GFD230567Courtesy of FORD MOTOR COMPANY

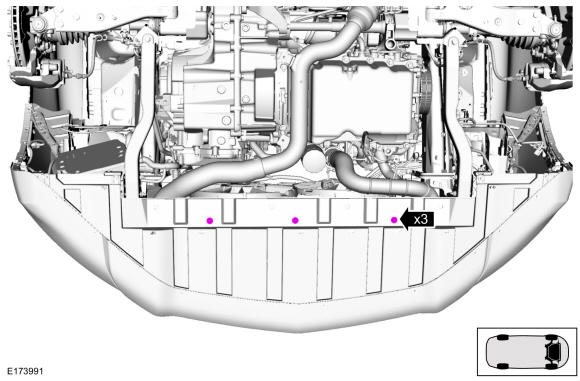

  8. Remove the 3 screws.
    GFD230568Courtesy of FORD MOTOR COMPANY

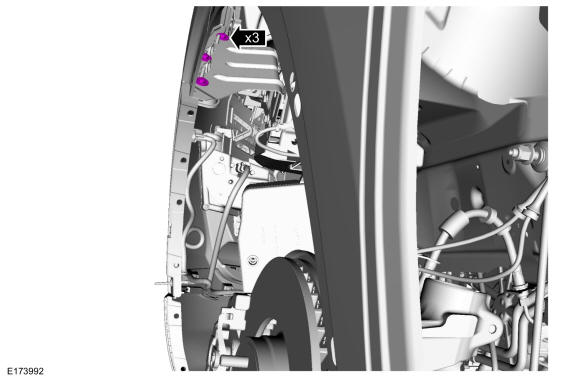

  9. NOTE: On both sides.

    Remove the 3 front bumper cover-to fender bolts.

    Torque: 71 lb.in (8 Nm)

    GFD230569Courtesy of FORD MOTOR COMPANY

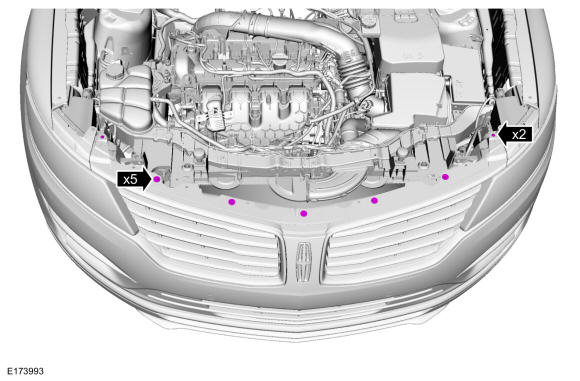

    • Remove the 2 screws.

    • Remove the 5 bolts.

    GFD230570Courtesy of FORD MOTOR COMPANY

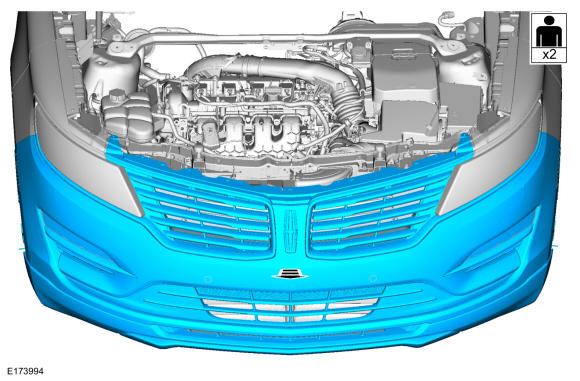

  11. Remove the front bumper cover.
GFD230571Courtesy of FORD MOTOR COMPANY
