Rear Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Refer to: Rear Bumper Cover .

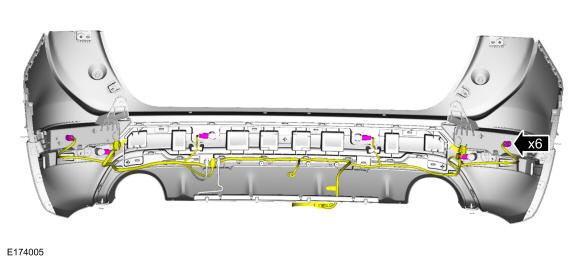

  2. Disconnect and remove the rear bumper cover harness.
    GFD230596Courtesy of FORD MOTOR COMPANY

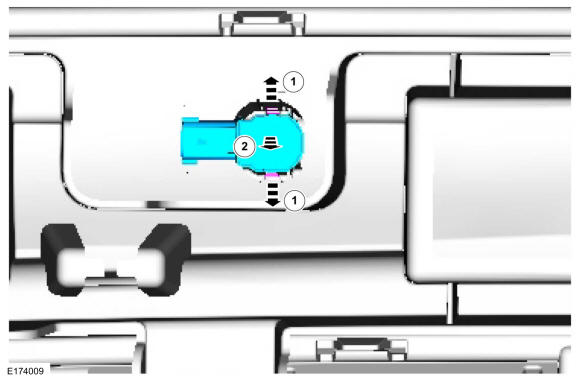

  3. NOTE: In four locations.

    1. Release 2 tabs.
    2. Remove the rear park aid sensor.

    GFD230597Courtesy of FORD MOTOR COMPANY

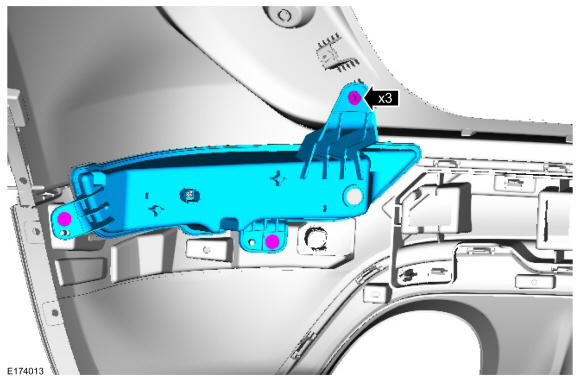

  4. NOTE: On both sides.

    Remove 3 screws and the rear marker lamp.

    GFD230598Courtesy of FORD MOTOR COMPANY

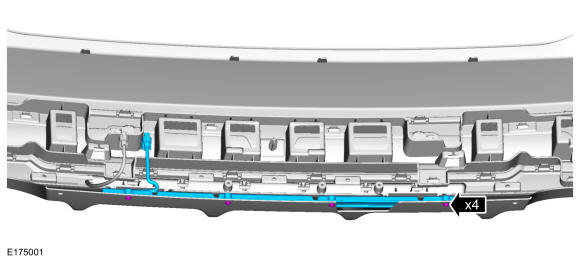

    Vehicles without trailer tow

  5. Remove 4 screws and the lower bumper cover bracket.
    GFD230599Courtesy of FORD MOTOR COMPANY

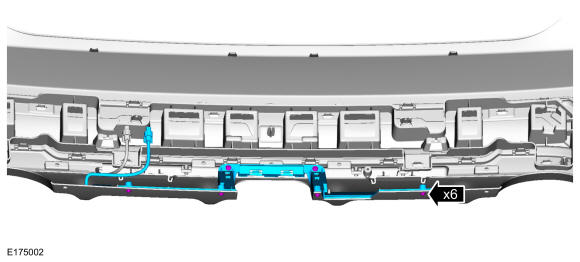

    Vehicles with trailer tow

  6. Remove 6 screws and the lower bumper cover bracket.
    GFD230600Courtesy of FORD MOTOR COMPANY

    All vehicles

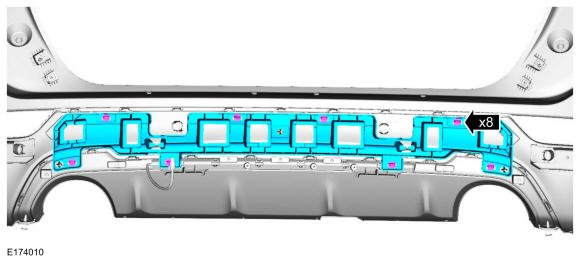

  7. Release 8 tabs and remove the rear bumper cover reinforcement.
    GFD230601Courtesy of FORD MOTOR COMPANY

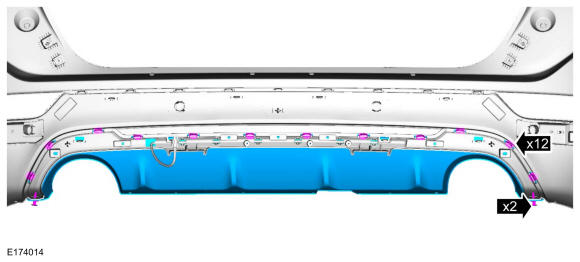

    • Remove two pushpins.

    • Release 12 tabs and remove the lower bumper cover.

    GFD230602Courtesy of FORD MOTOR COMPANY

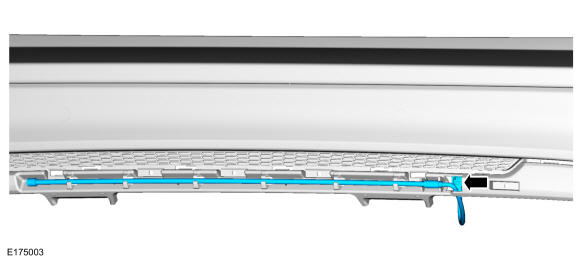

  9. NOTE: If equipped.

    Remove the hands free liftgate sensor.

    GFD230603Courtesy of FORD MOTOR COMPANY

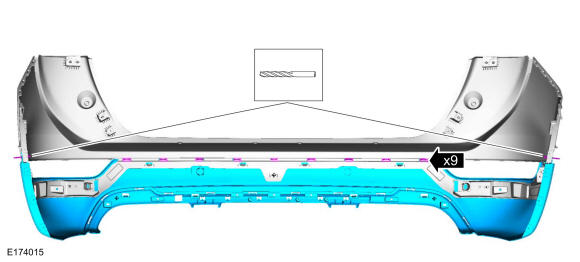

    • Drill out two rivets.

    • Release 9 tabs and remove the center bumper cover.

GFD230604Courtesy of FORD MOTOR COMPANY
