Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover. Refer to: Front Bumper Cover .

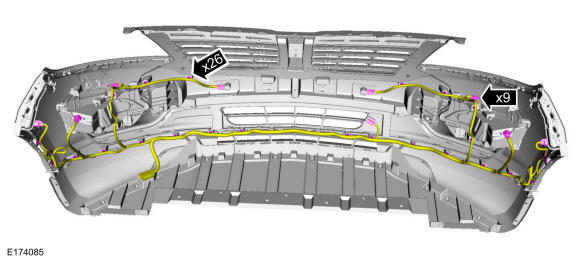

- Disconnect 9 electrical connectors.
- Separate 26 wiring harness retainers.
- Remove the front bumper cover wiring harness.
Courtesy of FORD MOTOR COMPANY

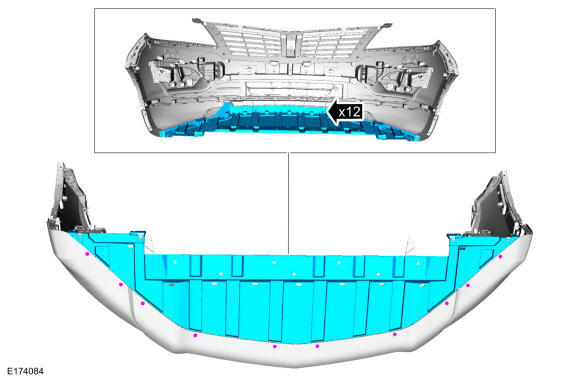

Remove 12 screws and the closeout panel.

Courtesy of FORD MOTOR COMPANY

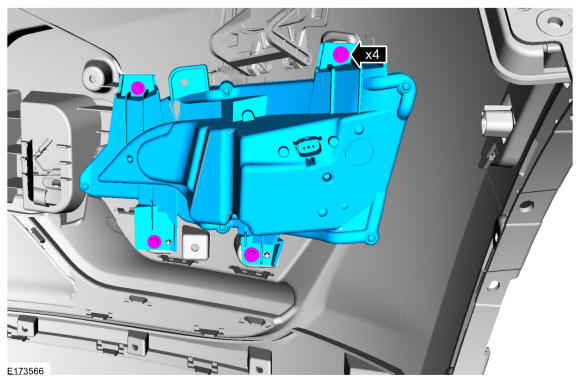

NOTE: On both sides.

Remove 4 screws and the daytime running lamp assemblies.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

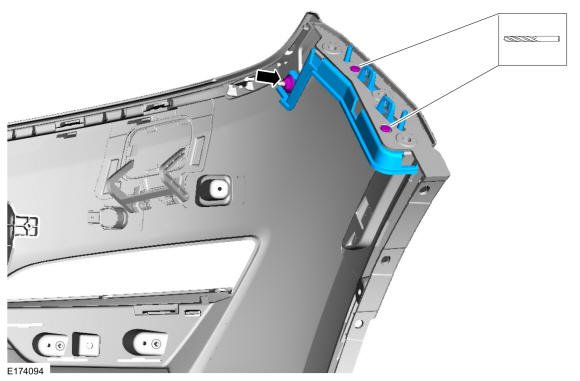

- Drill out 2 rivets.
- Remove 1 nut.
- Remove the front bumper cover reinforcements.
Courtesy of FORD MOTOR COMPANY

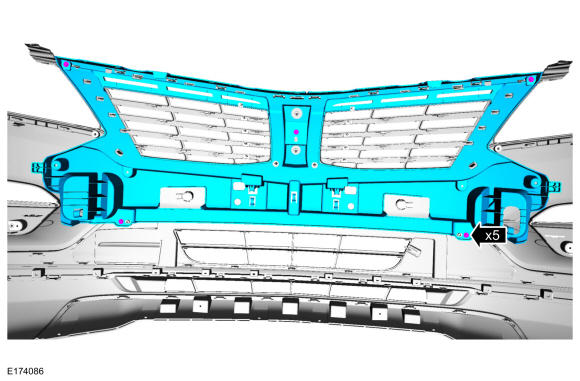

Remove 5 screws and the grille opening panel reinforcement.

Courtesy of FORD MOTOR COMPANY

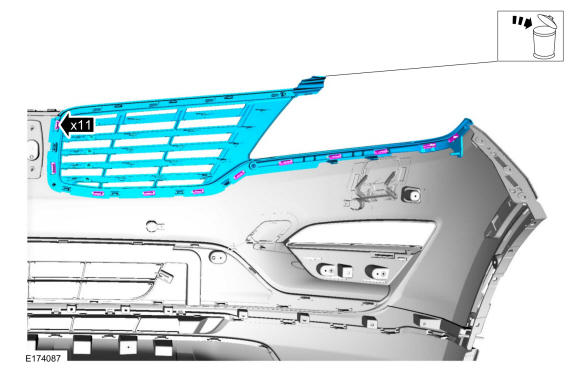

NOTE: On both sides.

Release the tabs, remove and discard the upper radiator grille panel.

Courtesy of FORD MOTOR COMPANY

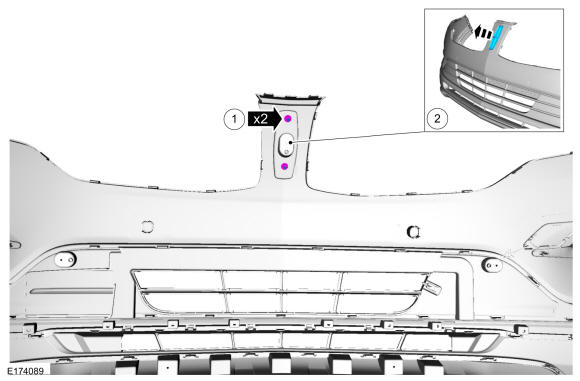

1. Remove the two nuts.
2. Remove the emblem.
Courtesy of FORD MOTOR COMPANY

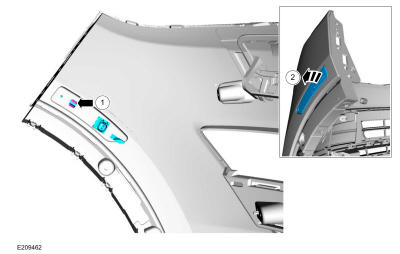

NOTE: On both sides.

Remove the side marker lamp.
1. Release the tabs.
2. Position the top of the marker lamp out.
Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

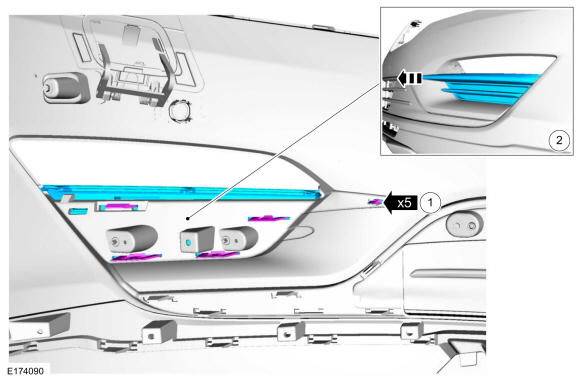

1. Release 5 tabs.
2. Remove the marker lamp insert.
Courtesy of FORD MOTOR COMPANY

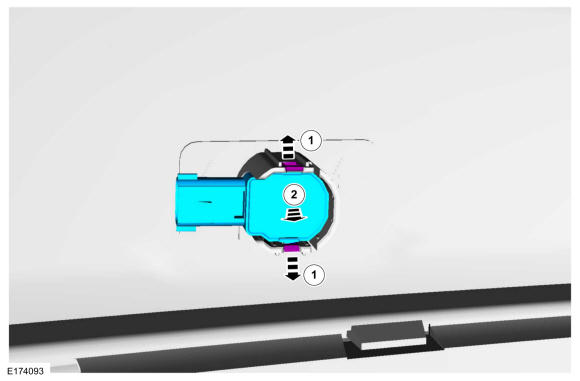

NOTE: In 4 locations.
1. Release two tabs.
2. Remove the front park aid sensor.
Courtesy of FORD MOTOR COMPANY

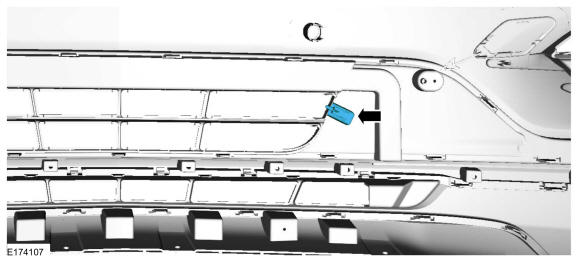

Remove the ambient air temperature sensor.

Courtesy of FORD MOTOR COMPANY

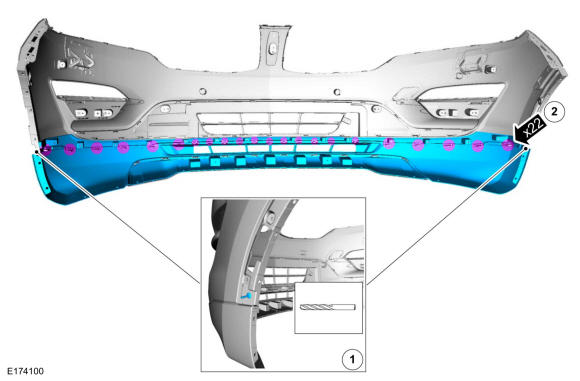

1. Drill out 2 rivets.
2. Release 22 tabs and remove the lower bumper cover.
Courtesy of FORD MOTOR COMPANY

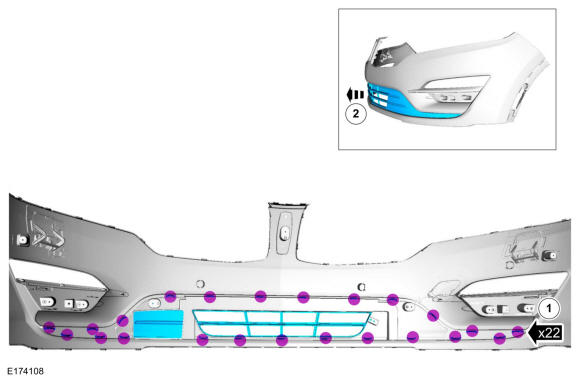

1. Release 22 tabs.
2. Remove the lower radiator grille panel.
Courtesy of FORD MOTOR COMPANY

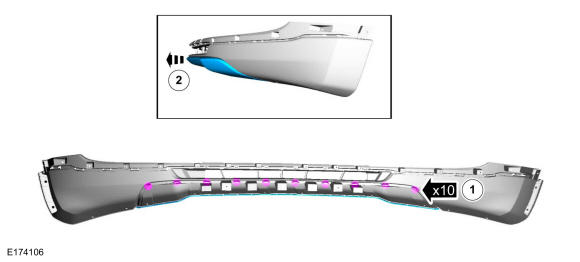

1. Release 10 tabs.
2. Remove the lower bumper cover insert.

Courtesy of FORD MOTOR COMPANY
