Front Suspension Height Sensor: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Jacking and Lifting - Overview .
-

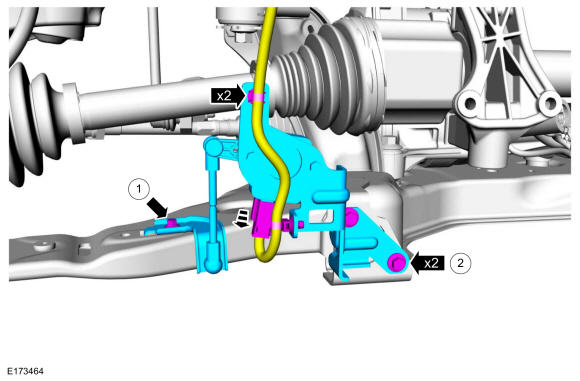

NOTE: Note the position of the components before removal.NOTE: RH height sensor assembly shown, LH similar.
Torque:
1: 97 lb.in (11 Nm)
2: 18 lb.ft (25 Nm)
