Vehicle Dynamic Suspension - Component Location

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

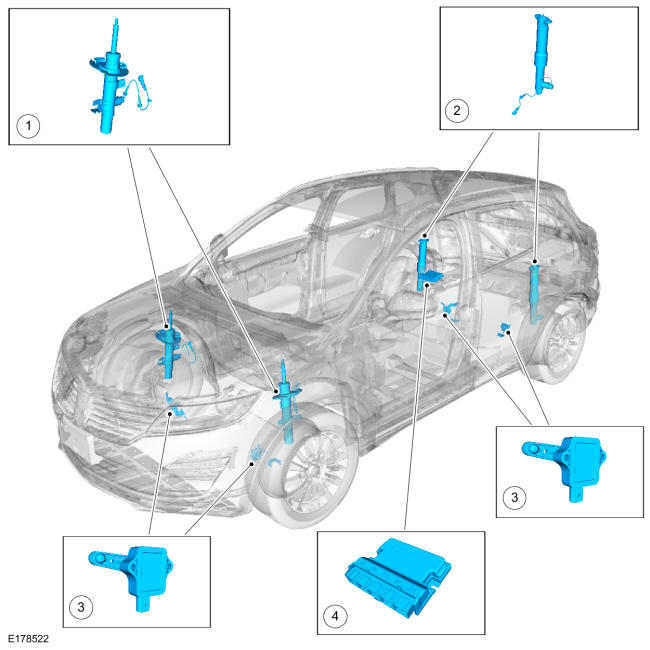

GFD227149Courtesy of FORD MOTOR COMPANY
Item Description
1 Strut (2 required)
2 Shock (2 required)
3 Height sensor (4 required)
4 VDM
