Cooler Bypass Valve: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

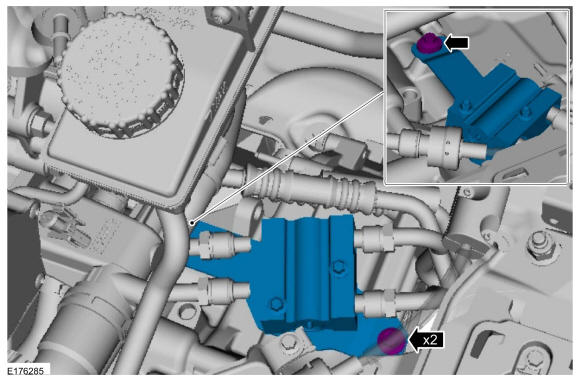

- Install the cooler bypass valve and the bolts.
Torque: 18 lb.ft (25 Nm)
-
NOTE: Align the marks made on the tubes during removal with the corners of the cooler bypass valve.

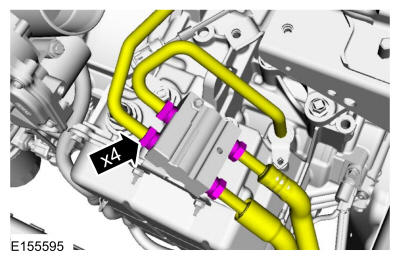

Connect the cooler bypass valve tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)
- Install the battery tray. Refer to: Battery Tray .
- Check and adjust the transmission fluid level as necessary. Refer to: Transmission Fluid Level Check .
