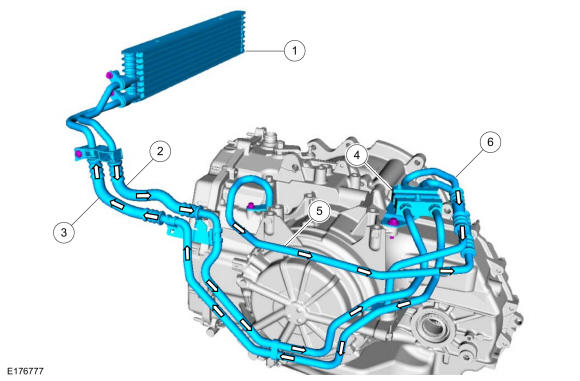

Component Location
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
7A095 |
Transmission fluid cooler |
| 2 |
7R081 |
Transmission fluid cooler outlet tube |
| 3 |
7R081 |
Transmission fluid cooler inlet tube |
| 4 |
7H322 |
Cooler bypass valve |
| 5 |
7R081 |
Transmission mounted fluid cooler inlet tube |
| 6 |
7R081 |
Transmission mounted fluid cooler outlet tube |
