High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH front wheel and tire. Refer to: Wheel and Tire .

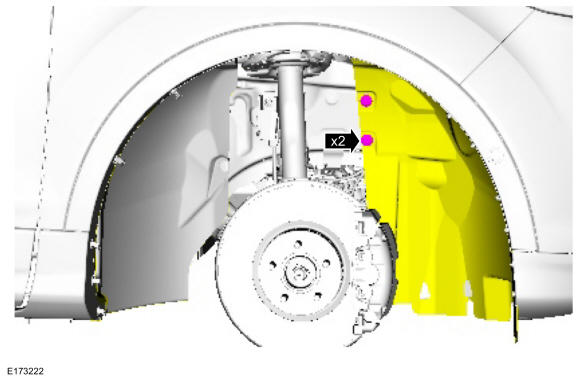

  2. GFD228440Courtesy of FORD MOTOR COMPANY
  3. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.
    GFD228133Courtesy of FORD MOTOR COMPANY
  4. Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
    GFD228482Courtesy of FORD MOTOR COMPANY

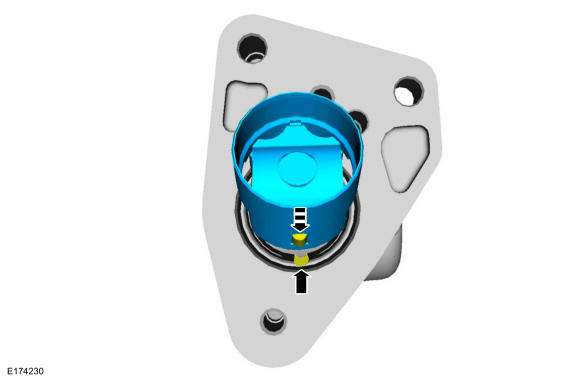

  5. GFD228483Courtesy of FORD MOTOR COMPANY
  6. Install a new high-pressure fuel pump O-ring seal.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

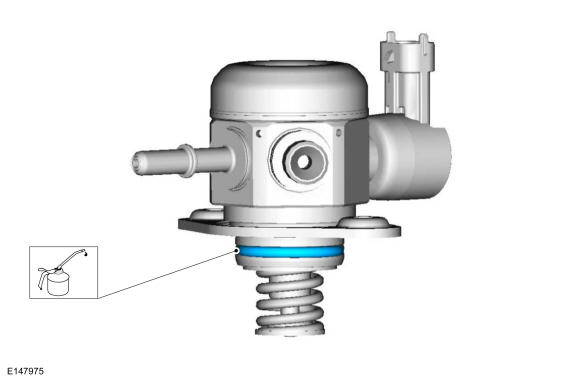

    GFD228442Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that 2 new high-pressure fuel pump bolts are installed.

    Install the high-pressure fuel pump and loosely install 2 new high-pressure fuel pump bolts, alternately tighten each high-pressure fuel pump bolt one complete revolution until seated. Tighten the 2 high-pressure fuel pump bolts in the following 2 stages.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 55 °

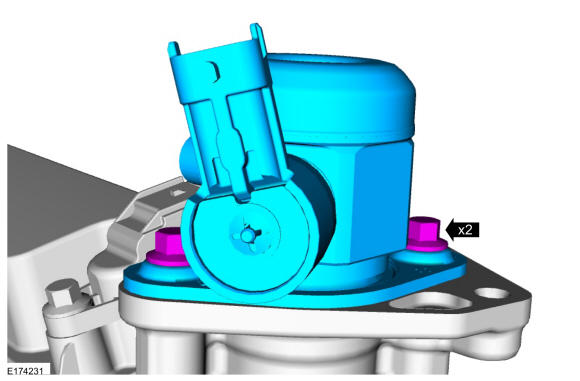

    GFD228484Courtesy of FORD MOTOR COMPANY
  8. Torque: 150 lb.in (17 Nm)
    GFD228479Courtesy of FORD MOTOR COMPANY
  9. GFD228440Courtesy of FORD MOTOR COMPANY
  10. Install the RH front wheel and tire. Refer to: Wheel and Tire .
  11. NOTE: Only tighten the 2 high pressure fuel tube flare nuts finger tight at this stage.
    NOTE: Only tighten the high pressure fuel tube bracket bolt and nut finger tight at this stage.

    1. NOTE: Make sure that a new high pressure fuel tube is installed.
    2. NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.
      G00468730Courtesy of FORD MOTOR COMPANY

      Torque:

      Stage 1: 62 lb.in (7 Nm)

      Stage 2: 133 lb.in (15 Nm)

      Stage 3: 30 °

    3. Torque: 89 lb.in (10 Nm)
    4. Torque: 150 lb.in (17 Nm)

    GFD228485Courtesy of FORD MOTOR COMPANY
  12. Refer to: Quick Release Coupling .

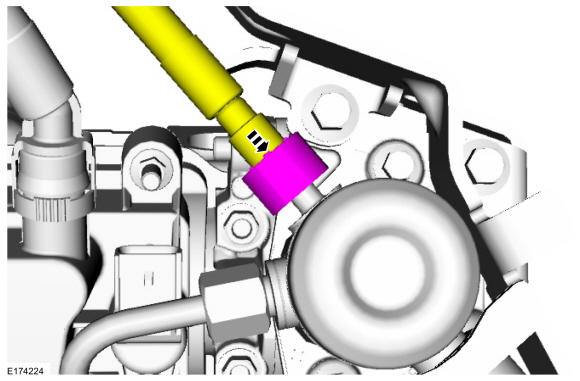

    GFD228486Courtesy of FORD MOTOR COMPANY
  13. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.
    GFD228476Courtesy of FORD MOTOR COMPANY
  14. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe
  15. Reconnect the battery. Refer to: Battery Disconnect and Connect .
  16. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    GFD227516Courtesy of FORD MOTOR COMPANY
