High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

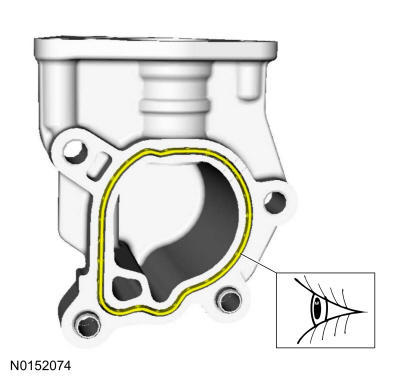

Make sure that the mating faces are clean and free of foreign material.
- Replace the high-pressure fuel pump drive unit gasket as necessary.

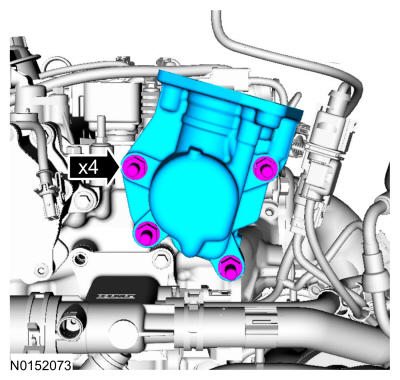

- Torque:
Stage 1: 133 lb.in (15 Nm)
Stage 2: 60 °

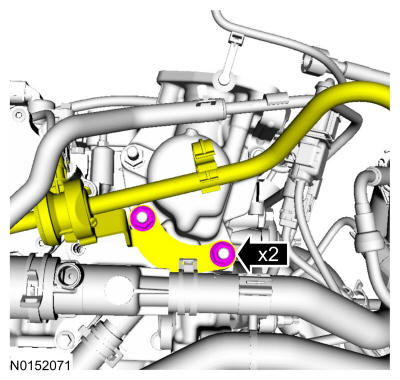

- Torque: 115 lb.in (13 Nm)

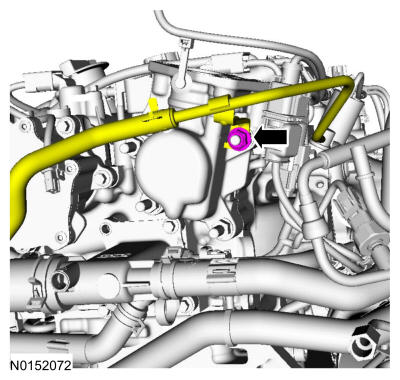

- Torque: 97 lb.in (11 Nm)
- Refer to: High-Pressure Fuel Pump .
