Fuel Pump Driver Module (FPDM): Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

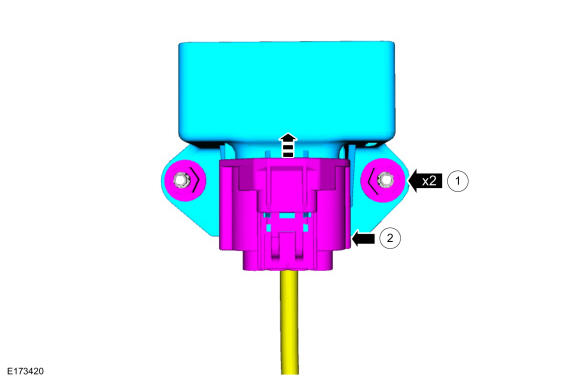

    1. Torque: 44 lb.in (5 Nm)
      GFD228455Courtesy of FORD MOTOR COMPANY
  2. GFD228456Courtesy of FORD MOTOR COMPANY
  3. NOTE:
    GFD228457Courtesy of FORD MOTOR COMPANY

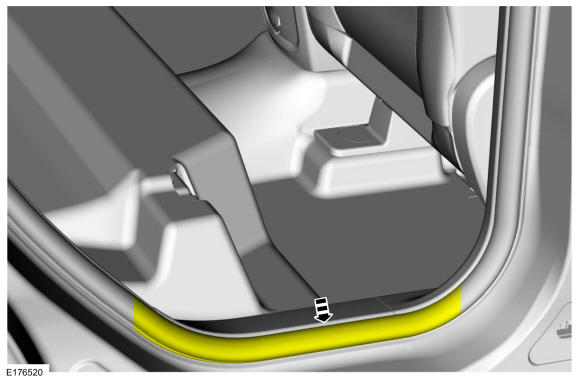

  4. GFD228458Courtesy of FORD MOTOR COMPANY
  5. Install the rear seat cushion. Refer to: Rear Seat Cushion .
