Roof Opening Panel Shield: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Roof Opening Panel Fixed Glass .
Refer to: Roof Opening Panel Frame .

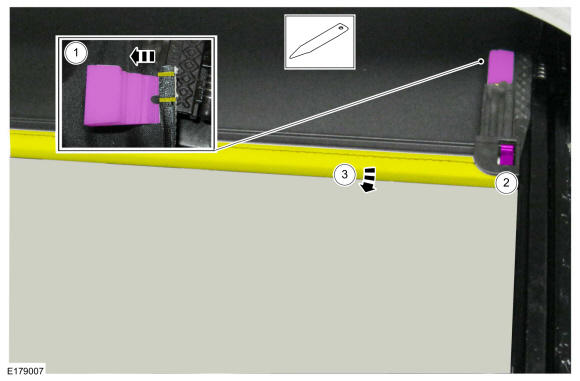

1. NOTE: Pay attention to the position of the clip in relation to the sewn threads of the fabric and to the guide rail for reference to install.

  Both sides. Use the General Equipment: Interior Trim Remover
2. Both sides.
3. NOTE: Count the number of turns when rolling the fabric front beam from the clips for reference to install (typically 2 folds).

  Both sides together.
Courtesy of FORD MOTOR COMPANY

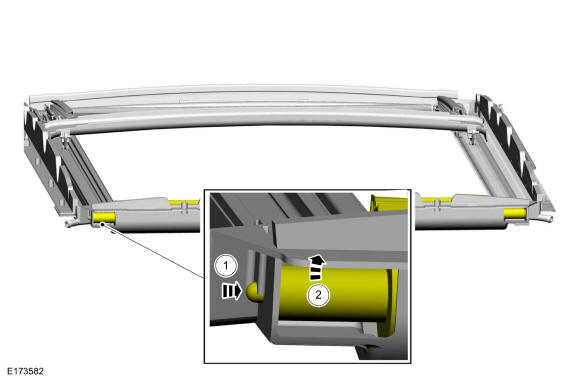

NOTE: Lift only enough to fully release the retaining ball from the frame.

Courtesy of FORD MOTOR COMPANY

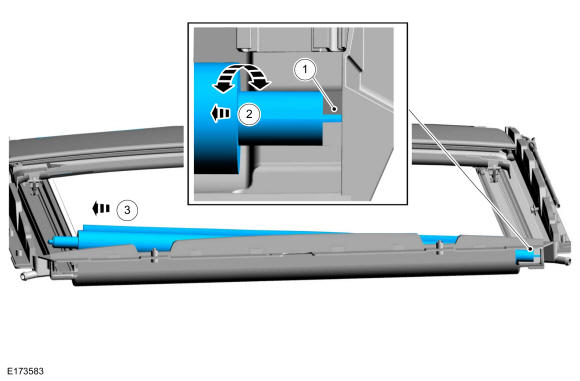

NOTE: Preform steps 1 and 2 together. Do not allow the shaft to pull out of the frame bracket until fully removing the shield in step 3.
1. NOTE: The shield/shaft tension locking action can be felt while performing steps 1 and 2.

  Hold the shaft in the frame bracket.
2. Gently twist and pull the assembly until the internal shield/shaft tension lock clicks into position.
3. NOTE: If the shield is to be reused, do not allow the shaft to be pushed into the assembly or pretension will be lost.

Courtesy of FORD MOTOR COMPANY
